Specifications
FCB-EX48C/EX48CP
Image sensor
1
/4 type IT CCD (EXview HAD)
Picture elements FCB-EX48C: Approx. 380K pixels
(768 (H) × 494 (V))
FCB-EX48CP: Approx. 440K pixels
(752 (H) × 582 (V))
Horizontal resolution
NTSC: 470 TV lines (WIDE end)
PAL: 460 TV lines (WIDE end)
Lens 18× zoom
F= 4.1 mm (WIDE) to 73.8 mm
(TELE), F1.4 to F3.0
Zoom movement speed
Optical WIDE/Optical TELE 2.1 s
Optical WIDE/Digital TELE 3.7 s
Digital WIDE/Digital TELE 1.7 s
∞ to Near 0.5 s
Digital zoom 12× (216× with optical zoom)
Angle of view (H)
48 degree (WIDE end) to 2.8 degree
(TELE end)
Min. working distance
290 mm (WIDE end), 800 mm
(TELE end)
Sync system Internal/External (V-Lock)
Min. illumination
0.7 lx (F1.4,
1
/60 s (NTSC) or
1
/50 s
(PAL))
0.1 lx (F1.4,
1
/4 s (NTSC) or
1
/3 s
(PAL))
Recommended illumination
100 to 100,000 lx
S/N ratio 50 dB or more
Back light compensation
ON/OFF
Electronic shutter speed
FCB-EX48C:
1
/1 to
1
/10,000 s
(22 steps)
FCB-EX48CP:
1
/1 to
1
/10,000 s
(22 steps)
White balance AUTO, ATW, Indoor, Outdoor,
One Push WB, Manual WB
Gain Auto/Manual (–3 to 28 dB, 2 dB
steps)
Aperture control 16 steps
Preset 6-POSITIONS
Serial interface VISCA protocol (TTL/CMOS)
9.6 Kbps, 19.2 Kbps, 38.4 Kbps,
Stop bit, 1/2 bit
Video Output VBS: 1.0 Vp-p (Sync negative),
Y/C Output
Storage temperature/Humidity
–20 to 60 °C (–4 to 140 °F)/20 to 95 %
Operating temperature/Humidity
0 to 50 °C (32 to 122 °F)/20 to 80 %
Power requirements/Power consumption
6 to 12 V DC/1.5 W (2.5 W)
Weight 230 g (8.1 oz.)
Dimensions 50.0 × 57.5 × 88.5 mm
(2 × 2
3
/8 × 3
1
/2 in.) (w/h/d)
Design and specifications are subject to change
without notice.

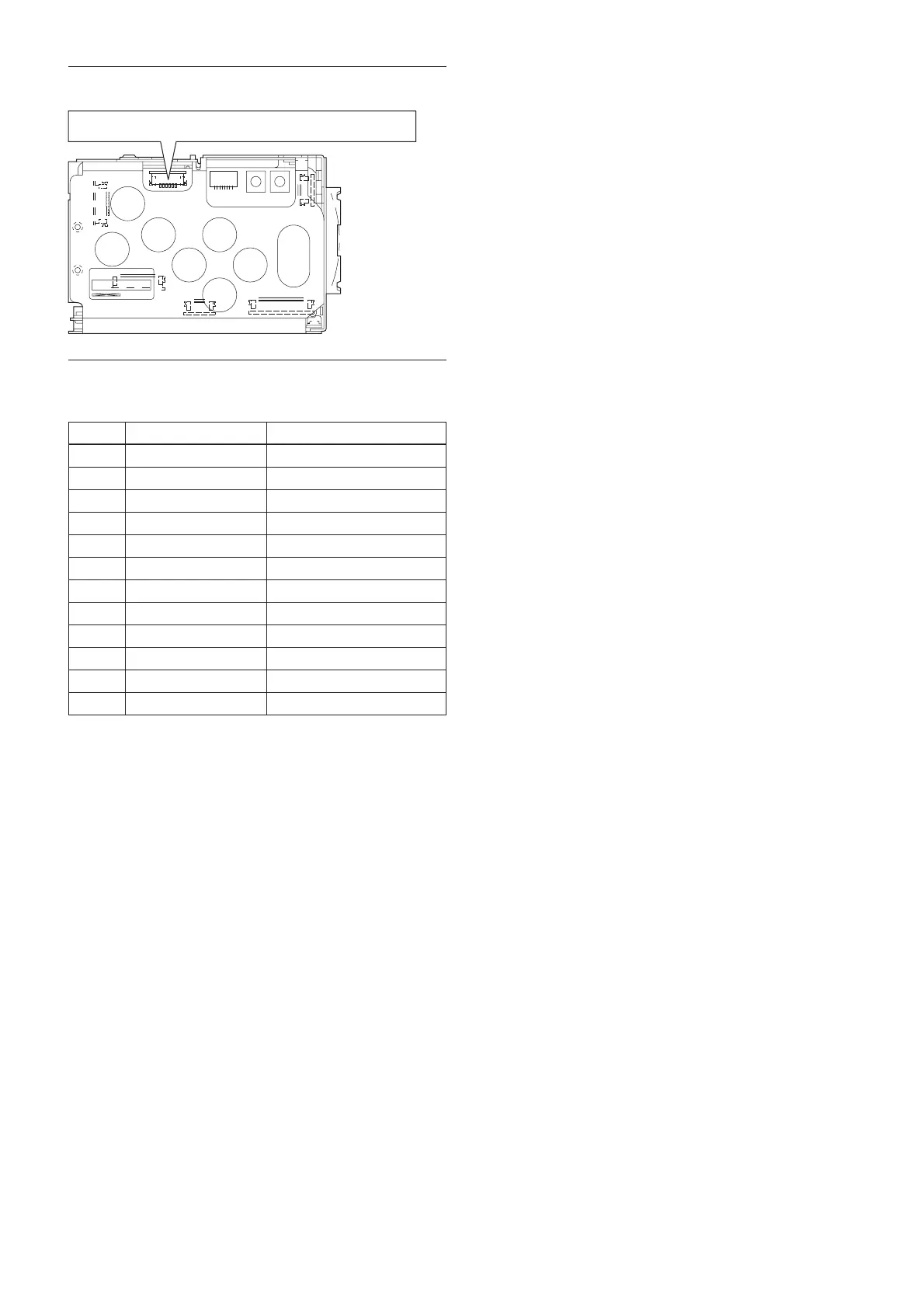

CN601
MOLEX 52689-1293
Pin No. Name Level
1 GND
2 GND
3 KEY AD0
4 KEY AD1
5 KEY AD2
6 KEY AD3
7 KEY AD4
8 KEY AD5
9 KEY AD6
10 KEY AD7
11 NC
12 STROBE
qx qz 0 9 8 7 6 5 4 3 2 1
