10
Basic Functions
Data Iris Gain Data Iris Gain
1F F1.6 +28 dB 0F F2.4 0 dB
1E F1.6 +26 dB 0E F2.8 0 dB
1D F1.6 +24 dB 0D F3.4 0 dB
1C F1.6 +22 dB 0C F4 0 dB
1B F1.6 +20 dB 0B F4.8 0 dB
1A F1.6 +18 dB 0A F5.6 0 dB
19 F1.6 +16 dB 09 F6.8 0 dB
18 F1.6 +14 dB 08 F8 0 dB
17 F1.6 +12 dB 07 F9.6 0 dB
16 F1.6 +10 dB 06 F11 0 dB
15 F1.6 +8 dB 05 F14 0 dB
14 F1.6 +6 dB 04 F16 0 dB
13 F1.6 +4 dB 03 F19 0 dB
12 F1.6 +2 dB 02 F22 0 dB
11 F1.6 0 dB 01 F28 0 dB
10 F2 0 dB 00 CLOSE 0 dB
When switching from the Shutter Priority mode to the
Bright mode, the shutter speed set in the Shutter
Priority mode is maintained.
Spot Exposure Mode
In Full Auto AE, the level for the entire screen is
computed and the optimum Auto Iris and Gain levels
are determined. In Spot AE, a particular section of the
subject can be designated, and then that portion of the
image can be weighted and a value computed so that
Iris and Gain can be optimized to obtain an image.
For example, in an image with a lot of movement and
with varying levels of brightness, portions without
much change can be designated as such a “spot,” and
changes to the screen can be minimized in that area.

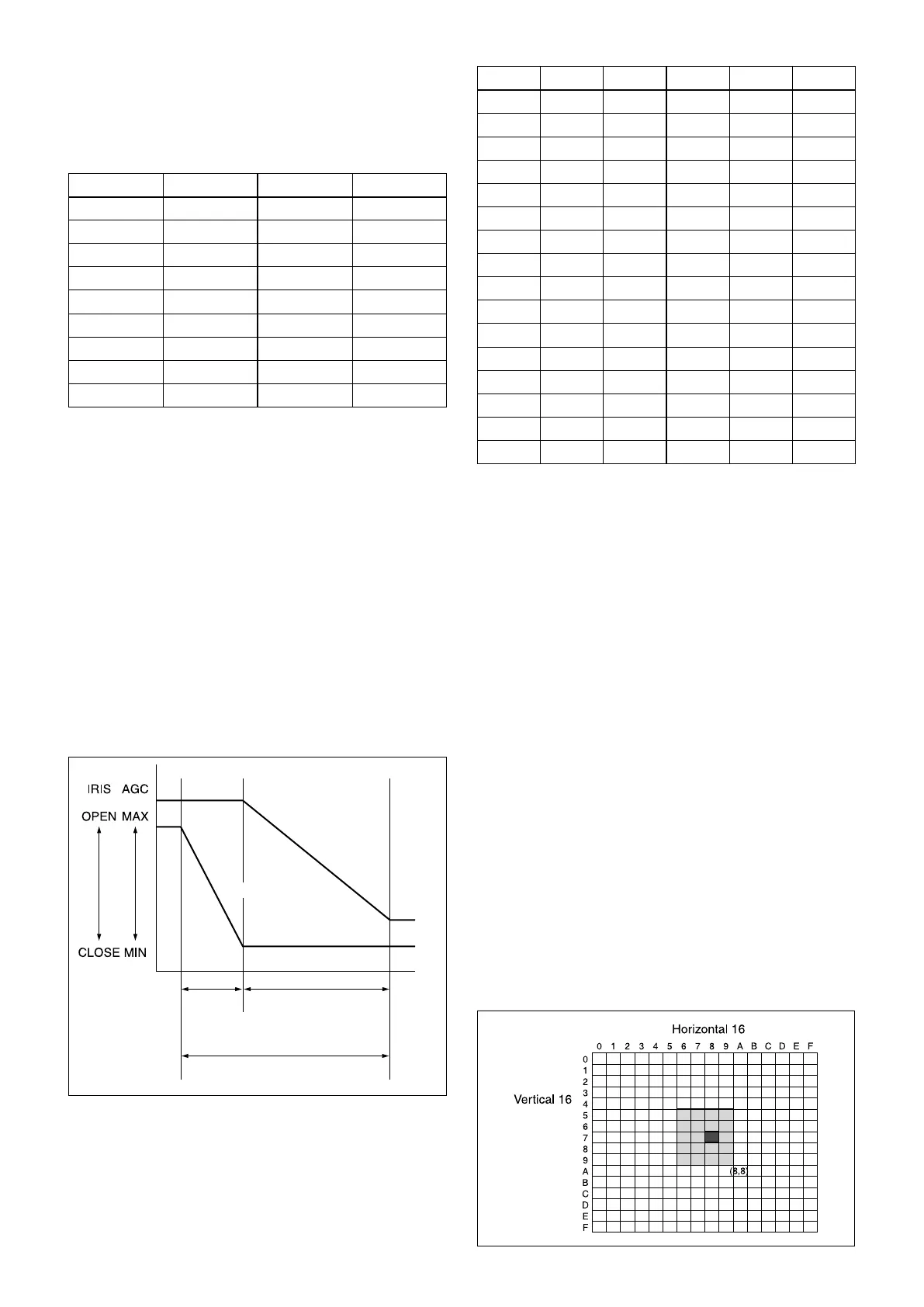

As shown in the diagram below, a range of 16 blocks
vertically and 16 blocks horizontally can be designated.
In the case where the center is designated (shown in
black), the level is computed along with a weighted
value for the surrounding block (shaded), including the
specified portions; and then the Gain and Iris are set.
The value of the designated portions and the
surrounding areas should be calculated as 100%, the
rest should be set to 20%. The range of the Spot AE
frame is fixed to 5 blocks vertically and 4 blocks
horizontally.
AE – Iris priority
The iris can be set freely by the user to 18 steps
between F1.4 and Close.
The gain and shutter speed are set automatically,
according to the brightness of the subject.
Data Setting value Data Setting value
11 F1.6 08 F8
10 F2 07 F9.6
0F F2.4 06 F11
0E F2.8 05 F14
0D F3.4 04 F16
0C F4 03 F19
0B F4.8 02 F22
0A F5.6 01 F28
09 F6.8 00 CLOSE
AE – Manual
The shutter speed (22 steps), iris (18 steps) and gain
(16 steps) can be set freely by the user.
AE – Bright
The bright control function adjusts both gain and iris
using an internal algorithm, according to a brightness
level freely set by the user. Exposure is controlled by
gain when dark, and by iris when bright.
As both gain and iris are fixed, this mode is used when
exposing at a fixed camera sensitivity. When switching
from Full Auto or Shutter Priority Mode to Bright
Mode, the current status will be retained for a short
period of time.
Only when the AE mode is set to “Full Auto” or
“Shutter Priority,” can you switch it to “Bright.”
Gain
Dark Bright
IRIS curve
Gain curve
Controlled
by gain
Controlled by IRIS
Bright limit which controllable
for this unit
To Next Page
