Extended Commands
Extended commands support the following functions
(described previously).
Turn on this mode (for details, see “Extended Mode” in
“Register Setting” on page 55) to enable the following
functions.
• Exposure Compensation
The setting can be set in steps of approximately 0.2dB
(-128 (00h) to approximately +127 (FFh)).
For details, see page 9.
• Aperture Control
The setting can be set to 256 levels (00h to FFh).
For details, see page 10.
• Custom Color Gain
The initial setting is 100% (80h), and the setting can
be set to 256 levels from approximately 0% (00h) to
approximately 200% (FFh).
For details, see page 11.
• Custom Color Phase
The initial setting is 0 degrees (80h), and the setting
can be set to 256 levels from approximately −14
degrees (00h) to approximately +14 degrees (FFh).
For details, see page 11.
• Auto ICR Mode
The setting of ICR ONOFF threshold can be set
when Auto ICR is on.
The setting range is 0 step (00h) to 255 step (FFh).
The setting of ICR OFFON threshold (On Level)
can be set when Auto ICR is on.
The setting range is 0 step (00h) to 28 step (1Ch).
For details, see page 12.
Note
When the extended mode is Off, CMD_NOT_EXEC will be
returned if you send the extended commands to the camera.
When the extended mode is On, CMD_NOT_EXEC will be
returned if you send the normal commands to the camera.
qq, rr: Color code
Mask (color) Code (qq, rr) Translucence (qq, rr)
Black 00 h 10 h
Gray1 01 h 11 h
Gray2 02 h 12 h
Gray3 03 h 13 h
Gray4 04 h 14 h
Gray5 05 h 15 h
Gray6 06 h 16 h
White 07 h 17 h
Red 08 h 18 h
Green 09 h 19 h
Blue 0A h 1A h
Cyan 0B h 1B h
Yellow 0C h 1C h
Magenta 0D h 1D h
Mosaic 7F h

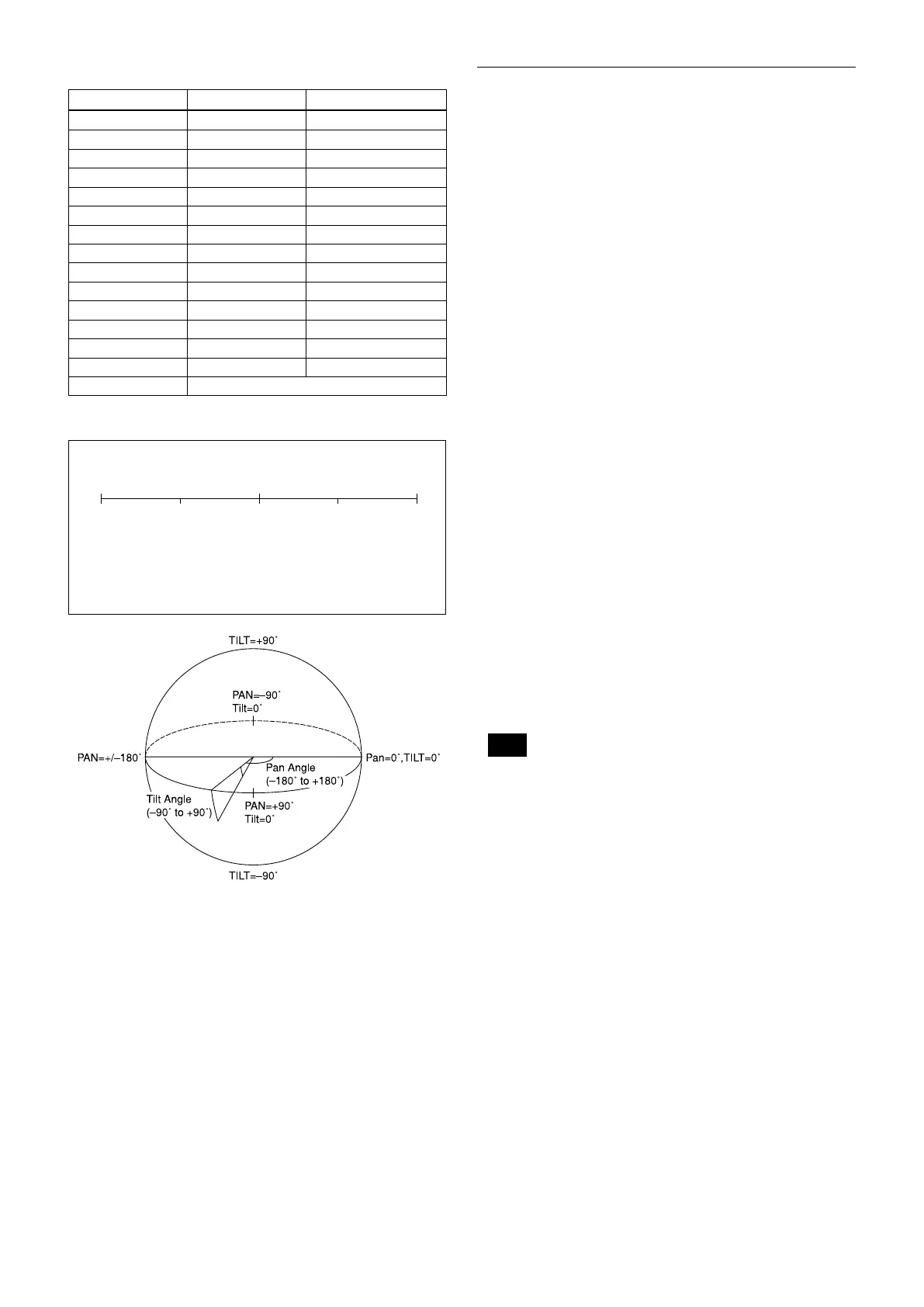

Setting pan/tilt angle
0 90-180 -90 180
400h800h C00h 800h
Angle/Parameter of Angle (ppp, qqq)
Set the angle resolution to 360 (degree)/4096 (1000h).
