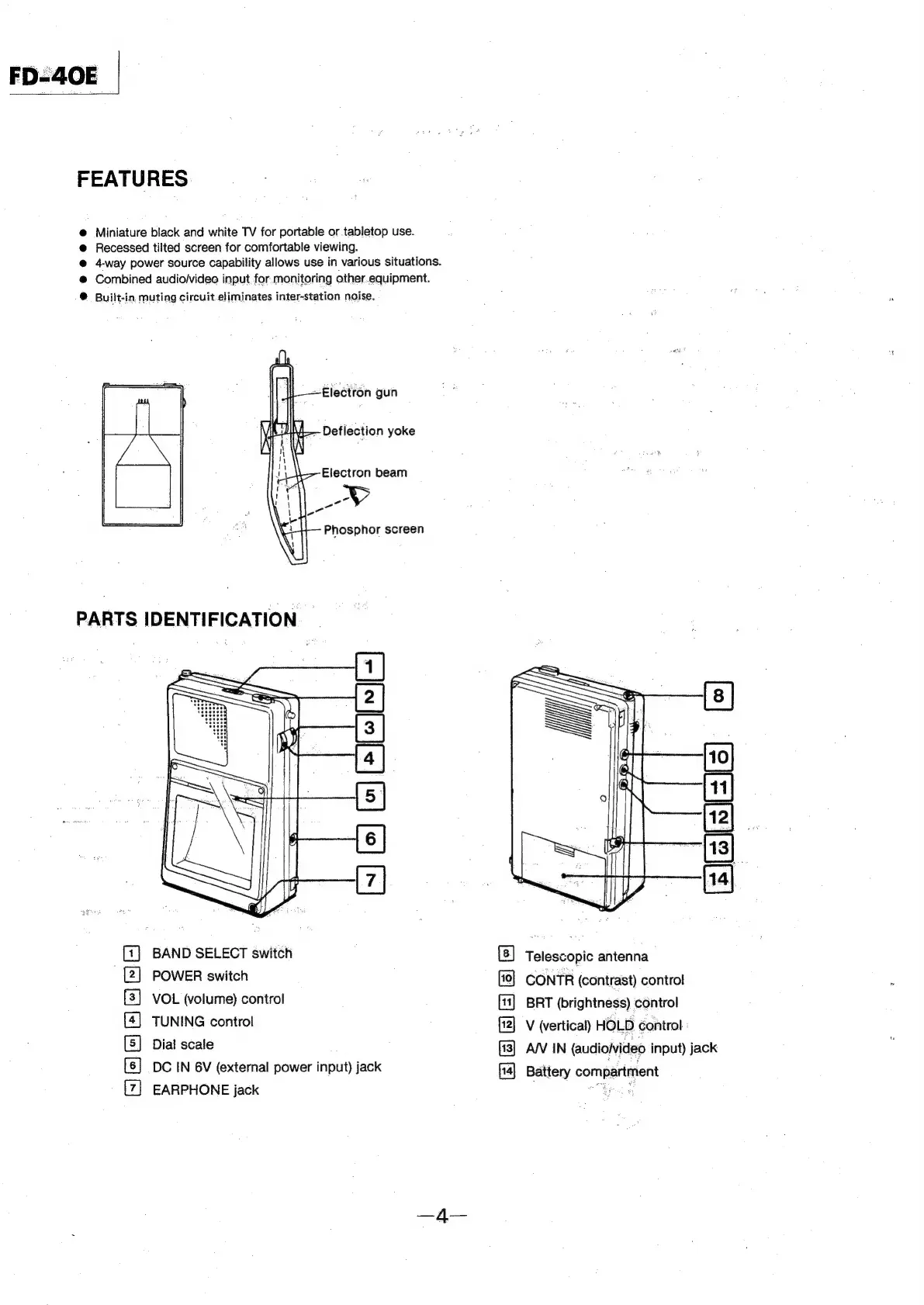

Sony FD-40E - Page 4

FEATURES
Miniature black and white TV for portable or.tabletop use.
Recessed tilted screen for comfortable viewing.
4-way power source capability allows use in various situations.
Combined audio/video input for.monitoring other.equipment.
Built-in, muting circuit. eliminates inter-station noise.
Electron gun
Deflection yoke
SEBEL)
[1] BAND SELECT switch Telescopic antenna
[2] POWER switch CONTR (contrast) contro!
[2] VOL (volume) control [3] BAT (brightness) control
[4] TUNING control 12] v (vertical) HOLD control
[5] Dial scale 3] A/V IN (audiolvideo input) jack
[8] DC IN 6V (external power input) jack Battery compartédent
EARPHONE jack . oe
