O {inch}
FD-40E

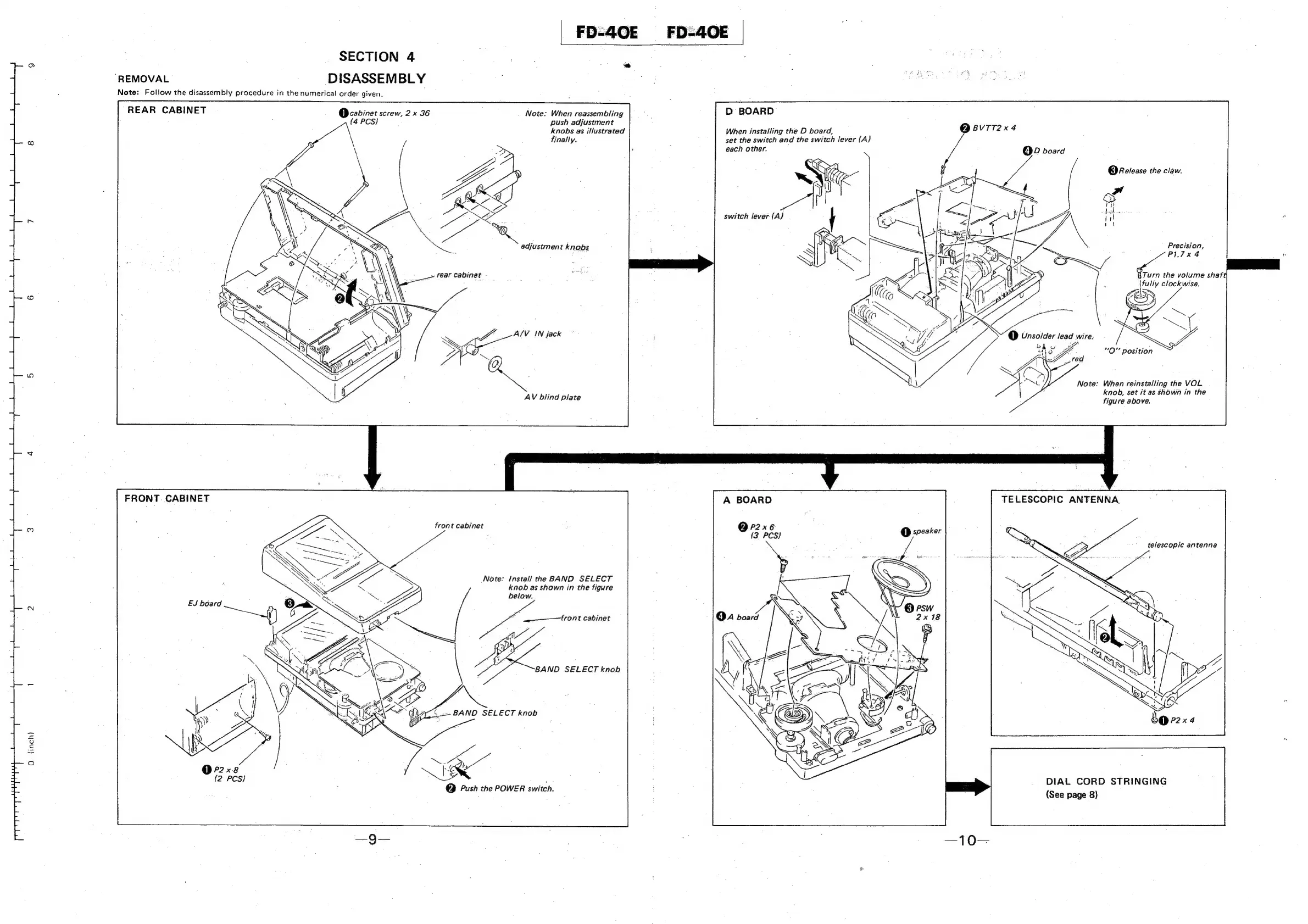

"REMOVAL DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given. ,
REAR CABINET Qcabinet screw, 2x 36 Note: When reassembling
; (4 PCS) push adjustment
knobs as illustrated
finally.
adjustment knobs
rear cabinet
A/V IN jack
AV blind plate
FRONT CABINET
front cabinet
Note: Install the BAND SELECT
knob as shown in the figure
below.
EJ board
‘front cabinet
BAND SELECT knob
FD=40E
D BOARD
When installing the D board,
set the switch and the switch lever (A)
each other.
switch lever (A)
A BOARD
@Qr2x6
{3 PCS)
@ speaker
@sevit2x4
Precision,
: PI.7x4
Turn the volume shafi
Ry clock wise.
Note: When reinstalling the VOL. .
knob, set it as shown in the
figure above.
TELESCOPIC ANTENNA
telescopic antenna
DIAL CORD STRINGING
(See page 8)
