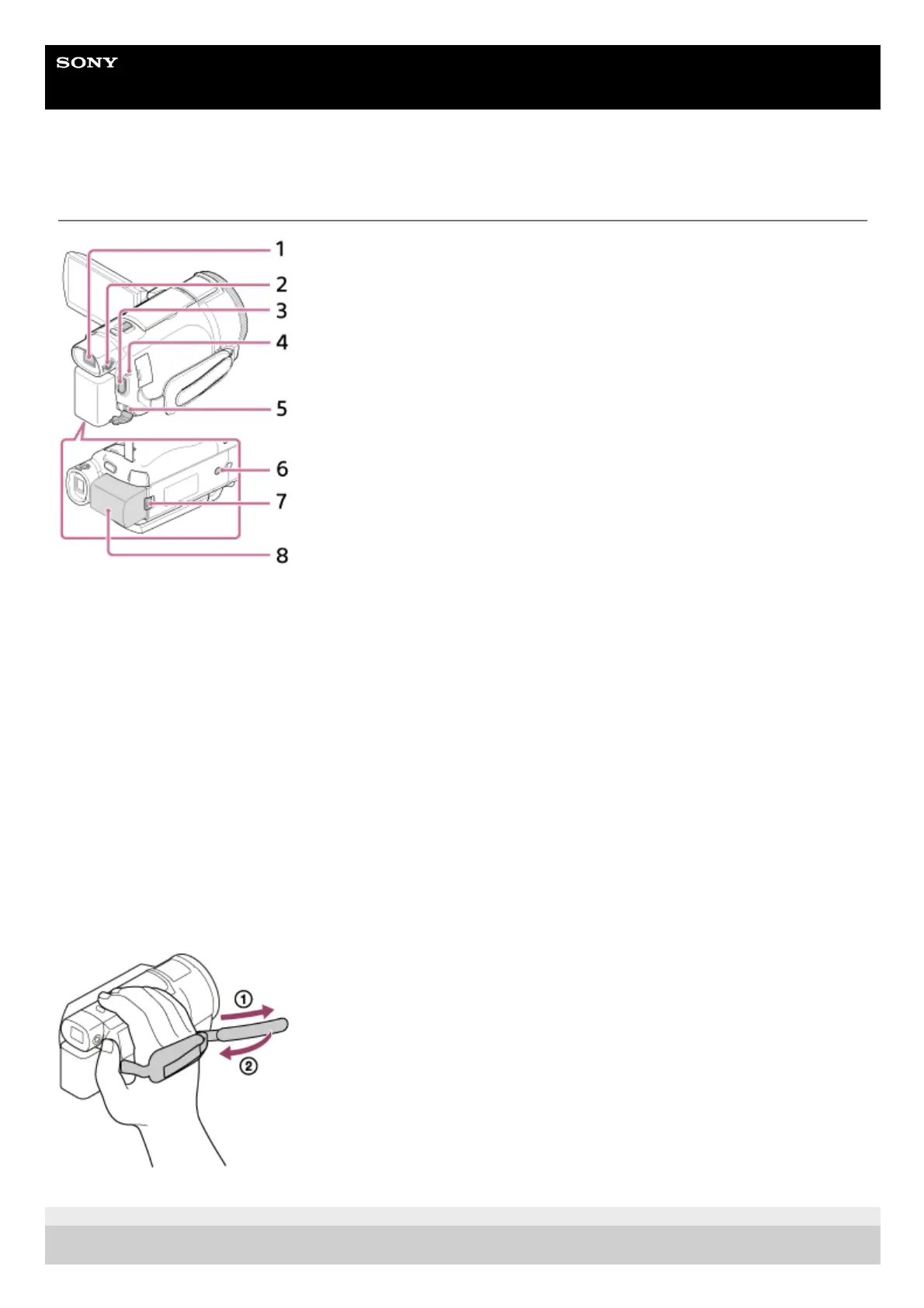

Parts and controls (back/bottom)
To fasten the grip belt
4-734-284-22(1) Copyright 2020 Sony Corporation
Viewfinder (models with the Viewfinder)
This product is turned on when the viewfinder is pulled out.
1.
Viewfinder lens adjustment dial (models with the Viewfinder)
If the indications in the viewfinder appear blurred, adjust the viewfinder lens adjustment dial.
2.
START/STOP button3.
POWER/CHG (charge) lamp4.
DC IN jack5.
Tripod receptacle
For 1/4-20 UNC screws.
Attach a tripod (sold separately: the length of the screw must be less than 5.5 mm (7/32 in.)). Depending on the
specifications of the tripod, this product may not attach in the proper direction.
6.
BATT (battery) release lever7.
Battery pack8.
To Next Page
