Sony HDCU1500 User Manual

61
Specifications
Design and specifications are subject to change without
notice.
HDCU1500
General
Power supply 100 to 240 V AC, 50/60 Hz
Current consumption
4.1 A (max.)
Standby power Approx. 5 W
Peak inrush current
(1)Power ON, current probe method: 30
A (240 V), 15 A (100 V)
(2)Hot switching inrush current,
measured in accordance with
European standard EN55103-1: 12 A
(230 V)
Appel de courant de crête
(1)Mise sous tension (ON), méthode de
sondage du courant: 30 A (240 V), 15
A (100 V)
(2)Mesuré conformément à la norme
européenne EN55103-1: 12 A (230 V)
Spitzenstrom (1)Einschaltstrom, Stromsonde: 30 A
(240 V), 15 A (100V)
(2)Gemessen in EN55103-1: 12 A
(230V)
Operating temperature
–10°C to +40°C (+14°F to +104°F)
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Mass Approx. 6.5 kg (14 lb 5 oz)

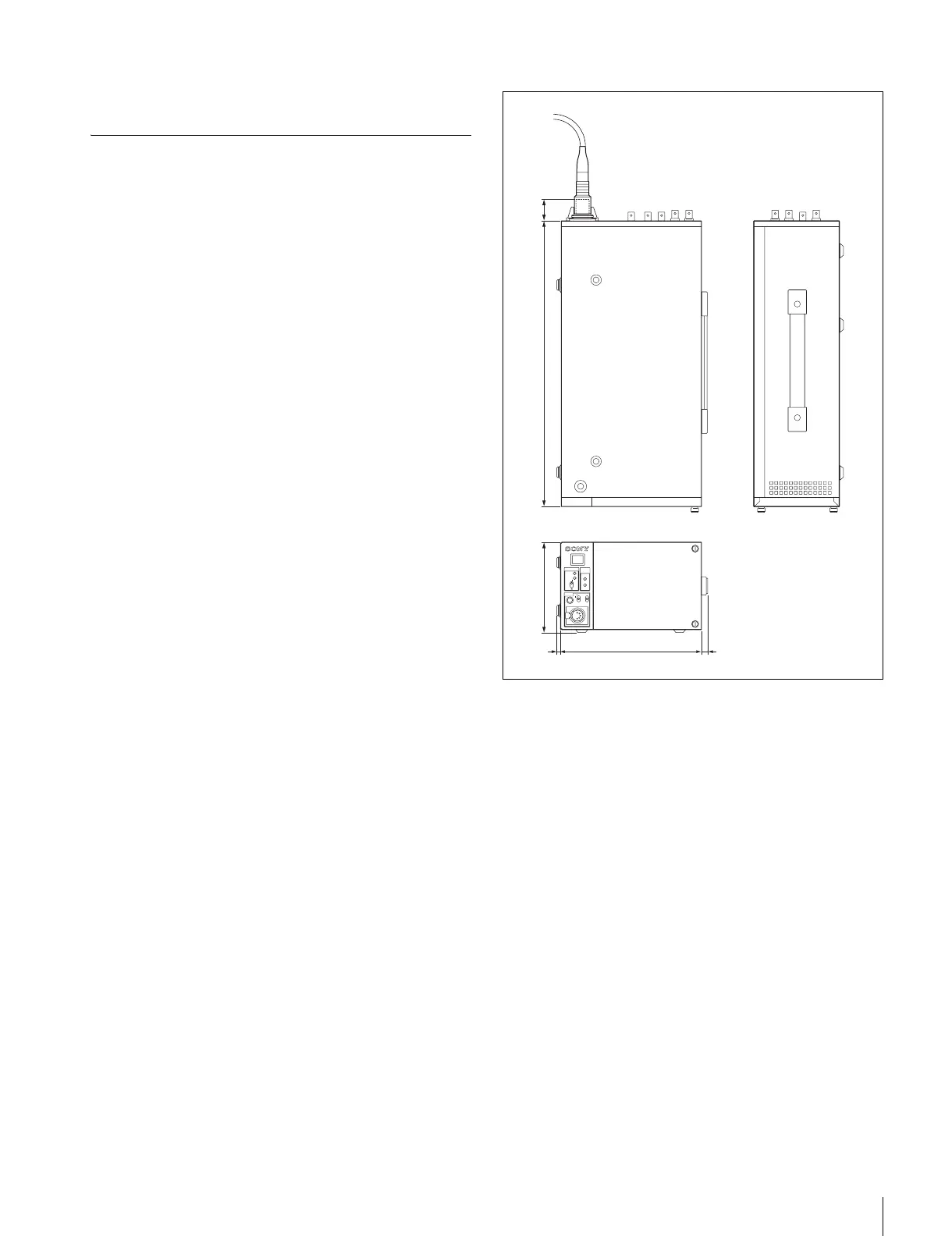

Dimensions
Input/output connectors
CAMERA Optical fiber connector (1)
1.485 Gbps/1.4835 Gbps SDI × 2, 180 V
DC power supply
INCOM/TALLY/PGM
D-sub 25-pin (1)
• INCOM (PD / ENG), 4W/RTS/CC,
0 dB
• PGM, 2 systems, 0 dB/ –20 dB
• TALLY (R, G)
RCP/CNU 8-pin multi-connector (1)
TRUNK A 12-pin (1)
Ethernet 6-pin (1)
Input connectors
AC IN (1), 100 to 240 V AC
RET BNC-type (3),
VBS: 1.0 Vp-p, 75 ohms
HD-SDI: SMPTE-292M, 1.485 Gbps/
1.4835 Gbps
SD-SDI: SMPTE-259M, 270 Mbps
REFERENCE BNC-type (2), loop-through output
PROD
SHORT
OPEN
CAM
MAIN
CABLE
ALRAM
INCOM
POWER
ENGPGM
ONMIC
OFF PRIV
HD CAMERA CONTROL UNIT
1
5 (
7
/
32
)
200 (7
7
/
8
)
127 (5) 410 (16
1
/
4
) 30 (1
3
/
16
)
Unit: mm (inches)
9 (
3
/
8
)
