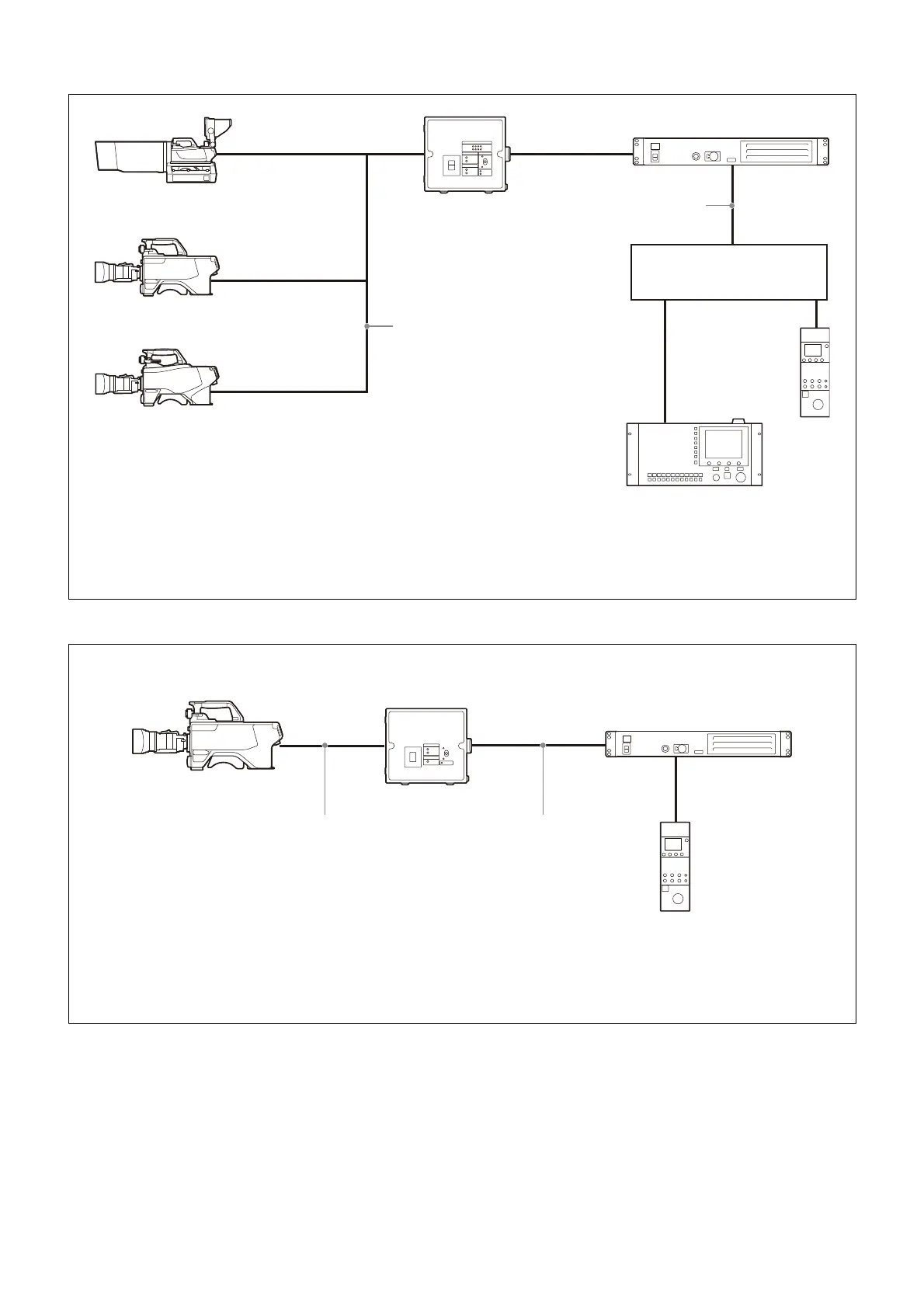

Connection example (coax (HDCE) connection)
Connection example (single-mode fiber connection)
HDCU3100/HDCU3170
a)
Optical fiber cable
HDC2500/2400
HD Color Camera
+ Large Lens Adaptor
HDC3500
Color Camera
HDC2500/2400
HD Color Camera
HDCE-200
Camera Extension
Adaptor
RCP-1500/1000 series
Remote Control Panel
MSU-1000/1500
Master Setup Unit
Switching Hub
LAN cable
a) Configure the following menu settings.
• Set SYSTEM CONFIG t <CAMERA I/F> t CABLE TYPE to COAX(HDCE).
• Set SYSTEM CONFIG t <VIDEO I/O> t SDI-I/O 3 t SIGNAL to HD TRUNK.
• Set SYSTEM CONFIG t <VIDEO I/O> t SDI-I/O 4 t SIGNAL to HD PROMPTER.
BNC cables (2)
HDCU3100
b) c)
HDC3500
HDC2000 series
a)
HSC300RF/100RF
Color Camera
Optical fiber cable Single-mode optical fiber
cables
d)
(2)
RCP-1500/1000 series
Remote Control Panel
HDCE-100
Camera Extension
Adaptor
a) HDC2000 series: HDC2000/2580/2500/2400/1700
b) Attach the HKCU-SM30 Single Mode Fiber Connector Kit.
c) Configure the transmission type using the following menu item on the HDCU3100.
Set SYSTEM CONFIG t <CAMERA I/F> t CABLE TYPE to SINGLE-MODE FIBER.
d) Signal transfer up to a maximum of 10 km is possible. However, the actual transfer distance may vary depending on the system configuration of the
cameras and the type of single-mode optical fiber cables used.
