8

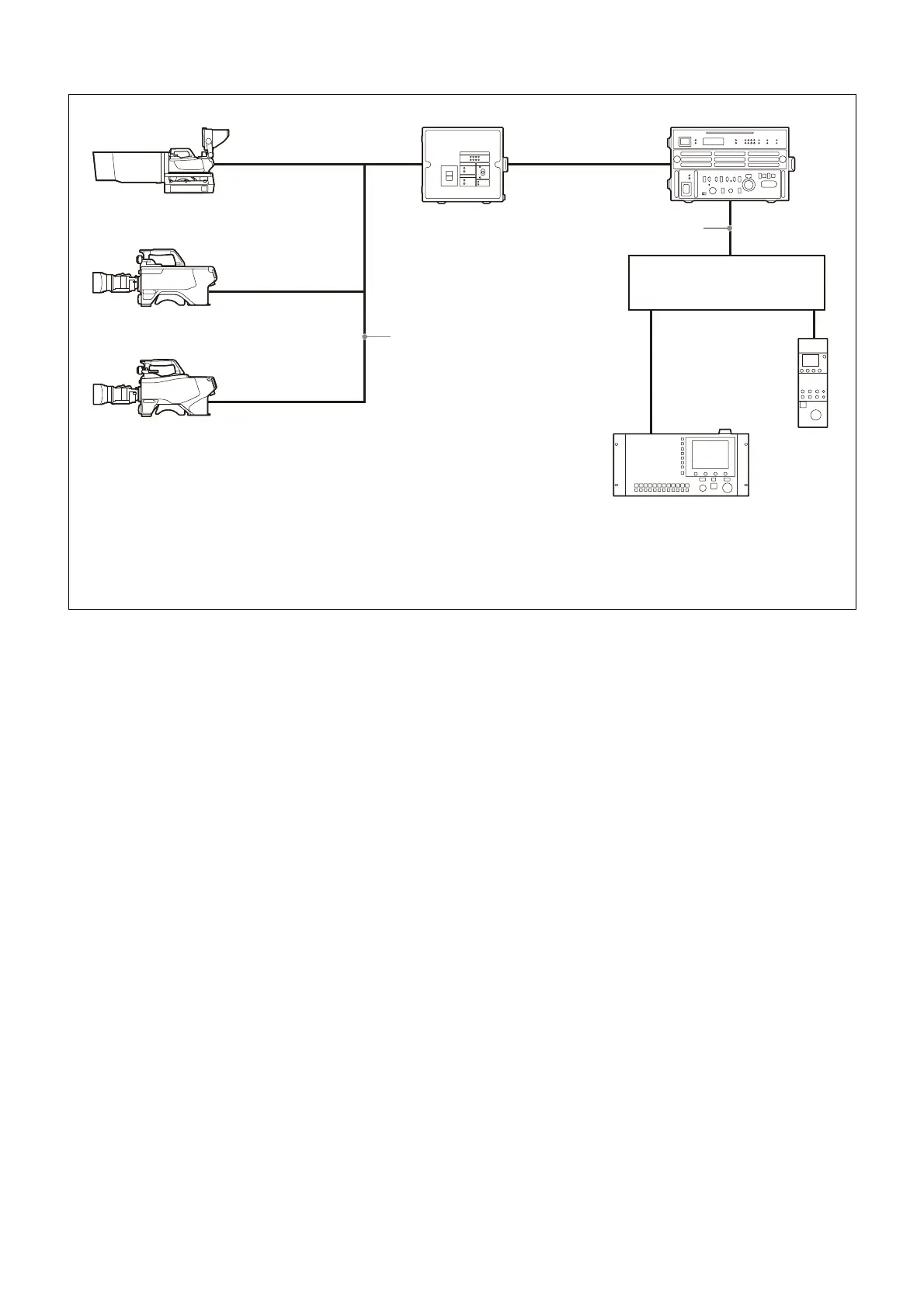

Connection example (coax (HDCE) connection)
HDCU3500
a)
HDC2500/2400
HD Color Camera
+ Large Lens Adaptor
Optical fiber cable
MSU-1000/1500
Master Setup Unit
HDCE-200
Camera Extension
Adaptor
a) Configure the following menu settings.
• Set SYSTEM CONFIG t <CAMERA I/F> t CABLE TYPE to COAX(HDCE).
• Set SYSTEM CONFIG t <VIDEO I/O> t SDI-I/O 3 t SIGNAL to HD TRUNK.
• Set SYSTEM CONFIG t <VIDEO I/O> t SDI-I/O 4 t SIGNAL to HD PROMPTER.
LAN cable
HDC3500
Color Camera
RCP-3000/1000 series
Remote Control Panel
HDC2500/2400
HD Color Camera
BNC cables (2)
Switching hub
