4: Connecting the antennas

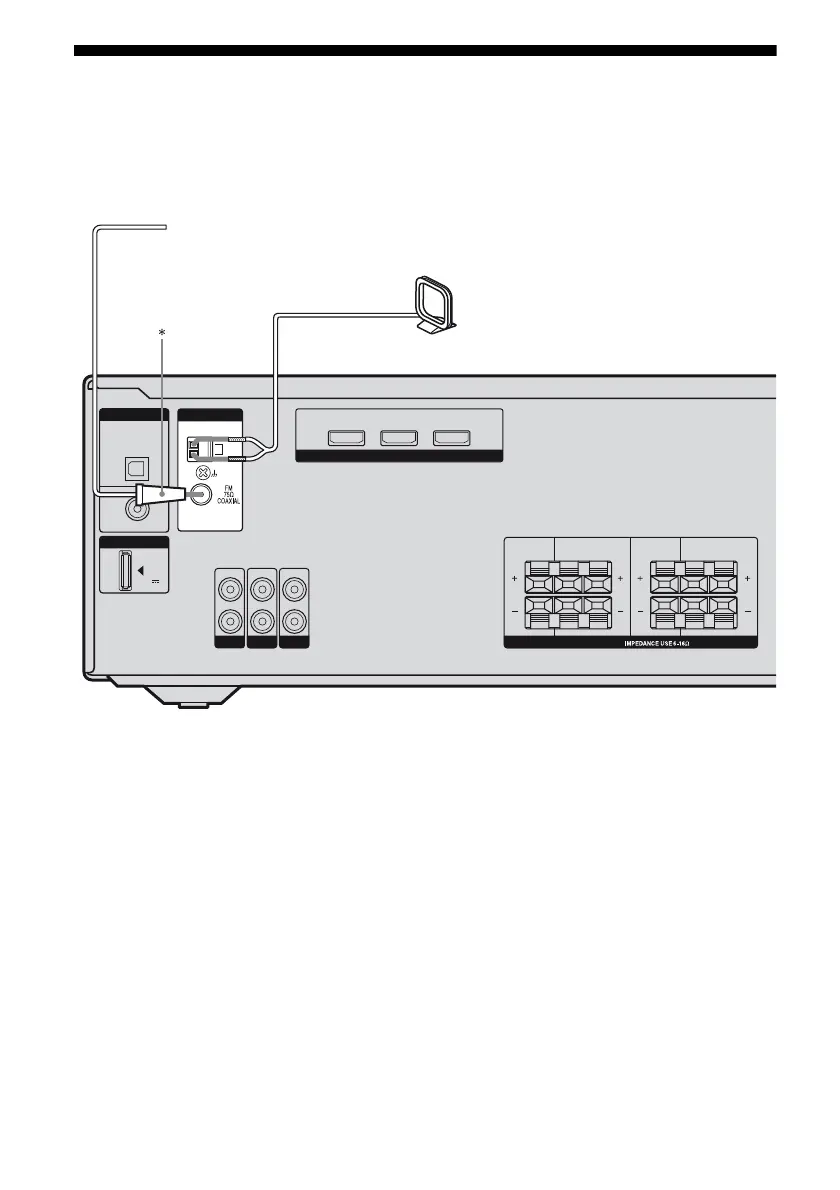

Connect the supplied AM loop antenna and
FM wire antenna.
Before connecting the antennas, be sure to
disconnect the AC power cord (mains lead).
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop
antenna away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
SA-CD
/
CD
L
R
TV SAT
IN
SURROUND
SUB
WOOFER
LR
SPEAKERS
FRONTCENTER
LR
DVD/BD
IN
DIGITAL
DMPORT
OPTICAL
SAT
IN
COAXIAL
ANTENNA
AM
IN IN
DC5V
0.7A MAX
SAT IN DVD/BD IN OUT
HDMI
FM wire antenna (supplied)
AM loop antenna (supplied)
