Installation

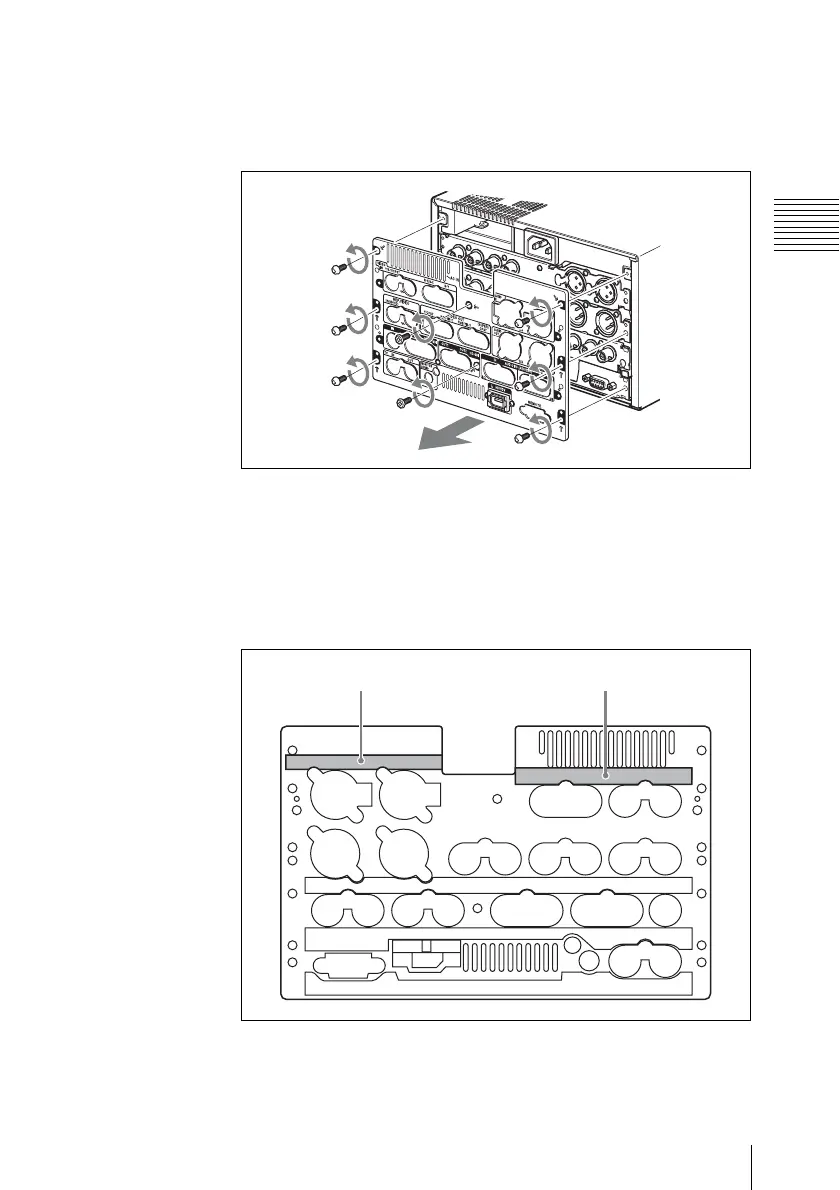

To apply the electromagnetic shielding
1 Remove the eight screws holding the rear panel of the HVR-1500.
2 Peel off the protective layer from the double-sided tape attached to
the electromagnetic shielding.
3 Apply the electromagnetic shielding in the positions on the inner
side of the rear panel, as shown in the figure.
Apply the electromagnetic shielding with the double-sided tape
side down.
4 Replace the rear panel, and fasten the screws.
Electromagnetic shielding
(DDE1)
Electromagnetic shielding
(DDE2)
