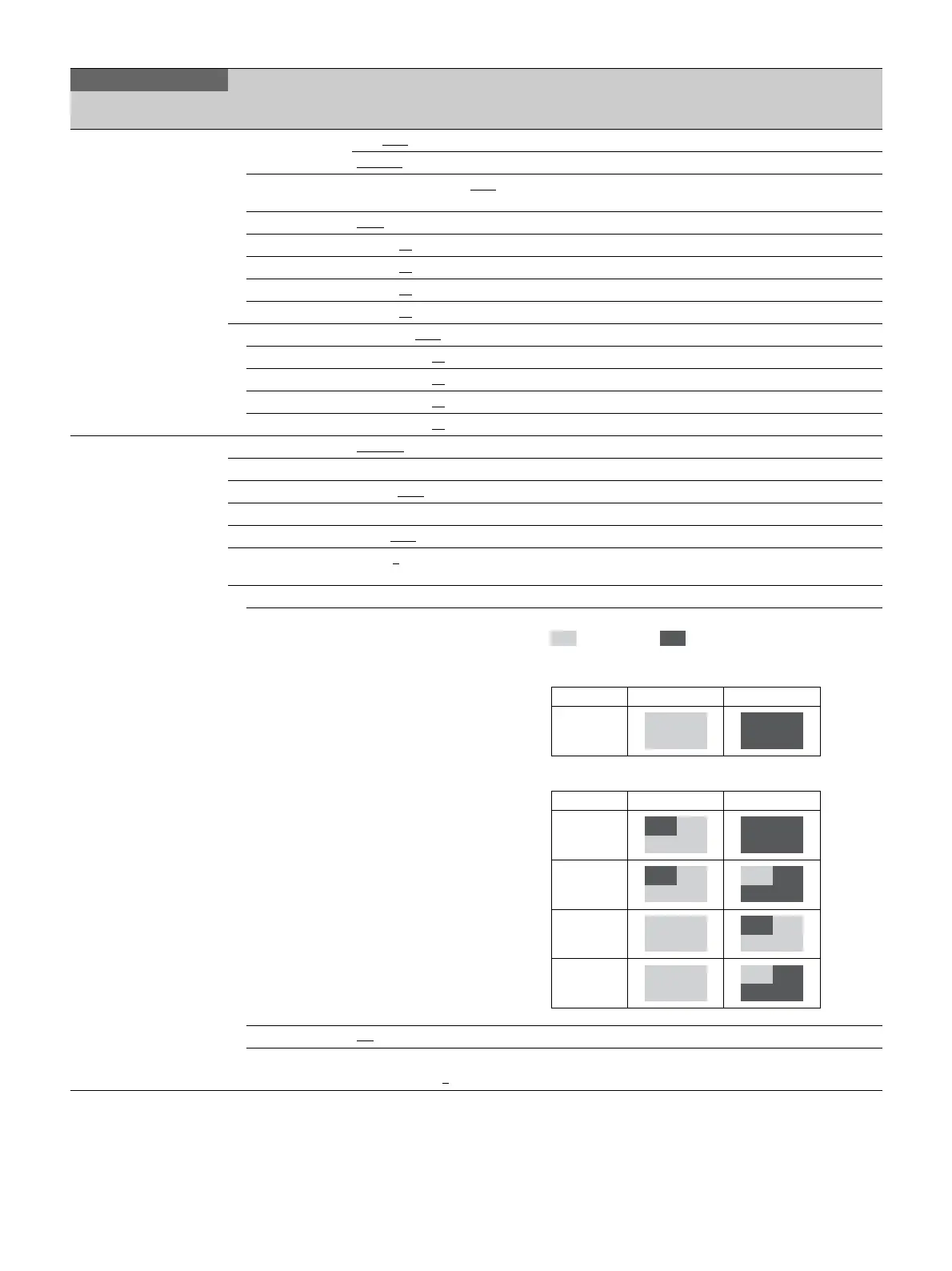

Sony HXC-FB80 - Page 49

49
<CURSOR>
07 (U07)
CURSOR ON, OFF
WHITE, BLACK, DOT
LEVEL 0%, 10%, 20%, 30%, 40%
, 50%,
60%, 70%, 80%, 90%, 100%
BOX/CROSS BOX
, CROSS
H POSITION 0 to 99 50
V POSITION 0 to 99 50
WIDTH 0 to 99 50
HEIGHT 0 to 99 50
BOX MEMORY 1/2/3: ON, OFF
H POSI 1/2/3: 0 to 99 50
V POSI 1/2/3: 0 to 99 50
WIDTH 1/2/3: 0 to 99 50
HEIGHT 1/2/3: 0 to 99 50
<VF OUT>
08 (U01)
VF OUT COLOR, Y, R, G, B,
RET MIX VF ON, OFF
MIX DIRECTION MAIN, RET
MIX VF MODE Y-MIX, WIRE (W), WIRE (B)
MIX VF LEVEL 0% to 80%
CHARACTER
LEVEL
1 to 5 4
PinP ON, OFF Disabled for 1080/23.98PsF SD output
POSITION When PinP is set to OFF: ---
When PinP is set to ON: 1, 2, 3, 4
Disabled for 1080/23.98PsF HD and SD output
: Main picture, : Return picture
SIZE 1/3
, 1/4
MODE PinP OFF: ---
PinP RETURN: 1
, 2, 3, 4
OPERATION
Page name
Page No.
Item Setting Description / Remarks
When PinP is set to OFF
When PinP is set to ON
Mode RET SW OFF RET SW ON
---
Mode RET SW OFF RET SW ON
1
2
3
4
