Specifications
General
Power requirements 10.5 V to 17.0 V DC, 5.4 A (max.)
48 V DC, 2.8 A (max.)
Power consumption 19 W (camera head only)
22 W (camera head + HDVF-L10 viewfinder +
lens + microphone)
32 W (camera head + HDVF-L750 viewfinder +
lens)
Operating
temperature
–10 °C to +45 °C (14 °F to 113 °F)
Storage temperature –20 °C to +60 °C (–4 °F to +140 °F)
Mass Approx. 3.4 kg (7 lb 7.9 oz) (camera head only)

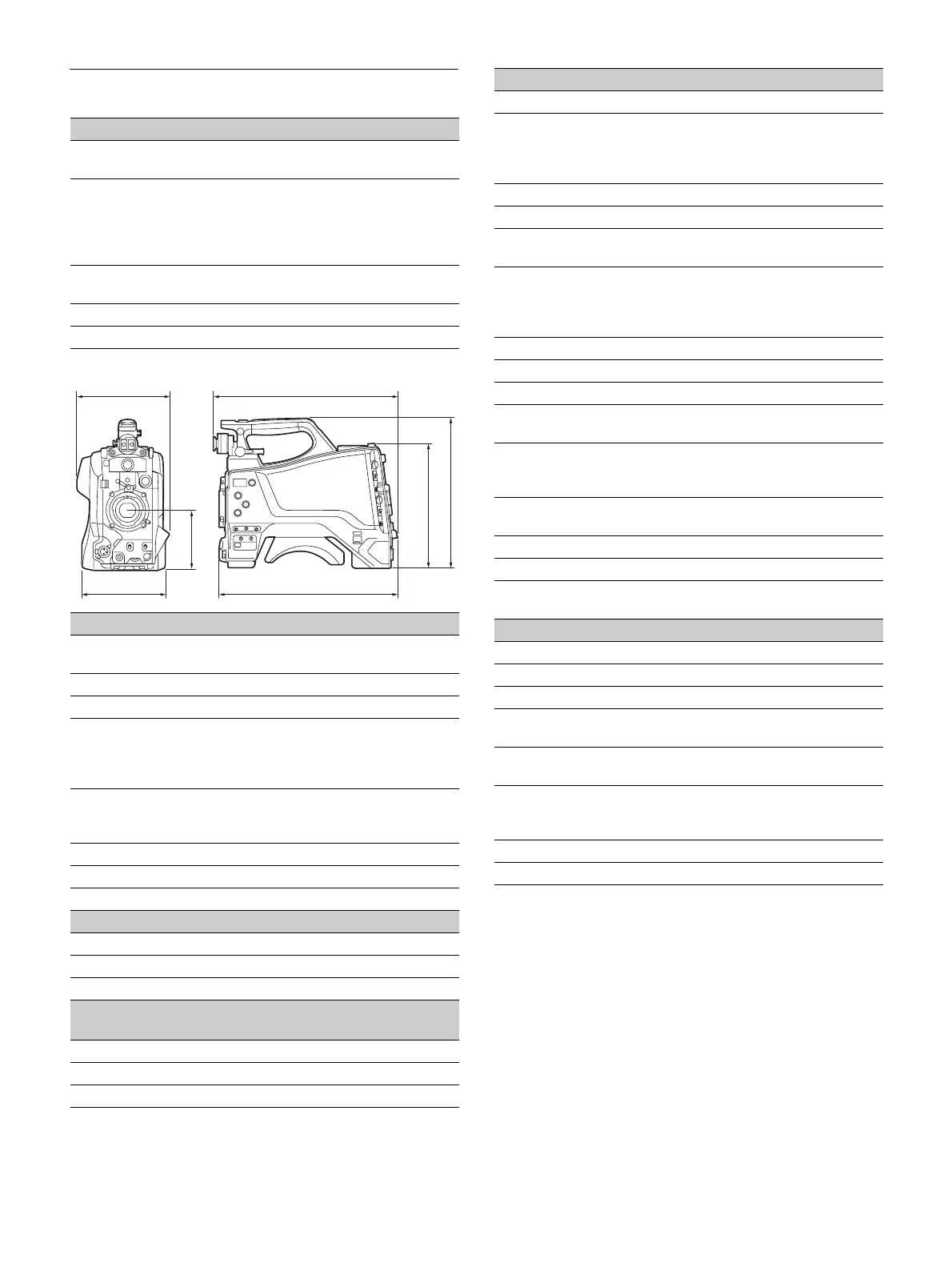

Dimensions Unit: mm (inches)
Camera
Imaging element 2/3-inch type CMOS image sensor
Effective resolution: 1920 (H) × 1080 (V)
Method 3-chip, RGB
Optical system F1.4 prism system
ND filters 1: Clear
2: 1/4 ND
3: 1/16 ND
4: 1/64 ND
Sensitivity F12 (system frequency: 59.94i)
F13 (system frequency: 50i)
(2000 lx, 89.9% reflectance)
Image S/N –60 dB (Noise Suppress ON)
Horizontal resolution 1000 TVL or higher
Gain –3, 0, 3, 6, 9, 12 dB
Display (HDVF-L10 viewfinder (supplied with the HXC-FB80K))
Screen size 8.8 cm diagonal (3.5-inch)
Aspect ratio 16:9
Number of pixels 960 (horizontal) × 540 (vertical) × 3 (RGB)
Display (HDVF-L750 viewfinder (supplied with the HXC-
FB80S))
Screen size 155.5 × 87.5 mm (7.0 inch)
Aspect ratio 16:9
Number of pixels 1920 (horizontal) × 1080 (vertical)
160 (6
3
/
8
)
333 (13
1
/
8
)
144 (5
3
/
4
)
314 (12
3
/
8
)
224 (8
7
/
8
)
266 (10
1
/
2
)
105 (4
1
/
4
)
Inputs/outputs
CCU Optoelectric composite connector (1)
AUDIO 1 IN
AUDIO 2 IN
XLR type, 3-pin, female (1 each)
MIC: –60 dBu (Up to –20 dBu can be set by using
menu or HXCU-FB80), balanced
LINE: 0 dBu, balanced
INTERCOM XLR type, 5-pin, female (1)
EARPHONE Stereo minijack (1)
DC IN XLR type, 4-pin (1)
10.5 V to 17.0 V DC
DC OUT 4-pin (1)
10.5 V to 17.0 V DC, maximum 1.5 A
(May be limited, depending on load and input
conditions.)
SDI I/O BNC type (1)
SDI OUT BNC type (1)
TEST OUT BNC type (1)
PROMPTER/
GENLOCK
BNC type (1)
1 Vp-p, 75 Ω
LENS 12-pin (1)
Lens power supply: 10.5 V to 17.0 V DC,
maximum rated current 1.0 A
TRUNK D-sub 9-pin, female (1)
RS-232C
VF Round type, 20-pin (1)
REMOTE 8-pin (1)
USB USB 2.0 Type A, 4-pin (1)
(for USB flash drive)
Lens (supplied with the HXC-FB80K/HXC-FB80S)
Focal length 8.2 mm to 164 mm
Zoom Servo/Manual selectable
Zoom ratio 20×
Maximum relative
aperture
1:1.9
Iris Auto/Manual selectable
F1.9 to F16 and C (close)
Focus Manual
Range: 900 mm to ∞ (Macro mode OFF),
10 mm to ∞ (Macro mode ON, wide angle)
Filter diameter M82 mm, pitch 0.75 mm
Macro mode ON/OFF switchable
