SECTION 1
DISASSEMBLY
• This set can be disassembled in the order shown below.
Note: Follow the disassembly procedure in the numerical order given.
1-1. FRONT CASE ASSY
1-1. FRONT CASE ASSY
(Page 4)
SET
1-2. SW BOARD
(Page 5)
1-3. LCD ASSY
(Page 5)
1-4. MAIN BOARD
(Page 6)
1-5. USB ASSY
(Page 6)
1-6. USB BOARD ASSY
(Page 7)
1-7. USB BOARD
(Page 7)

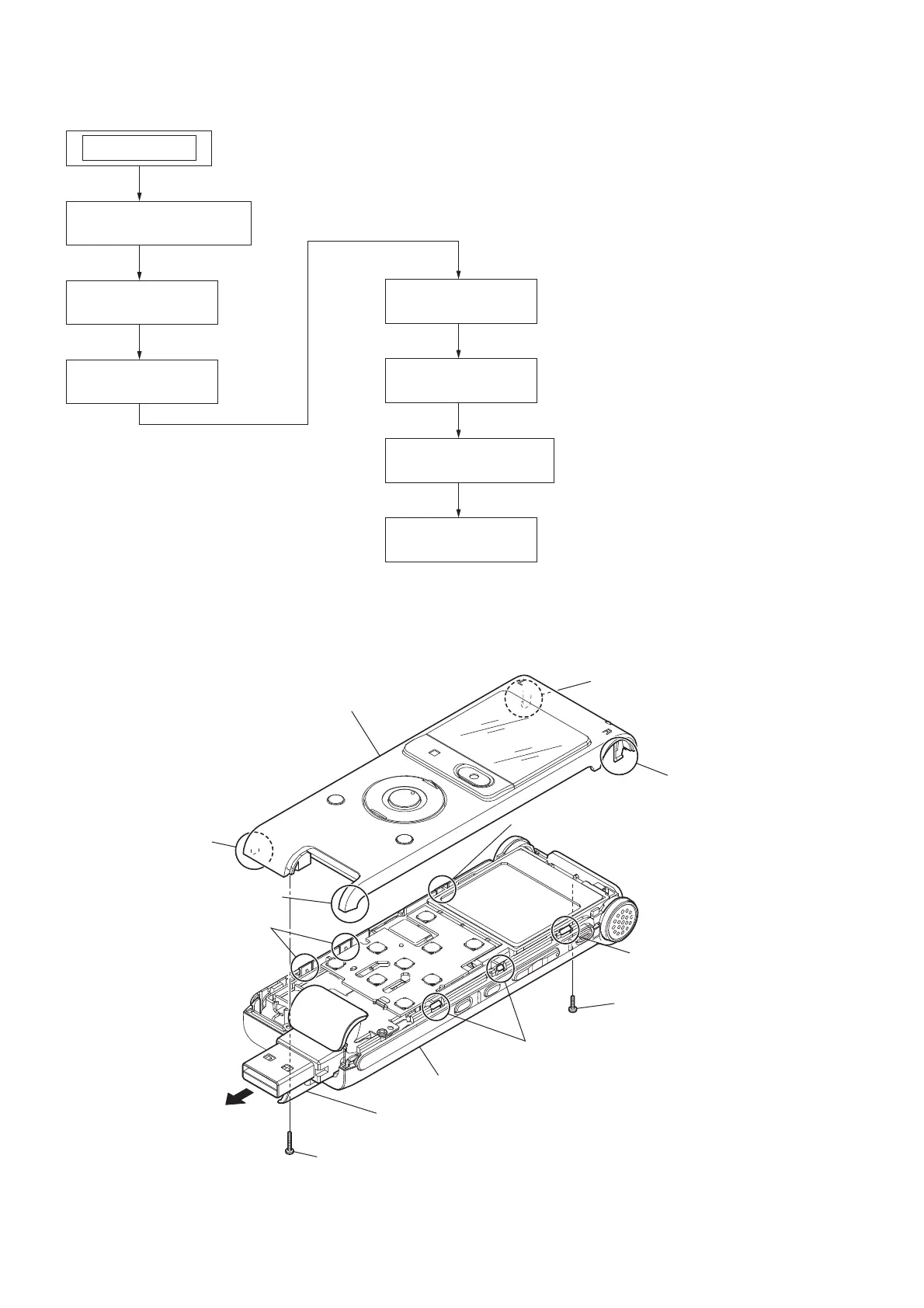

case rear section
3 screw
(+PTP 1.4)
4 screw
(+B 1.4)
5 claw
6 claw
9 claw
0 claw
qa claw
qs claw
7 two claws
8 two claws
qd front case assy
1
2 battery lid
