Sony ICF-C103L - Section 5 Exploded Views

ICF-C103L
NOTE:
* -XX, -X mean standardized parts, so
they may have some differences from
the original one.
* Color Indication of Appearance Parts
Example:
KNOB, BALANCE(WHITE)...(RED)
D t
Parts color Cabinet’s color

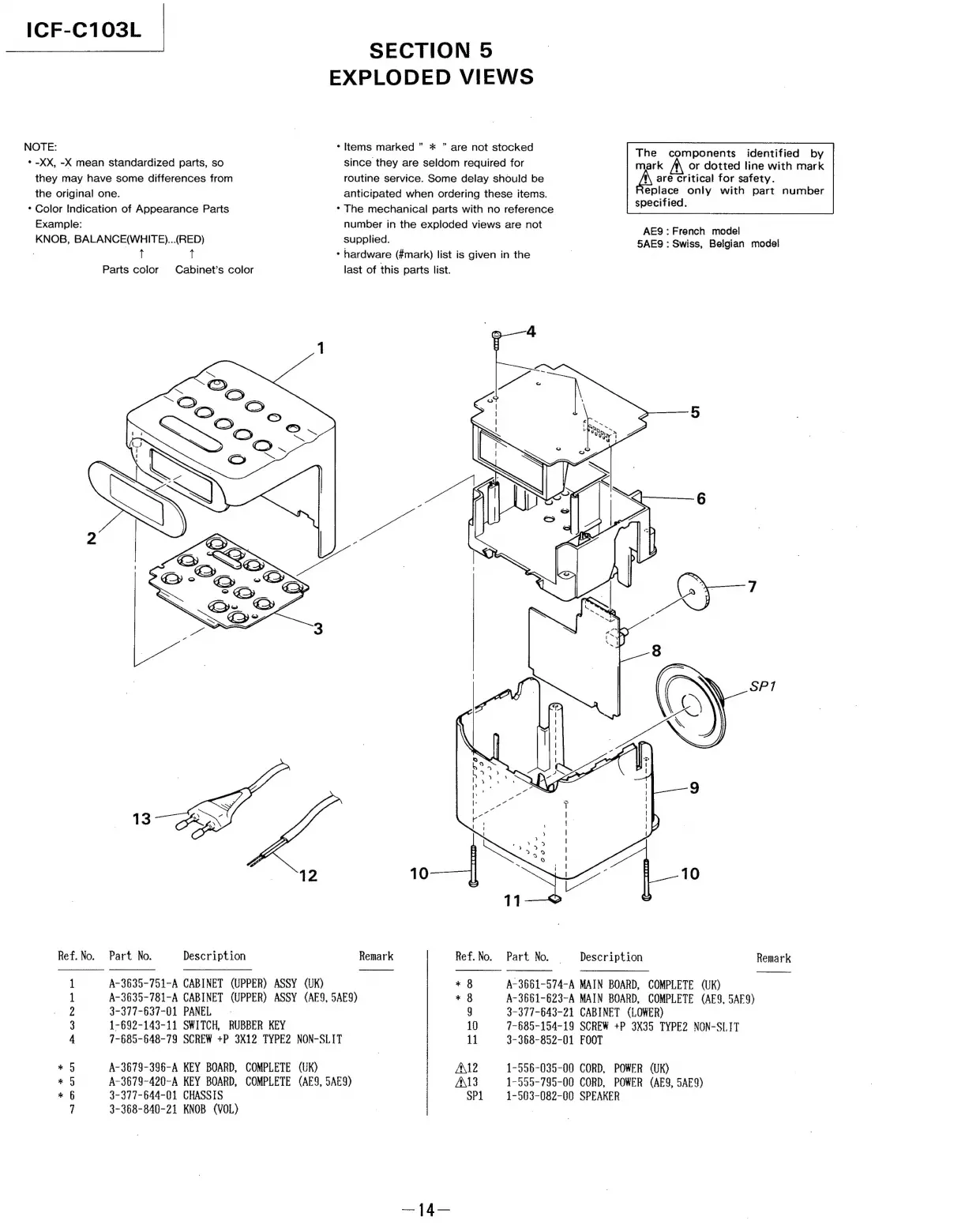

SECTION 5
EXPLODED VIEWS
* Items marked ” * ” are not stocked
since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items.
* The mechanical parts with no reference
number in the exploded views are not
supplied.
* hardware (#mark) list is given in the
last of this parts list.
The components identified by
mark A or dotted line with mark
are Critical for safety.
eplace only with part number
specified.
AE9: French model
5AEQ9 : Swiss, Belgian model
Ref. No. Part No. Description Remark Ref.No. Part No. — Description Remark
1 A-3635-751-A CABINET (UPPER) ASSY (UK) * 8 A-3661-574-A MAIN BOARD, COMPLETE (UK)
1 A-3635-781-A CABINET (UPPER) ASSY (AE9, 5AE9) + 8 A-3661-623-A MAIN BOARD, COMPLETE (AE9, 5AF9)
2 3-377-637-01 PANEL g 3-377-643-21 CABINET (LOWER)
3 1-692-143-11 SWITCH, RUBBER KEY 10 7-685-154-19 SCREW +P 3X35 TYPE2 NON-SLIT
4 7-685-648-79 SCREW +P 3X12 TYPE2 NON-SLIT 11 3-368-852-01 FOOT
#5 A-3679-396-A KEY BOARD, COMPLETE (UK) A\12 1-556-035-00 CORD, POWER (UK)
#5 A-3679-420-A KEY BOARD, COMPLETE (AE9, 5AE9) AM13 1-555-795-00 CORD, POWER (AE9, 5AE9)
* 6 3-377-644-01 CHASSIS SP1 1-503-082-00 SPEAKER
7 3-368-840-21 KNOB (VOL)
