Sony ICF-C150 - Section 5 Exploded Views

– 9 –
ICF-C102/C150
SECTION 5

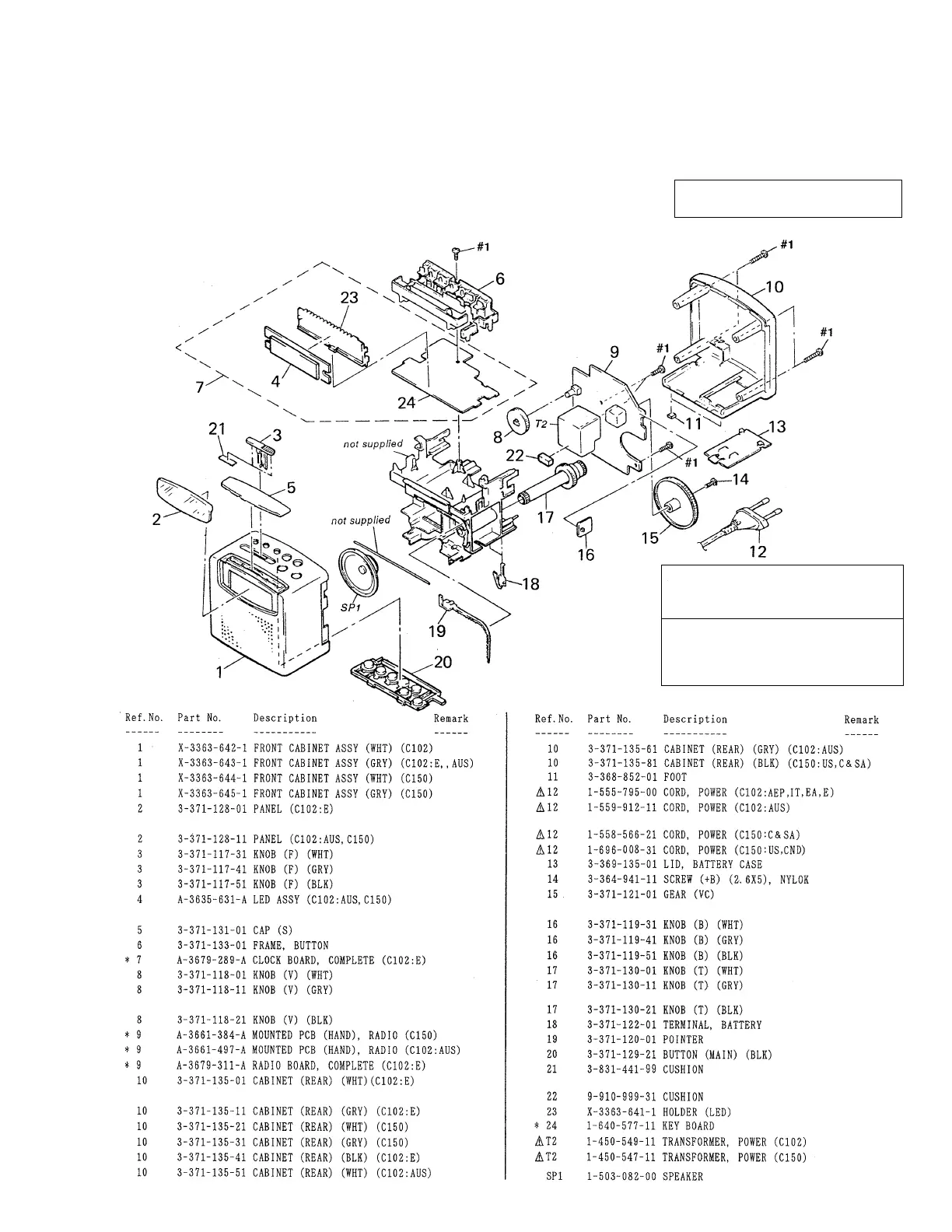

EXPLODED VIEWS
Ver 1.1 2002.10
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• The constrution parts of an assembled part are in-
dicated with a collation number in the remark col-
umn.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une piéce portant le
numéro spécifié.
• Abbreviation
AUS: Australian
CND : Canadian
C&SA : Central & South America
When indicating parts by reference number,
please include the board name.
