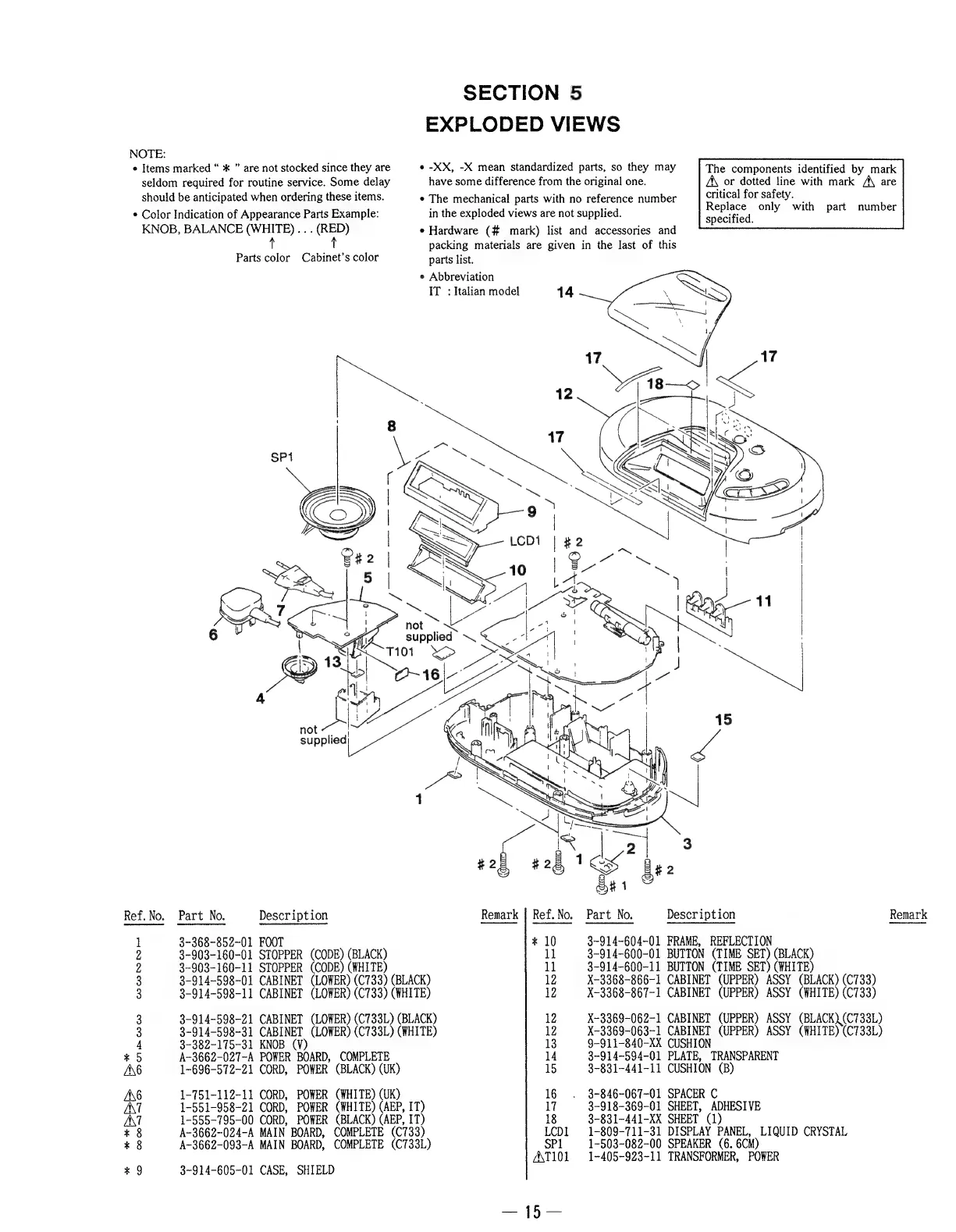

SECTION 5
EXPLODED VIEWS
NOTE:
e Items marked “ * ” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
* Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)... (RED)
ij t
Parts color Cabinet’s color parts list.
* -XX, -X mean standardized parts, so they may
have some difference from the original one.
* The mechanical parts with no reference number
in the exploded views are not supplied.
e Hardware (# mark) list and accessories and
packing materials are given in the last of this
¢ Abbreviation
IT: Italian model
supplied
Ref. No. Part No.
3-368-852-01 FOOT
3-903-160-01 STOPPER (CODE) (BLACK)
3~903-160-11 STOPPER (CODE) (WHITE)
3-914-598-01 CABINET (LOWER) (C733) (BLACK)
3-914-598-11 CABINET (LOWER) (C733) (WHITE)
3-914~598-21 CABINET (LOWER) (C733L) (BLACK)
3-914-598-31 CABINET (LOWER) (C733L) (WHITE)
3-382-175-31 KNOB (¥)
A-3662-027-A POWER BOARD, COMPLETE
1-696-572-21 CORD, POWER (BLACK) (UK)
1-751-112-11 CORD, POWER (WHITE) (UK)
1-551-958-21 CORD, POWER (WHITE) (AEP, IT)
1-555-795-00 CORD, POWER (BLACK) (AEP, IT)
A-3662-024-A MAIN BOARD, COMPLETE (C733)
A~3662-093-A MAIN BOARD, COMPLETE (C733L)
3~914-605-01 CASE, SHIELD
Description
pipe -ac eel a
co ooo SII OD OO bh 9 GO eo © DO DOF
*
Remark | Ref. No. Part No.
14
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Description Remark
3-914-604-01 FRAME, REFLECTION
3~914-600-01 BUTTON (TIME SET) (BLACK)
3-914-600-11 BUTTON (TIME SET) (WHITE)
X-3368-866-1 CABINET (UPPER) ASSY (BLACK) (C733)
X-3368-867-1 CABINET (UPPER) ASSY (WHITE) (C733)
X-3369-062-1 CABINET (UPPER) ASSY (BLACK) (C733L)
X-3369-063-1 CABINET (UPPER) ASSY (WHITE) (C733L)
9-911-840-XX CUSHION
3-914-594-01 PLATE, TRANSPARENT
3-831-441-11 CUSHION (B)
3-846-067-01 SPACER C
3-918-369-01 SHEET, ADHESIVE
3-831-441-XX SHEET (1)
1-809-711-31 DISPLAY PANEL, LIQUID CRYSTAL
1-503-082-00 SPEAKER (6. 6CM)
1-405-923-11 TRANSFORMER, POWER
