Getting Started
15
Getting Started
5 HDMI IN 6
HDMI/
R-AUDIO-L
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital
audio/video interface between this TV and any HDMI-equipped audio/video equipment, such
as a set-top box, DVD player, and A/V receiver. HDMI supports enhanced, or high-definition
video, plus digital audio.
If the equipment has a DVI connector and not an HDMI connector, connect the DVI connector
to the HDMI IN (with HDMI-to-DVI cable or adapter) connector, and connect the audio jacks
to the AUDIO IN(L/R) jacks of HDMI IN. (DVI connector is for video signals only.)
Do not connect a PC to the TV’s HDMI input. Use the PC IN (RGB IN) input
instead when connecting a PC.
6 VIDEO IN 1
S VIDEO
Connects to the S VIDEO output jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than composite video (7).
7 VIDEO IN 1/3
VIDEO/
L(MONO)-
AUDIO-R
Connect to the composite video and audio output jacks on your A/V equipment such as a VCR
or other video equipment. A third composite video and audio (VIDEO 2) input is located on
the left side panel of the TV.
8 AUDIO OUT
(VAR/FIX)
Connect to the left and right audio input jacks of your audio or video equipment. You can use
these outputs to listen to your TV’s audio through your stereo system.
9 OPTICAL OUT
(PCM/DOLBY
*
DIGITAL)
Connects to the optical audio input of a digital audio equipment that is PCM/Dolby digital
compatible. (OPTICAL OUT is only available for digital channels.)
0 HD/DVD IN 4/5
(1080i/720p/
480p/480i)/
L-AUDIO-R
Connect to your DVD player’s or digital set-top box’s component video (YP
B
P
R
) and audio
(L/R) jacks. Component video provides better picture quality than the S VIDEO (6) or the
composite video (7) connections.
qa AC IN Connects the supplied AC power cord.
qs VHF/UHF RF input that connects to your Cable or VHF/UHF antenna.
* Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

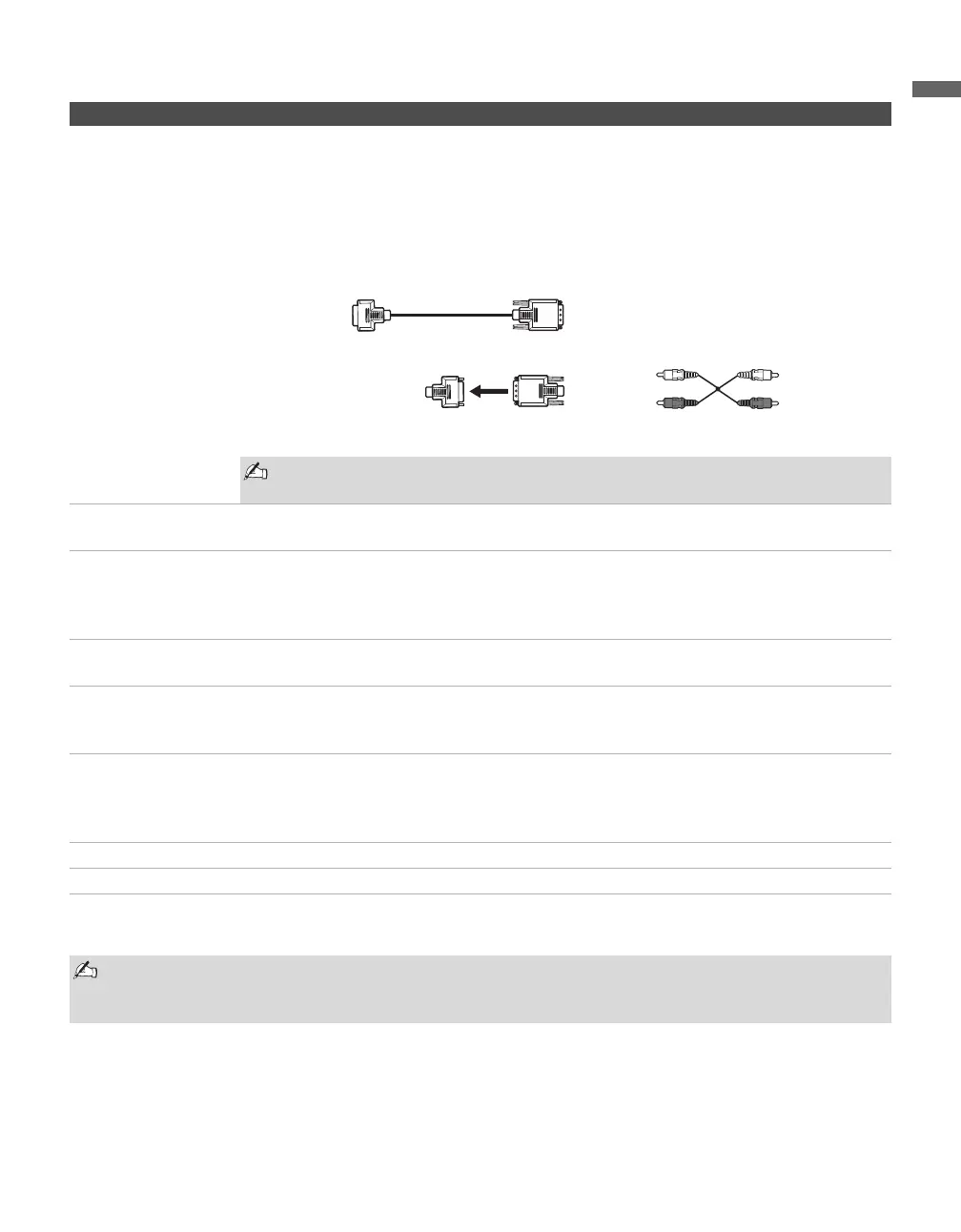

Item Description
HDMI-to-DVI cable
HDMI-to-DVI adapter Audio cable
Component video (YP
B
P
R
) or HDMI connection is necessary to view 480i, 480p, 720p, and 1080i
formats. Note that this TV displays all format types of picture in its native resolution of 1,366 dots × 768
lines.
