KDL-32FA500/37FA500
KDL-32FA500/37FA500
76
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

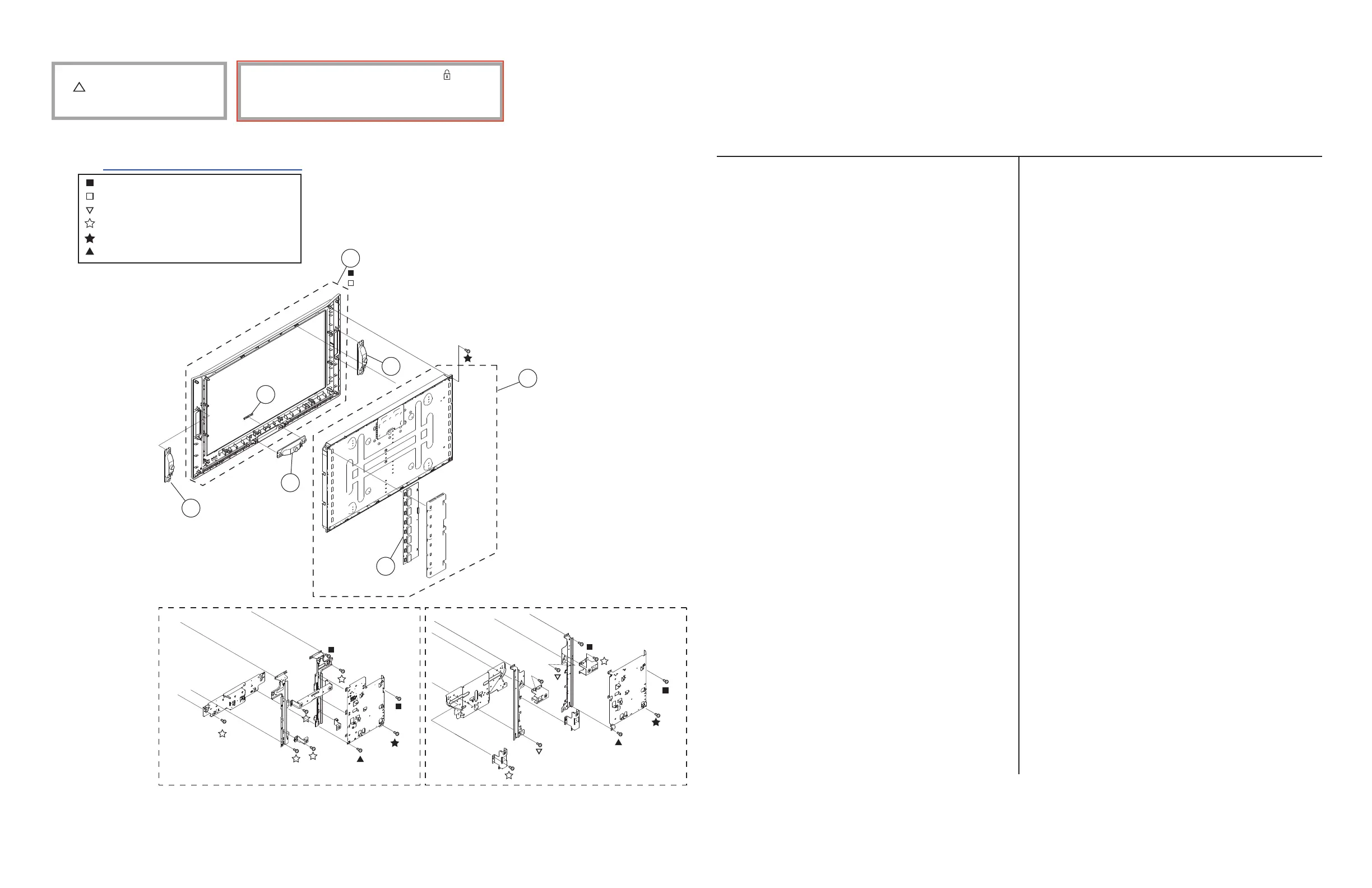

4-4. BEZEL ASSEMBLY, LCD PANEL AND SPEAKERS
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
151 A-1675-628-A BEZEL COMPLETE ASSEMBLY(32) [152]
(KDL-32FA500 ONLY)
151 A-1701-069-A BEZEL COMPLETE ASSEMBLY(37) [152]
(KDL-37FA500 ONLY
152 4-103-642-21 EMBLEM, SONY NO.8
153 1-826-883-12 LOUDSPEAKER (4.2X15CM)
154 1-826-883-22 LOUDSPEAKER (4.2X15CM)
155 N/A LCD PANEL (32INCH WXGA TFT) [156]
(KDL-32FA500 ONLY)
FOR ALL LCD PANEL PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
155 N/A LCD PANEL (37INCH WXGA TFT) [156]
(KDL-37FA500 ONLY
FOR ALL LCD PANEL PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
156 N/A ETC - INVERTER MT BOARD
(KDL-32FA500 ONLY)
FOR ALL ETC-INVERTER MT BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
156 N/A ETC - INVERTER MT BOARD
(KDL-37FA500 ONLY
FOR ALL ETC-INVERTER MT BOARD PART NUMBER INFORMATION
REFER TO THE LCD PANELS SERVICE MANUAL
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)
2-580-606-01 SCREW, +PSW M5X8
2-580-600-01 SCREW, +PSW M4X8
2-580-654-01 SCREW, +PWTP2 4X16
2-580-629-01 SCREW, +BVST 3X8
151
153
154
153
152
156
155
(37)
KDL-37FA500KDL-32FA500
☛
☛
☛
☛
To Next Page
