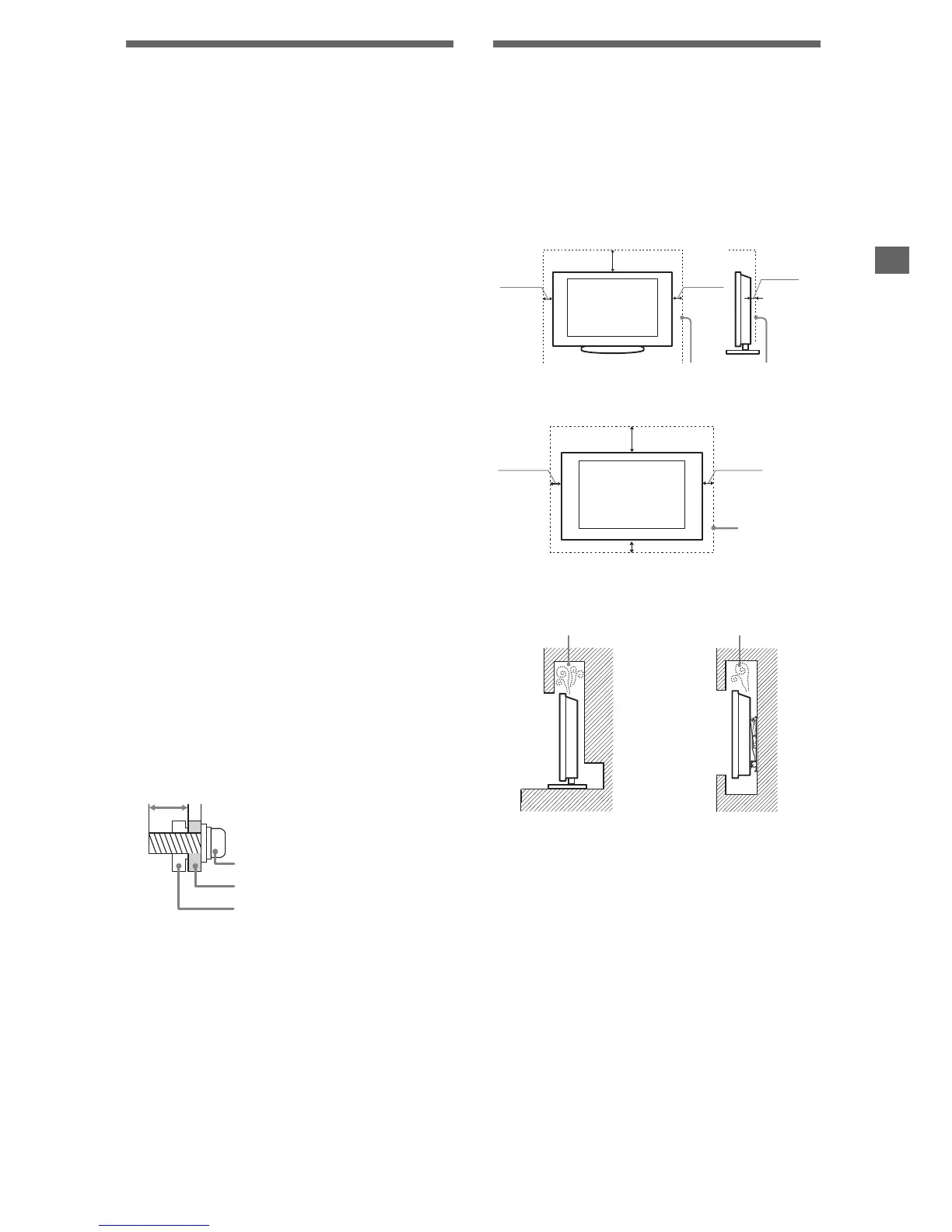

Page #13 background imageLoading...
Page #13 background image
13
Setting up your TV
Using a Wall-Mount Bracket
Your TV can be mounted on a wall using a
Wall-Mount Bracket (not supplied) out of the
box as packaged. Some larger size TV may
require detaching the Table-Top Stand; see
“Detaching the Table-Top Stand from the TV”
(page 12).
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety reasons,
Sony strongly recommends that you use the
Wall-Mount Bracket designed for your TV
and the installation should be performed by
a Sony dealer or licensed contractor.
Follow the instruction guide provided with
the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing
this TV, especially to determine the
strength of the wall for withstanding the
TV’s weight.
Be sure to use the screws supplied with the
Wall-mount bracket when attaching the
mounting hooks to the TV set.
The supplied screws are designed so that
they are 8 mm to 12 mm in length when
measured from the attaching surface of the
mounting hook.
The diameter and length of the screws differ
depending on the Wall-mount bracket
model. Use of screws other than those
supplied may result in internal damage to
the TV set or cause it to fall, etc.
Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small children.
~
Read the supplied Safety Booklet for additional
safety information.
Installing the TV Against a
Wall or Enclosed Area
Make sure that your TV has adequate
ventilation. Allow enough space around the
TV as shown below. Avoid operating the TV at
temperatures below 41 °F (5 °C).
~
Inadequate ventilation can lead to overheating of
the TV and may cause damage to your TV or
cause a fire.
8-12 mm
Screw
(supplied with the
Wall-mount bracket)
Mounting Hook
Hook attachment on rear of TV
set
(30 cm)
11
7
/
8
inches
(6 cm)
inches
4 inches
(10 cm)
4 inches
(10 cm)
2
3
/
8
Leave at least this much space around the set.
Installed with stand
inches
11
7
/
8
4 inches
(10 cm)
4 inches
(10 cm)
4 inches (10 cm)
(30 cm)
Installed on the wall
Leave at
least this
much space
around the
set.
Never install the TV set as follows:
Air circulation is blocked.
Air circulation is blocked.
Wall Wall
