Sony KV-29LS30E - Exploded Views and Parts Lists; Chassis Exploded View

SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

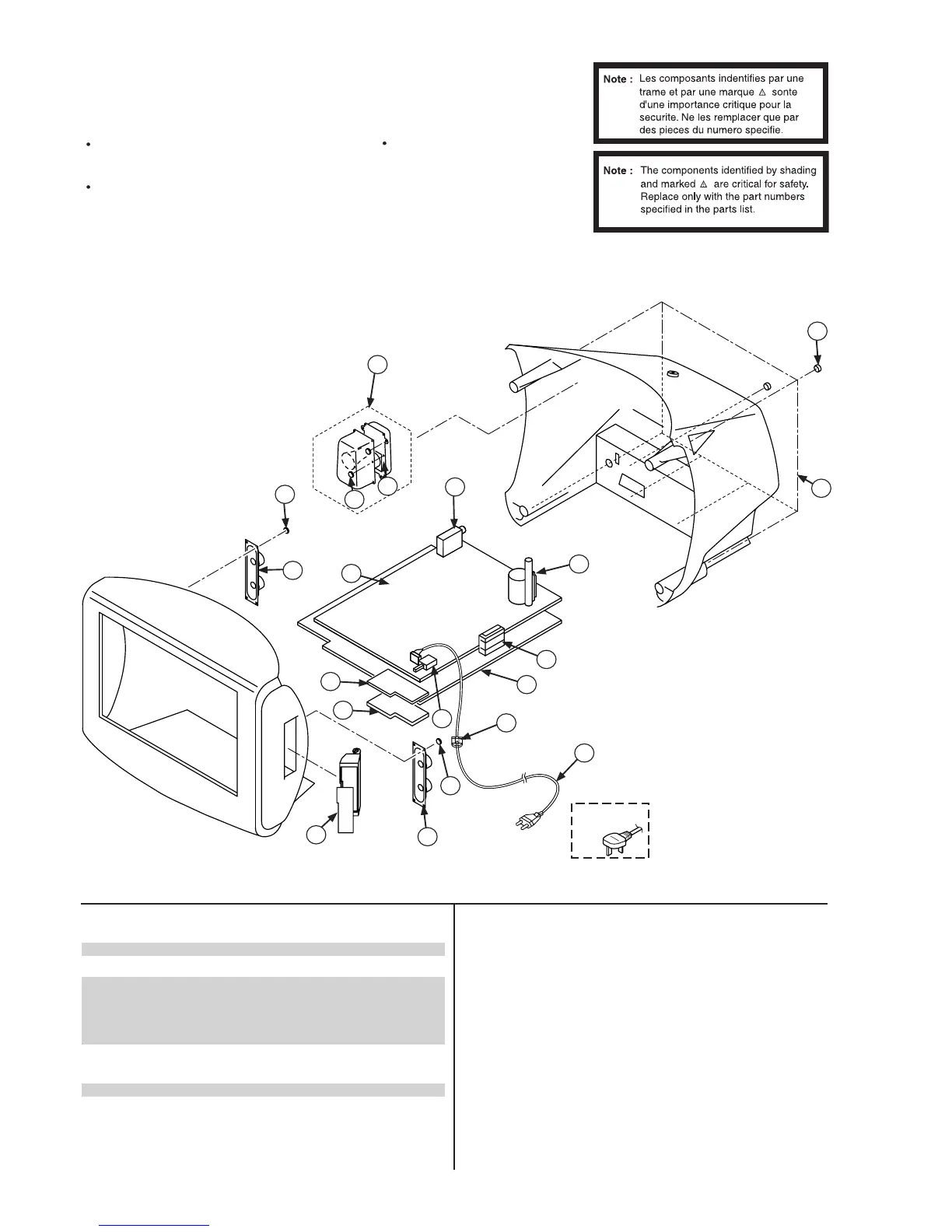

6-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
44
1 *A-1625-001-A F2 BOARD, COMPLETE
2 *4-206-055-01 BRACKET, F2
3 £ 1-571-433-31 SWITCH, PUSH (AC POWER)
4 *4-202-531-01 AC CORD LOCK (SC)
5 £ 1-765-286-11 CORD POWER (KV-29LS30E/29LS30K/
KV-29LS35E/29LS35K)
£ 1-776-204-11 POWER CORD, FILTER (KV-29LS30U)
£ 1-776-204-12 POWER CORD, FILTER (KV-29LS35B)
6 *4-206-048-01 BRACKET, MAIN
7 1-424-733-11 COIL, PFC CHOKE 65MMH
8 £ 1-453-308-31 TRANSFORMER ASSY, FLYBACK (NX-4521//Z2B4)
9 8-598-533-00 FRONTEND BTF-EC411 (KV-29LS30E/29LS30K
KV-29LS35E/29LS35K)
8-598-529-00 FRONTEND BTF-EU611 (KV-29LS30U)
8-598-535-10 FRONTEND BTF-EF411 (KV-29LS35B)
10 *A-1632-925-A A BOARD, COMPLETE (KV-29LS30E/29LS30K)
*A-1632-933-A A BOARD, COMPLETE (KV-29LS30U)
*A-1632-932-A A BOARD, COMPLETE (KV-29LS35B)
*A-1632-922-A A BOARD, COMPLETE (KV-29LS35E/29LS35K)
11 4-205-945-11 REAR COVER (KV-29LS30)
4-205-945-01 REAR COVER (KV-29LS35)
12 7-685-663-79 SCREW +BVTP 4x16 TYPE 2 IT-3
13 *A-1678-205-A WOOFER COMPLETE ASSY 14,15
14 1-529-417-11 SPEAKER (8CM)
15 7-685-663-71 SCREW +BVTP 4x16 TYPE 2 IT-3
16 1-529-408-11 SPEAKER (4.2x24CM)
17 4-384-096-01 SCREW +BVTP 4x16 TYPE 2 IT-3
18 *A-1646-239-A H2 BOARD, COMPLETE
UK Models
only
1
2
3
4
5
16
17
18
6
7
8
9
11
10
12
13
15
14
16
17
