• MB-525 Mounting Bracket
• VF-509 ENG Kit (Viewing Hood, Carrying Handle and
Connector Protector)
• BP-GL95/BP-GL65 Rechargeable Lithium-ion Battery Pack
• BP-L60S Lithium-ion Battery Pack
• BC-L70 Lithium-ion Battery Charger
Distributed by
MK10323V1IW05NOV
© 2005 Sony Corporation. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Images on monitors are simulated.
Sony and LUMA are trademarks of Sony Corporation.
Specifications
Optional Accessories

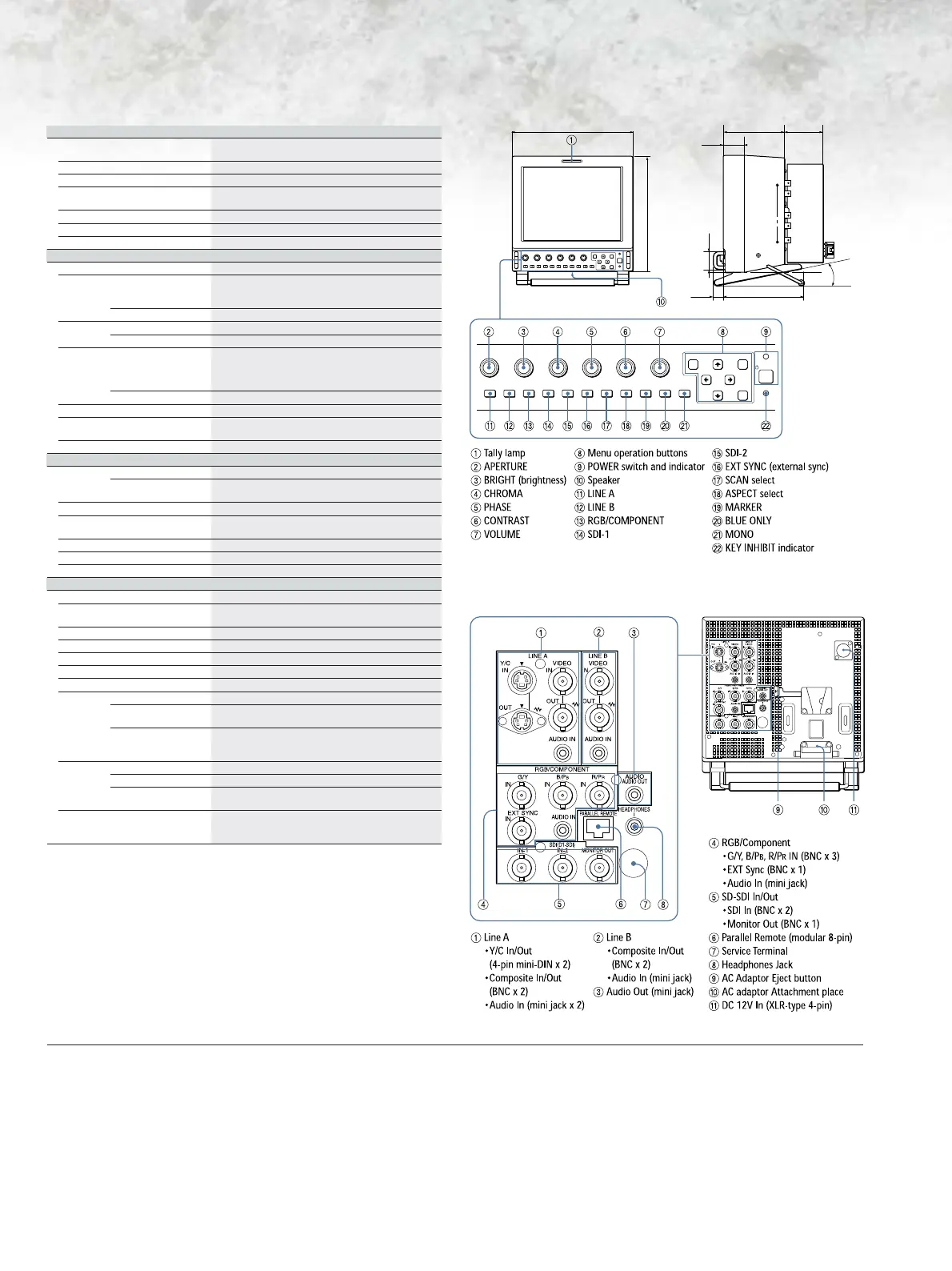

Dimensions & Control Panel
Connector Panel
LMD-9030
Unit: mm (inches)
Picture Performance
Type a-Si TFT Active Matrix LCD with a multi-layer AR-coated
protection panel
Resolution 640 x 680 dots
Pixel efficiency 99.99%
Picture Size (H x W), (Viewable area) Approx. 170.9 x 128.2 mm, (Approx. 6
3
/
4
x 5
1
/
8
inches)
(Diagonal) 213.6 mm (8.4-inch)
Aspect 4:3
Colors 16,770,000 colors
Viewing Angle 85°/85°/85°/85° (typical) (up/down/left/right contrast>10:1)
Input
Line A Composite BNC x 1, 1.0 Vp-p +3dB, -6 dB sync negative
4-pin mini-DIN x 1
Y/C
Y : 1.0 Vp-p + 3dB, -6 dB sync negative
C : 0.286 Vp-p ±3 dB (NTSC), 0.3 Vp-p ±3 dB (PAL)
Audio Mini jack x 1, -5 dBu 47 kΩ or higher
Line B Composite BNC x 1, 1.0 Vp-p +3 dB, -6 dB sync negative
Audio Mini jack x 1, -5 dBu 47 kΩ or higher
RGB/ RGB/Component BNC x 3, RGB input : 0.7 Vp-p +3 dB, -6 dB
Component (Sync On Green, 0.3 Vp-p sync negative)
Component input : 0.7 Vp-p +3 dB, -6 dB
(75% chrominance standard color bar signal)
Audio Mini jack x 1, -5 dBu 47 kΩ or higher
Ext.sync
BNC x 1, 0.3 to 4 Vp-p ± bipolarity ternary or negative polarity binary
D1-SDI BNC x 2, Sampling frequency :Y/R-Y/B-Y 13.5 MHz,
Quantization 10 bits/sample
Remote Parallel remote Modular connector 8-pin x 1(Assignable)
Output
Line A Composite BNC x 1, Loop-through, with 75 Ω automatic termination
Y/C 4-pin mini-DIN x 1, Loop-through, with 75 Ω automatic
termination
Line B Composite BNC x 1, Loop-through, with 75 Ω automatic termination
D1-SDI Monitor output BNC x 1, Output signal amplitude : 800 mVp-p ±10%,
Output impedance : 75 Ω umbalanced
Audio output Mini jack x 1, Loop-through
Headphones output Mini jack x 1(Monaural), Loop-through
Speaker output 0.5 W (Monaural)
General
Power Consumption Approx. 16 W, With AC Adaptor : Approx. 22 W
Power requirement AC 100 to 240 V, 50/60 Hz, 0.82 to 0.42 A, DC 12 V 1.6 A,
Rechargeable Battery Pack
Operating Temparature 0 to 40 °C
Operating Humidity 30 to 85 % (No condensation)
Operating/Storage/Trans. Pressure 700 to 1060 hPa
Storage & Transport Temperature -20 to 60 °C
Storage & Transport Humidity 0 to 90 %
Dimensions (W x H x D) Approx. 216 x 206 x 136.1 mm (8
5
/
8
x 8
1
/
8
x 5
3
/
8
inches)
Dimension with the
Approx. 216 x 230 x 159.5 mm
supplied stand
(8
5
/
8
x 9
1
/
8
x 6
3
/
8
inches)
Dimension
with the
Approx. 216 x 230 x 210 mm
supplied stand and
(8
5/8 x 9 1/8 x 8 3/8 inches)
AC adaptor
Mass Approx. 2.9 Kg (6 lb 6 oz)
With the supplied stand Approx. 3.1 Kg (6 lb 13 oz)
With the supplied stand
Approx. 3.8 Kg (8 lb 6 oz)
and AC adaptor
Supplied Accessories AC adaptor (1),AC Cord (1), AC plug holder (1),
Operating instructions (1), CD-ROM (1), Warranty card (1),
Using the CD-ROM Manual (1)
142 (5
5
/
8
)
11.5∞
107.5 (4
1
/
4
)
216 (8
5
/
8
)
37 (1
1
/
2
)
66.5 (2
5
/
8
)
31 (1
1
/
4
)
206 (8
1
/
8
)
APERTURE
LINE A LINE B
RGB
COMPONENT
SDI-1 SDI-2 SCAN ASPECT MARKER MONO
ENTER
KEY INHIBIT
RESET MENU
POWER
BLUE
ONLY
EXT
SYNC
BRIGHT CHROMA PHASE CONTRAST VOLUME
17.5 (
23
/
32
)
