MDR-7505
SECTION 1
DISASSEMBLY
Note : Disassemble the unit in the order as shown below.
Note : Follow the disassembly procedure in the numerical order given.
Set
Driver (L side)
Driver (R side)
Cord (with plug)
Hunger (R)
Hunger (L)

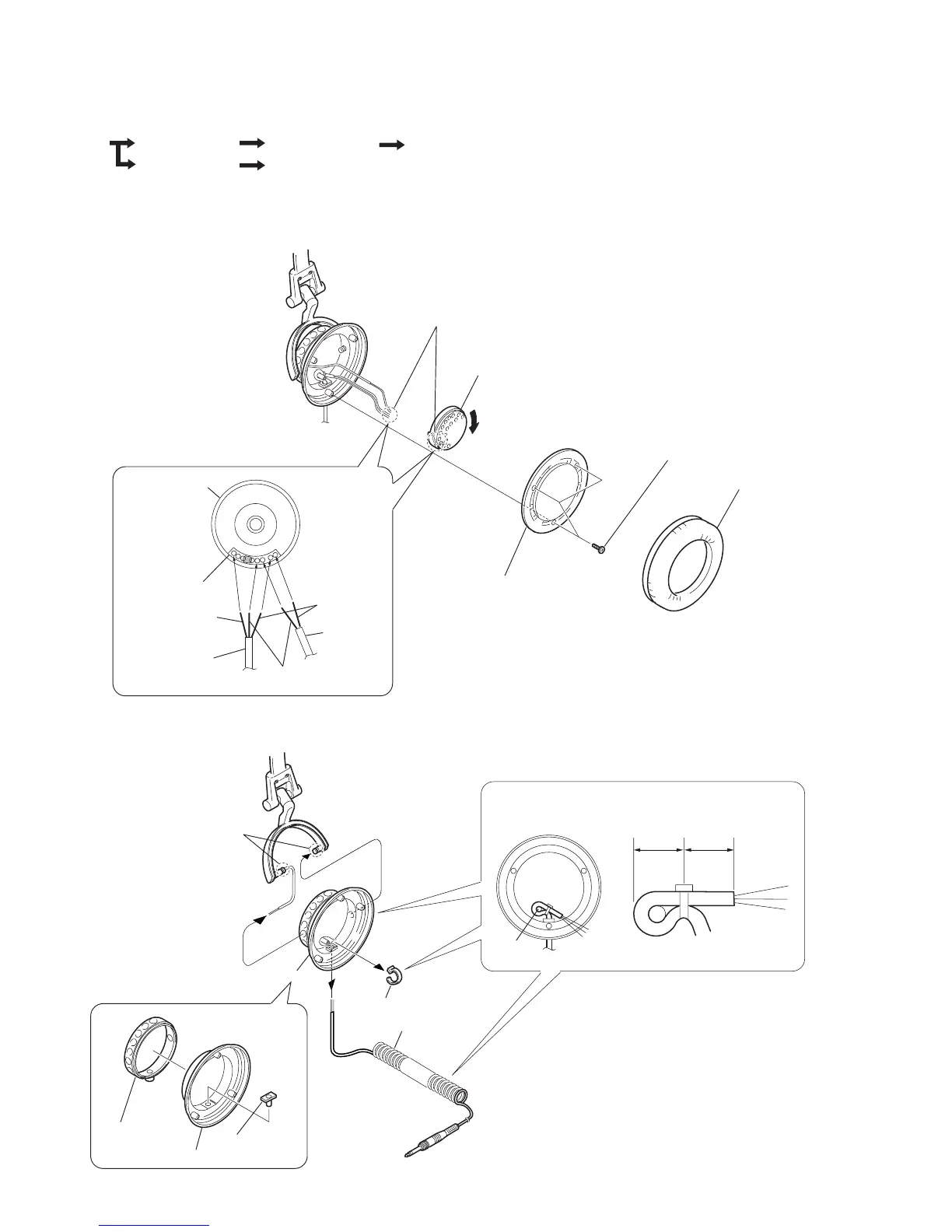

1-1. DRIVER (L SIDE)
1-2. CORD (WITH PLUG)
1 Ear pad
2 Three screws (+P2.6 × 6)
3 Front assembly plate
4 Rotate it in the direction of the arrow.
6 Driver (headphone) (040F016)
5 Remove the
five solderings
Red
Cord
(with plug)
Marking side
Driver (L side)
Green
Precaution during installation
Harness
Natural
1 Remove the wiring bracket.
3 Two claws
2 Cord
(with plug)
A
15 mm 15 mm
1 Bushing
3 Housing (L)
2 Housing
ring (L)
4
Precaution during installation
Hook the loop of the
cordaround the rib of
the portion A.
Fasten the cord at the specified
dimension as shown, to cut the
excessive length.
To Next Page
