MEX-GS810BH/N6000BH

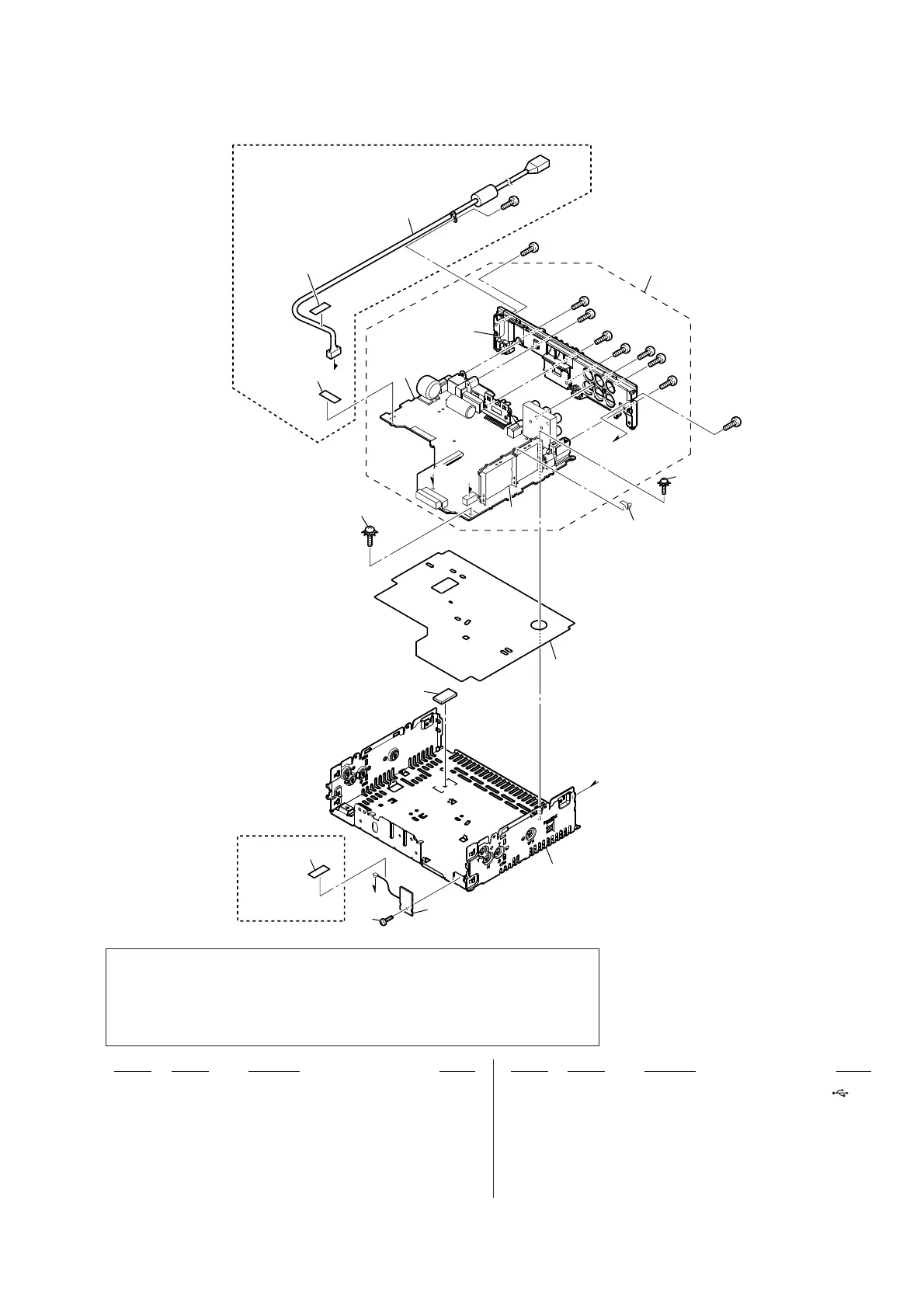

6-2. CHASSIS SECTION
51 3-042-244-01 SCREW (T)
52 4-472-287-01 SHEET HEAT TRANSFER
53 4-410-504-01 SCREW (+PTT 2.6X6), GROUND POINT
54 A-2045-586-A MAIN BOARD, COMPLETE (N6000BH) (See Note)
54 A-2045-587-A MAIN BOARD, COMPLETE (GS810BH) (See Note)
55 2-021-848-01 SHEET (TU), GROUND
BT1 1-754-894-21 BT, ANTENNA
CNC1 1-846-892-31 CONNECTION CABLE (AUTOMOBILE) ( )
(GS810BH)
TU01 A-1876-911-A TUX-HDR01 (TUNER UNIT)
#3 7-685-793-01 SCREW +PTT 2.6X8 (S)
#4 7-685-794-01 SCREW +PTT 2.6X10 (S)
#5 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
board
TU01
not supplied
CNC1
not supplied
not supplied
not supplied
not supplied
#4
#4
#4
#5
#5
#5
#4
#3
#3
#3
53
53
52
51
54
BT1
D
E
E
D
55
F
F
(GS810BH)
not supplied
(N6000BH)
Note: When the complete MAIN board is replaced, it is necessary to replace knob (VOL)
(SV) assy simultaneously. Also, the destination setting, Bluetooth operation check and
Bluetooth information writing are necessary. Refer to “DESTINATION SETTING
METHOD” on page 4, “BLUETOOTH FUNCTION CHECKING METHOD USING
A CELLULAR PHONE” on page 7 and “BLUETOOTH INFORMATION WRITING
METHOD” on page 8.
