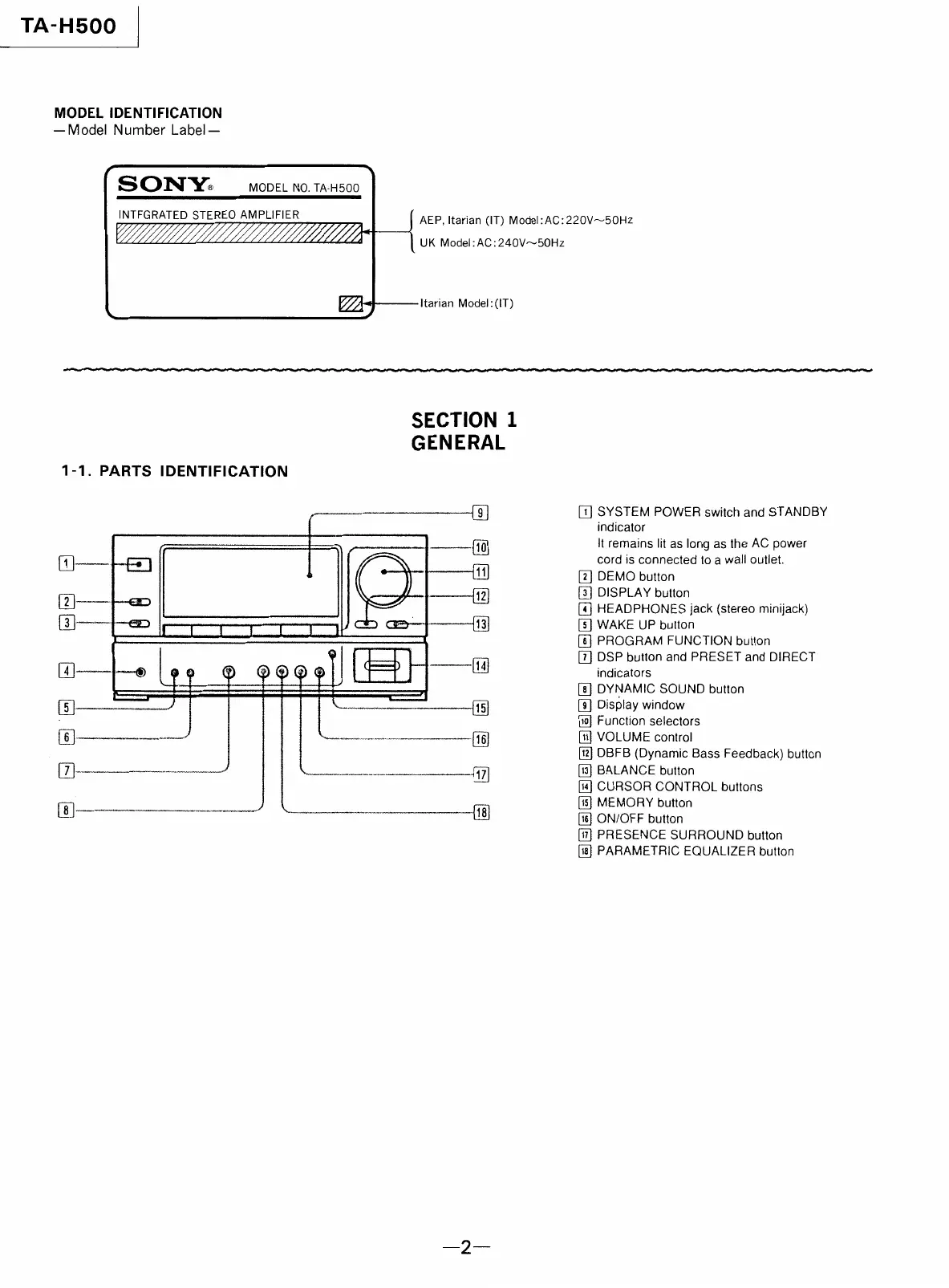

Sony MHC-5500 - Model Identification; Parts Identification

TA-H500
MODEL IDENTIFICATION
-Model Number Label-
MODEL NO. TA-H5OO
INTFGRATED STEREO AMPLIFIER
AEP, ltarian (IT)
Model:AC:22OV~5OHz
1-1. PARTS IDENTIFICATION
,,,,..~~
UK Model: AC: 24OV~5OHz
SECTION 1
GENERAL
--------------i9
rr=======:J=~ ------@
--{IT]
--illl
..___-t13
w-----
----------116
w--------·
----------,17
[[]-------·
------------18
-2-
[D SYSTEM POWER switch and STANDBY
indicator
lt remains lit as long as the AC power
cord is connected
to a wall outlet.
[I] DEMO button
[Il DISPLAYbutton
[TI HEADPHONES jack (stereo minijack)
[I) WAKE UP button
[I] PROGRAM FUNCTION button
IT] DSP button and PRESET and DIRECT
indicators
[I] DYNAMIC SOUND button
[I] Display window
(ill Function selectors
GD VOLUME control
[ill DBFB (Dynamic Bass Feedback) button
@] BALANCE button
[ill CURSOR CONTROL buttons
[ill MEMORY button
[ill ON/OFF button
@] PRESENCE SURROUND button
[ill PARAMETRIC EQUALIZER button
