Perform the following procedures 1 to 5 to hook up your system using the supplied cords and
accessories.
1 Connect the speakers.
Connect the right and left speaker cords to
the SPEAKER terminals as shown below.
2 Connect the sub woofer speaker.
(MHC-GX45 and MHC-RG440S only)
Connect the speaker cords to the SUB
WOOFER OUT jack and SUB WOOFER
CONTROL jack as shown below.
Getting Started
Hooking up the system

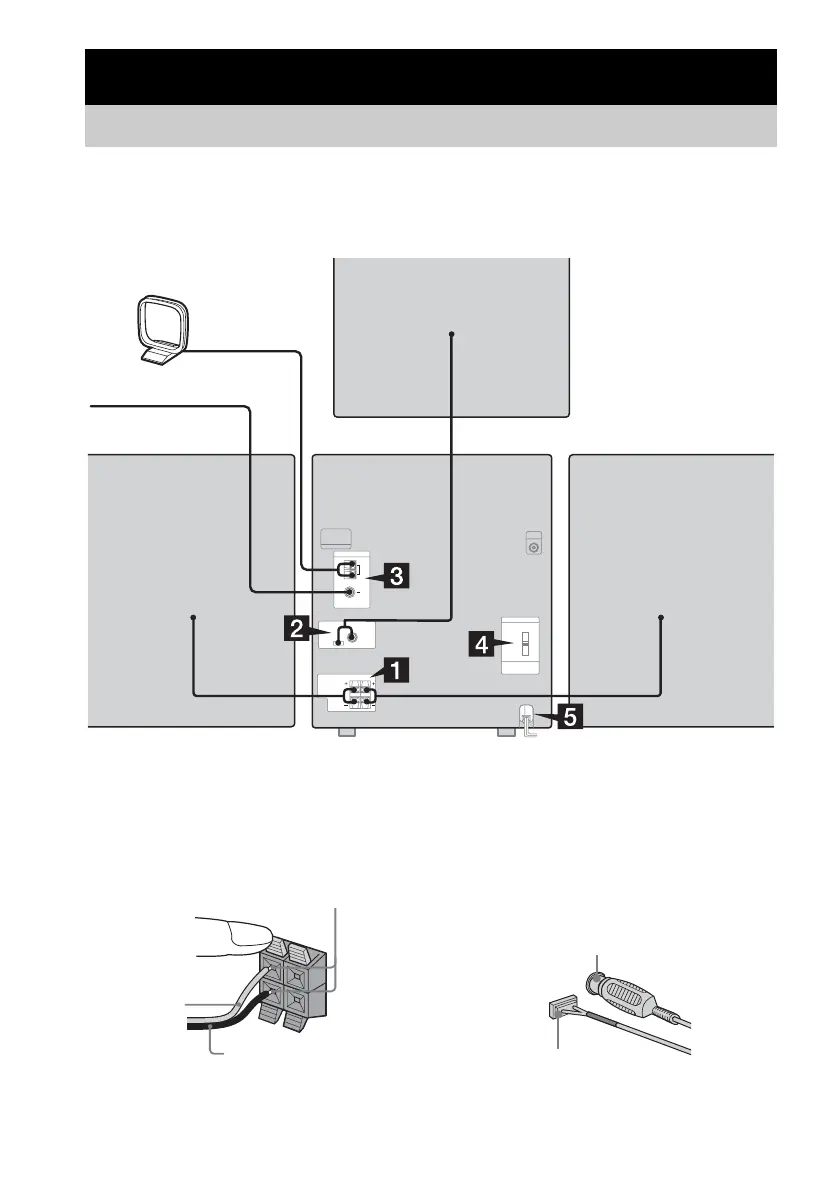

AM loop antenna
Front speaker (right) Front speaker (left)
FM lead antenna
Sub woofer speaker*
* MHC-GX45 and MHC-RG440S only
R
L
+
–
Black/Stripe (#)
Red/Solid (3)
Insert only the stripped portion
SUB WOOFER OUT jack
SUB WOOFER CONTROL jack
To Next Page
