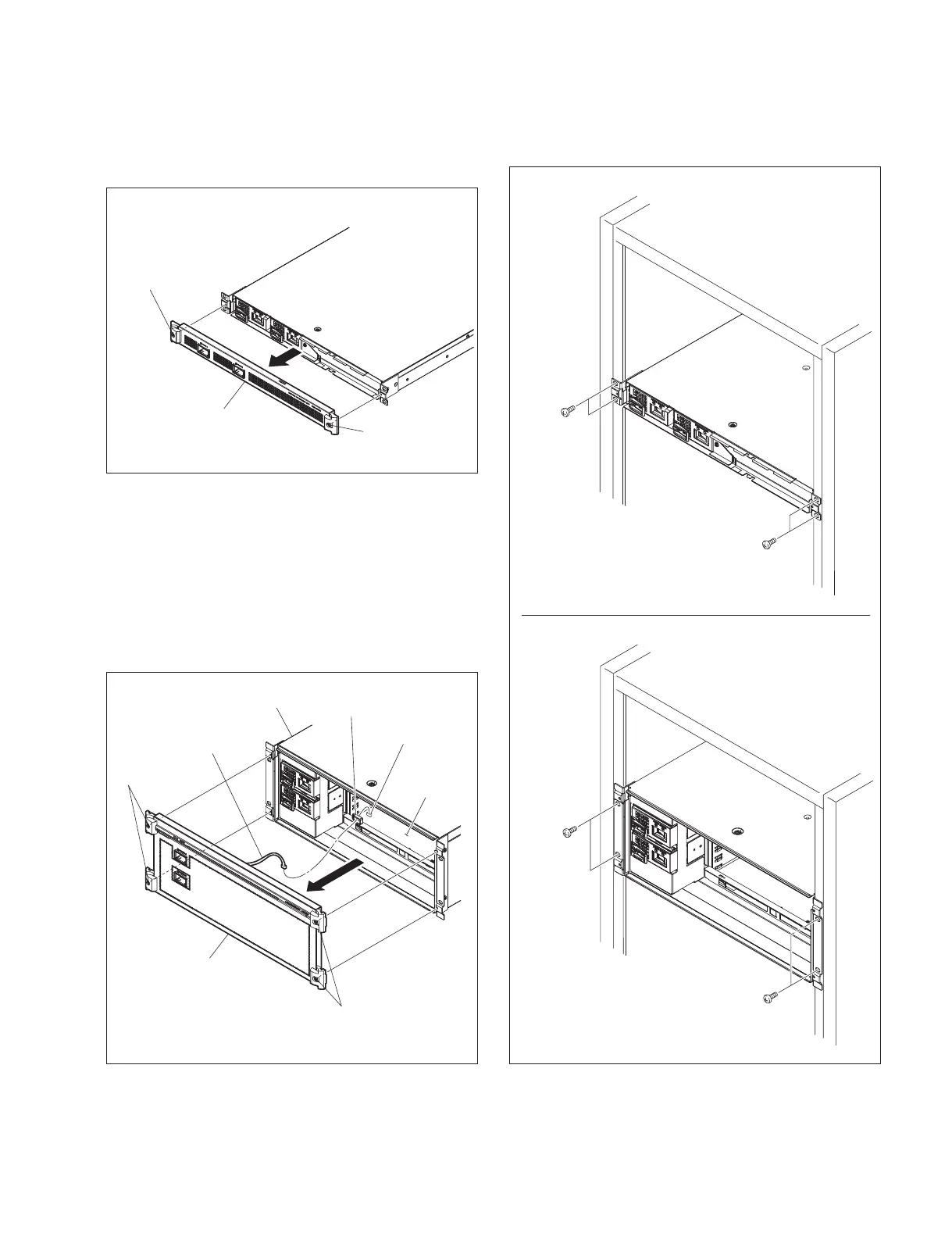

7. Loosen the two screws (with stopper) to detach the
front panel.
MKS-X7700
7. Perform the following procedure to detach the front
panel.
(1) Loosen the four screws (with stopper) and draw the
front panel.
(2) Open the clamper.
(3) Disconnect the harness from the connector on the
CA-90 board, and then detach the front panel.
MKS-X2700
Screw
(with stopper)
Screw
(with stopper)
Front panel
Screws
(with stopper)
Front panel
CA-90 board
Connector
Clamper
Harness
Screws
(with stopper)
MKS-X7700
8. Fix the rack angle in the rack using the specified
screws.
9. Attach the front panel to the equipment.
B5 )12
B5 )12
MKS-X7700
B5 )12
B5 )12
MKS-X2700
