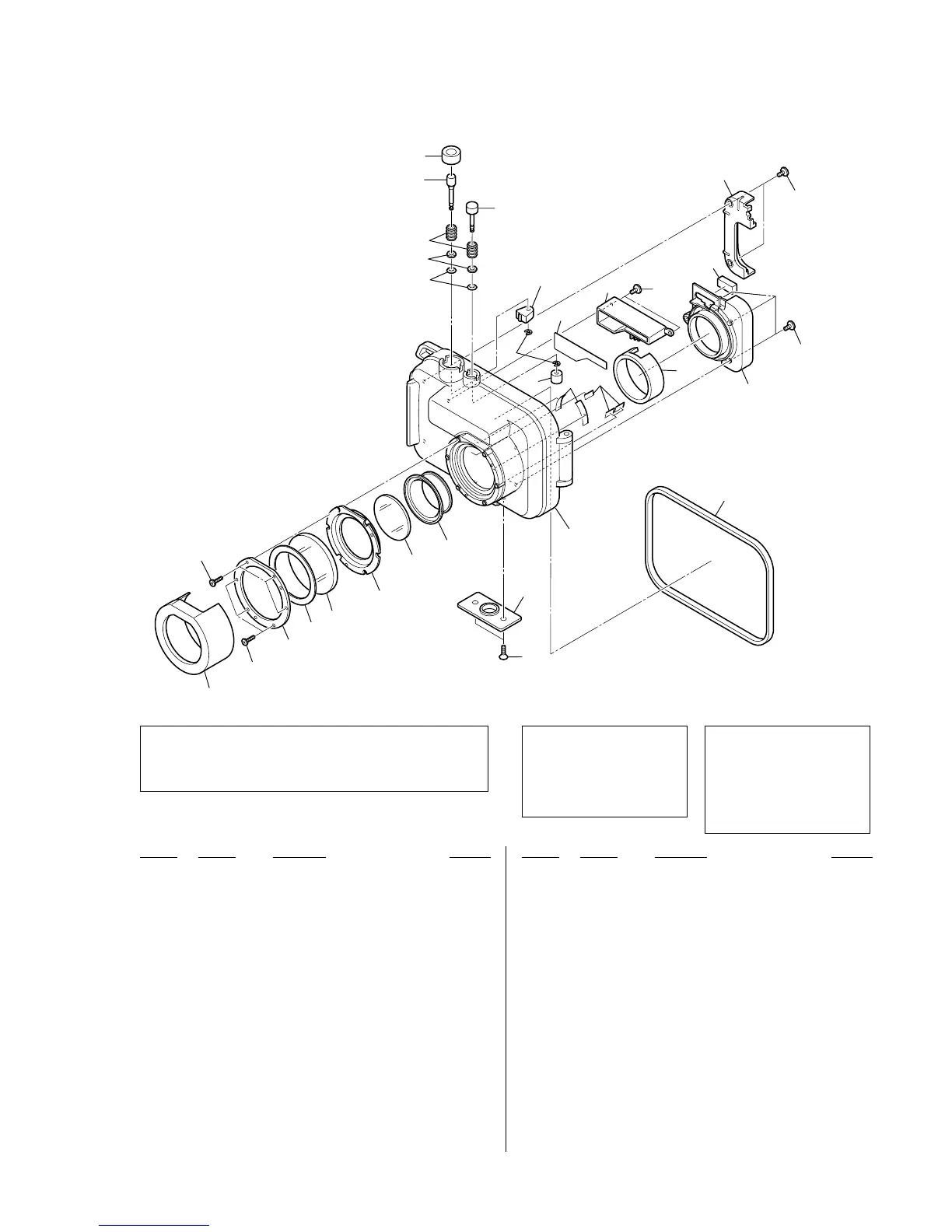

1-2. FRONT CABINET BLOCK
51 3-100-928-01 PROTECTOR, FRONT
52 3-099-459-01 TP1.7X5 #0
53 3-100-925-01 RETAINER, LENS WINDOW
54 3-100-989-01 GLASS (A), LENS WINDOW
55 3-100-926-01 PACKING (A), LENS WINDOW
56 3-100-990-01 GLASS (B), LENS WINDOW
57 3-100-927-01 PACKING (B), RANGE WINDOW
58 3-099-221-01 PLATE, TRIPOD SCREW
59 3-099-238-01 TP2X8 (PLATE)
60 3-100-924-01 CASE, FRONT
0 61 3-099-234-01 O RING (P2-A)
62 3-099-233-01 RETAINER (
φ
6.0), O RING
63 3-100-933-01 SPRING (C), PUSH BUTTON
64 3-100-931-01 PUSH BUTTON (SHUTTER)
65 3-100-932-01 PUCH BUTTON A
66 3-099-248-01 CAP (B), BUTTON
Ref. No. Part No. Description Remarks
3
* 67 3-214-173-01 SHEET, GLASS RETAINER
68 3-099-247-01 CAP (A), BUTTON
69 3-100-929-01 ILLUMINATOR
70 3-100-930-01 REFLECTOR
71 2-342-952-01 SCREW (1.7X4 #0-1), TP
72 3-100-935-01 RETAINER (L), MAIN
73 2-593-524-01 SCREW,TIP1.7X3 SPECIAL
74 3-100-934-01 RETAINER (R), MAIN
75 3-099-284-01 PACKING, DROP PROTECTION
76 3-099-223-01 CAP (SHUTTER)
* 77 3-214-172-01 CUSHION, FRONT
* 78 3-214-171-01 CUSHION (B), WEIGHT
* 79 3-214-170-01 CUSHION (A), WEIGHT
80 3-100-937-01 WEIGHT
81 2-589-173-01 RING (DIA 1.5), E
Ref. No. Part No. Description Remarks
La 0 marquée sont des pièces par
rapport à imperméable à l’eau.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Soyez sûr de vérifier vers le haut
d’imperméable à l’eau après la
réparation.
The marked “0” are parts in relation
to waterproof.
Replace these components with Sony
parts.
Be sure to check up waterproof after
repair.
(Note ) When putting grease the O-ring (Ref. No. 61), alwaysuse the
grease of the blue tube of the accessory. When using the grease
of the yellow tube and the grease of the other Inc.,
it hurts the O-ring and it causes the water leakage.
51
55
54
56
57
58
60
59
53
52
52
64
76
68
69
81
70
71
77
72
73
73
74
75
80
78
79
65
66
61
62
63
(Note)
67
