MPK-WB
2
3
3
8
9
12
13
35
35
36
14
6
6
6
7
4
17
22
23
23
24
24
24
24
24
25
25
25
25
25
26
27
28
29
30
31
32
32
33
34
20
15
11
10
5
5
1
19
(Note 1)
21
(Note 1)
(Note 1)
23
(Note 1)
23
23
(Note 1)
(Note 1)
(Note 2)
16
Front cabinet block (See page 3.)

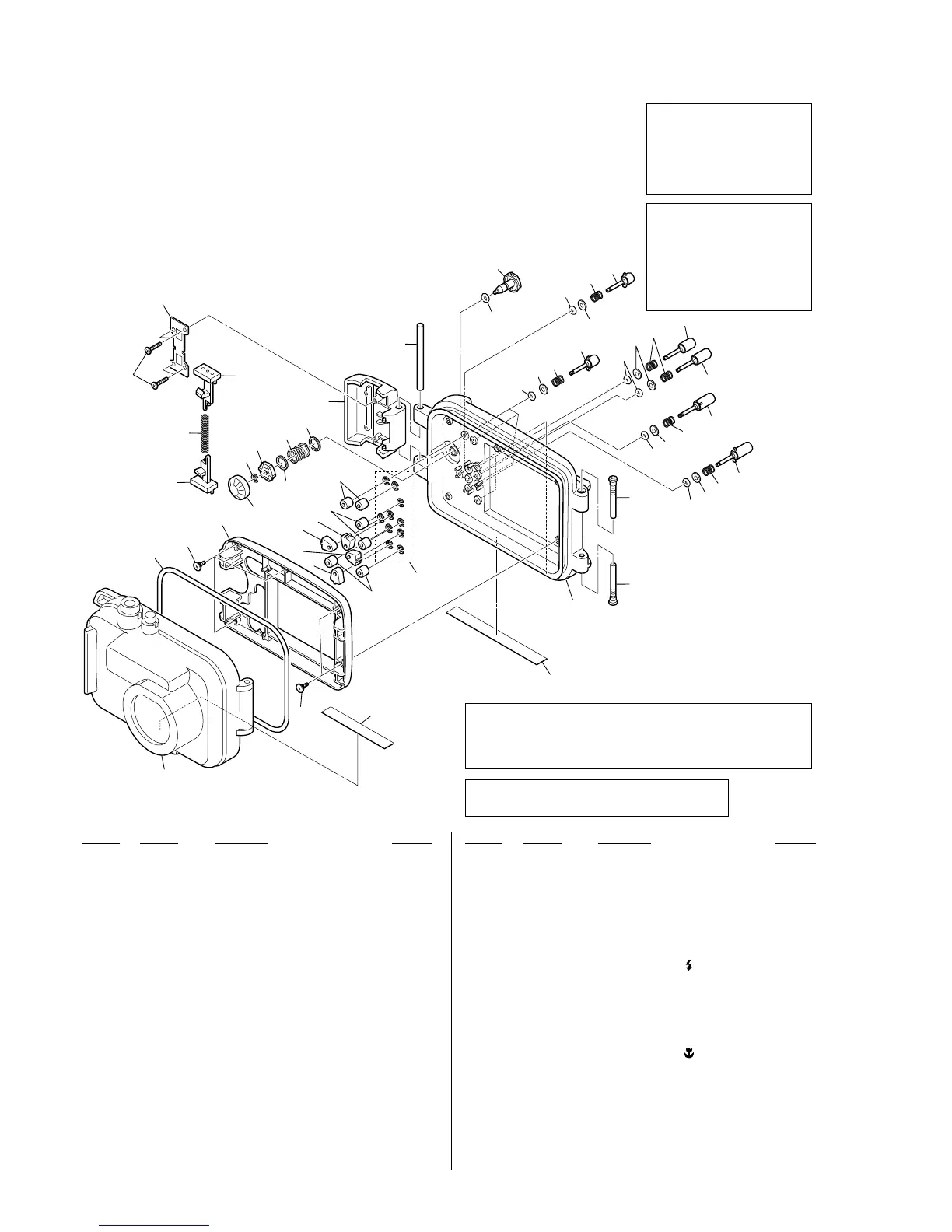

1-1. REAR CABINET BLOCK
SECTION 1
EXPLODED VIEWS
Ref. No. Part No. Description Remarks
1 3-087-452-01 LABEL, CAUTION
2 3-099-284-01 PACKING, DROP PROTECTION
3 2-593-524-01 SCREW,TIP1.7X3 SPECIAL
4 3-100-962-01 HOOD, INNER
5 3-099-248-01 CAP (B), BUTTON
6 3-099-247-01 CAP (A), BUTTON
7 2-589-173-01 RING (DIA 1.5), E
8 3-099-280-01 LOCK (B), BUCKLE
9 3-099-282-01 SPRING, BUCKLE
10 2-342-952-01 SCREW (1.7X4 #0-1), TP
11 3-099-281-01 PLATE, BUCKLE LOCK
12 3-099-279-01 LOCK (A), BUCKLE
13 3-100-957-01 RUBBER, MODE A
14 3-100-961-01 RING (DIA. 2.0), E
15 3-100-956-01 HEAD, MODE
16 3-100-953-01 SPACER (A), MODE
17 3-099-278-01 BUCKLE
19 3-099-252-01 SHAFT, BUCKLE
20 3-100-955-01 SPRING, MODE
0 21 3-100-959-01 O RING (P4-A)
22 3-100-952-01 DIAL, MODE
0 23 3-099-234-01 O RING (P2-A)
24 3-099-233-01 RETAINER (
φ
6.0), O RING
25 3-100-933-01 SPRING (C), PUSH BUTTON
26 3-099-244-11 PUSH BUTTON D
( )
27 3-099-244-01 PUSH BUTTON D
28 3-099-245-01 PUSH BUTTON B
29 3-100-958-01 PUSH BUTTON C
30 3-099-246-01 PUSH BUTTON E
31 3-099-246-11 PUSH BUTTON E
( )
32 3-099-285-01 SHAFT, HINGE
33 3-100-951-01 CASE, REAR
* 34 3-209-949-01 LABEL, O RING CAUTION
* 35 3-212-256-01 CAP (E), BUTTON
36 3-100-954-01 SPACER (B), MODE
Ref. No. Part No. Description Remarks
2
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “∗” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories are given in the last of the electrical
parts list.
• Abbreviation
CH: Chinese model
CND: Canadian model
La 0 marquée sont des pièces par
rapport à imperméable à l’eau.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Soyez sûr de vérifier vers le haut
d’imperméable à l’eau après la
réparation.
The marked “0” are parts in relation
to waterproof.
Replace these components with Sony
parts.
Be sure to check up waterproof after
repair.
(Note 1) When putting grease the O-ring (Ref. No. 21, 23), always
use the grease of the blue tube of the accessory. When using
the grease of the yellow tube and the grease of the other Inc.,
it hurts the O-ring and it causes the water leakage.
(Note 2) Only one E-ring (Ref. No.7) is supplied.
Confirm a necessary number when you order.
To Next Page
