Sony RMF-TX810U - Page 18

18

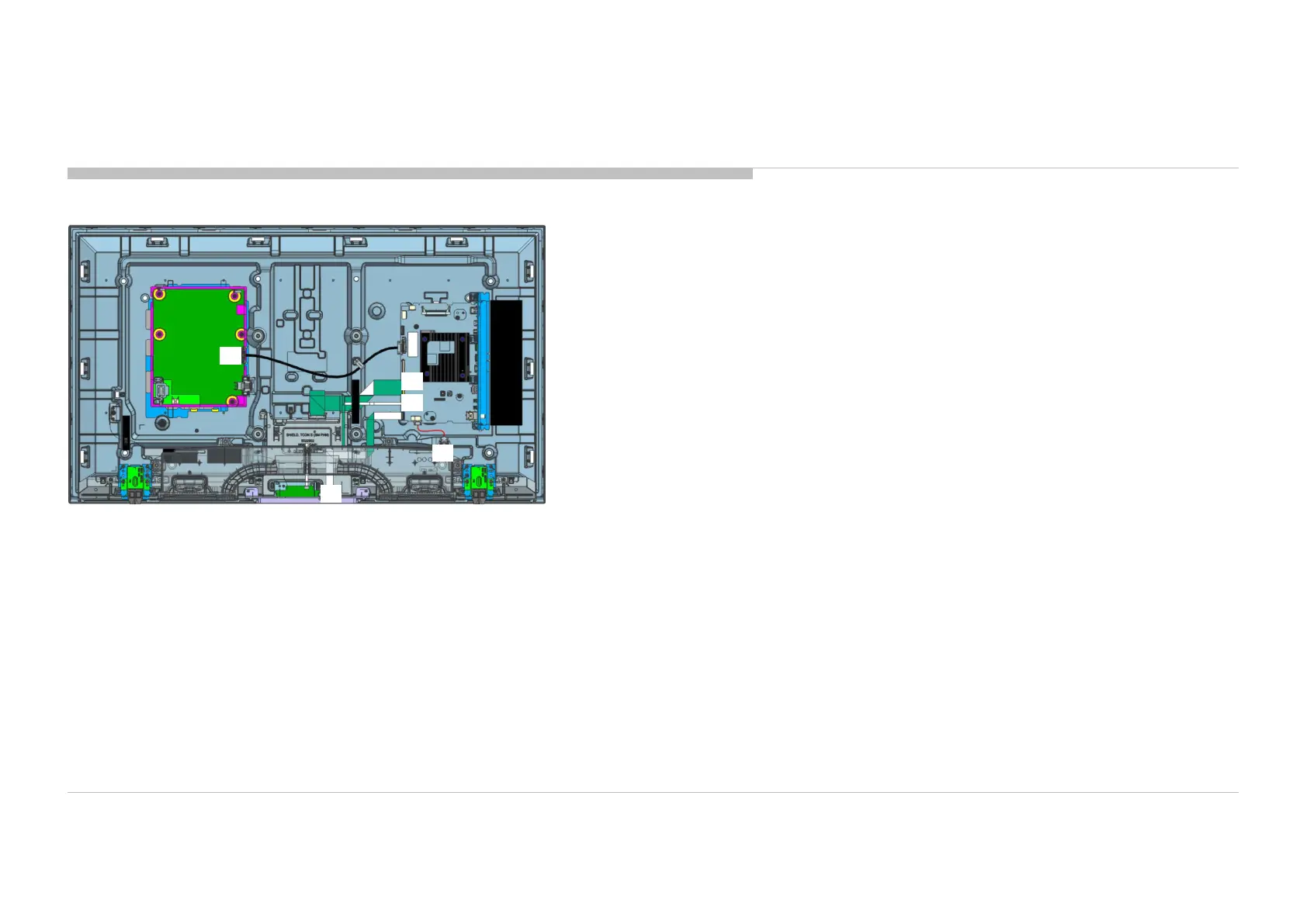

EXPLODED VIEW AND PART LIST 43”
CONNECTOR
REF.
NO
PART NO. DESCRIPTION REMARKS
1 1-010-990-12
CONNECTOR ASSY 30P CN1701(B)-CN6401(G)(1)
2
1-010-995-12
FLEXIBLE FLAT CABLE 51P CN4200(B)-U1(TCON)(1)
3
1-010-991-11
FLEXIBLE FLAT CABLE 20P CN3801(B)-J1(WIFI/BT)(1)
4
1-010-993-11
FLEXIBLE FLAT CABLE 25P CN1200(B)-CN102(H)(1)
5
1-010-989-12
CONNECTOR ASSY 4P (SP) CN3550(B)-SP(1)
1
2
3
4
5
