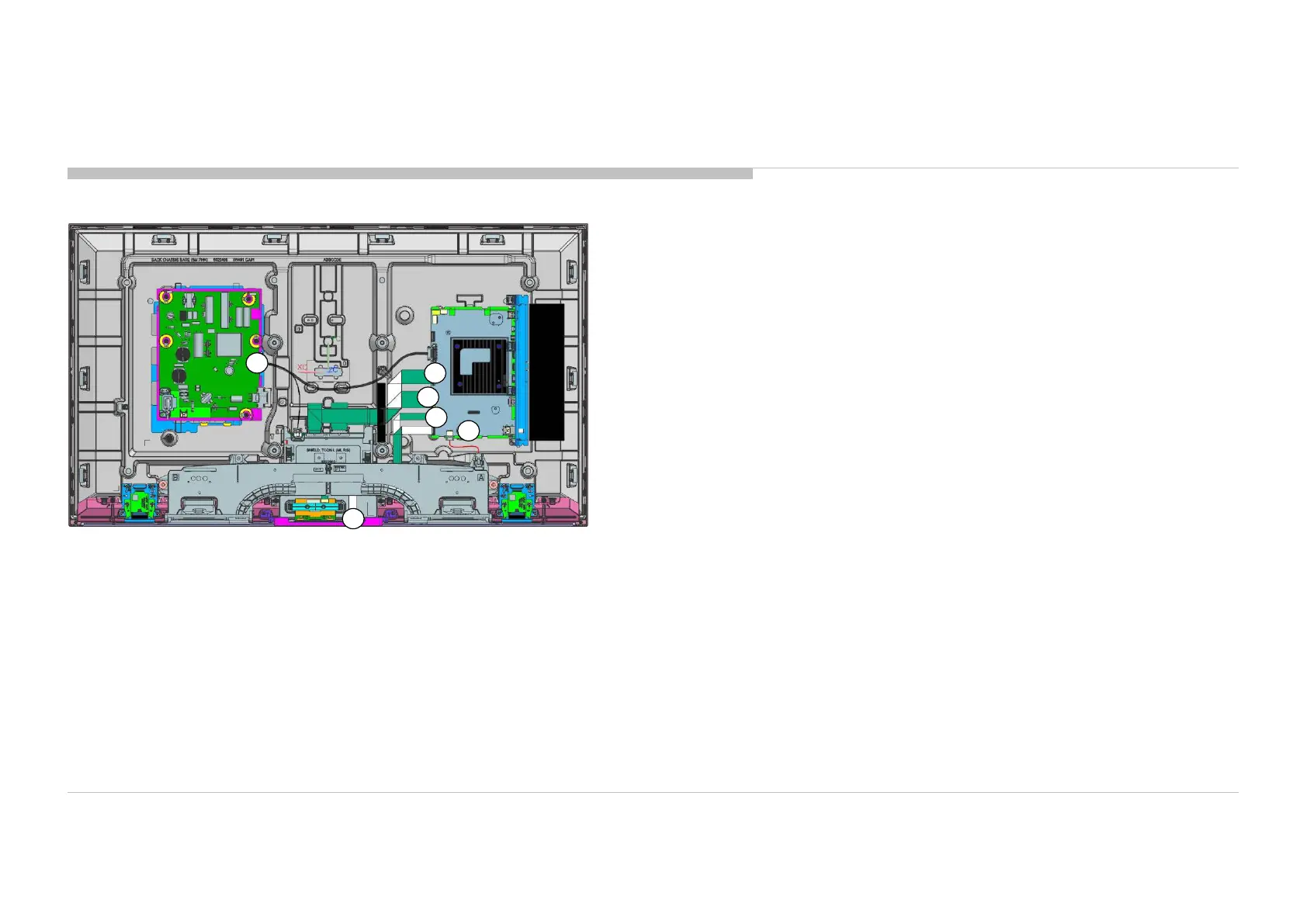

CONNECTOR
18
2
3
1
6
5
4
REF.
NO
PART
NO.
DESCRIPTION REMARKS
1
1-010-989-22 CONNECTOR ASSY 4P (SP)
CN3550(BM5A)/CN6600(B
M5STY) /CN6603 (BM5ST)-
SP(1)
Compatible
1
1-010-989-12
CONNECTOR ASSY 4P (SP)
2
1-010-994-11
FLEXIBLE FLAT CABLE 25P
CN1200(BM5A)-
CN102(HT2)(1)
Compatible
2
1-010-993-11
FLEXIBLE FLAT CABLE 25P
3
1-010-992-11
FLEXIBLE FLAT CABLE 20P
CN3801(BM5A)-
J1(WIFI/BT)(1)
Compatible
3
1-010-991-11 FLEXIBLE FLAT CABLE 20P
4
1-011-590-11
FLEXIBLE FLAT CABLE 41P
CN4201(BM5A)-TCON(1)
A
Compatibl
e
(A or B
must be
paired.)
4
1-011-589-11
FLEXIBLE FLAT CABLE 41P
B
5
1-011-964-11
FLEXIBLE FLAT CABLE 51P
CN4200(BM5A)-
U1(TCON)(1)
A
Compatibl
e
(A or B
must be
paired.)
5
1-011-963-12 FLEXIBLE FLAT CABLE 51P B
6
1-011-588-22
CONNECTOR ASSY 30P
CN1701(BM5A)-
CN6401(GL)(1)
Compatible
6
1-011-588-11
CONNECTOR ASSY 30P
EXPLODED VIEW & PART LIST 43”
