20

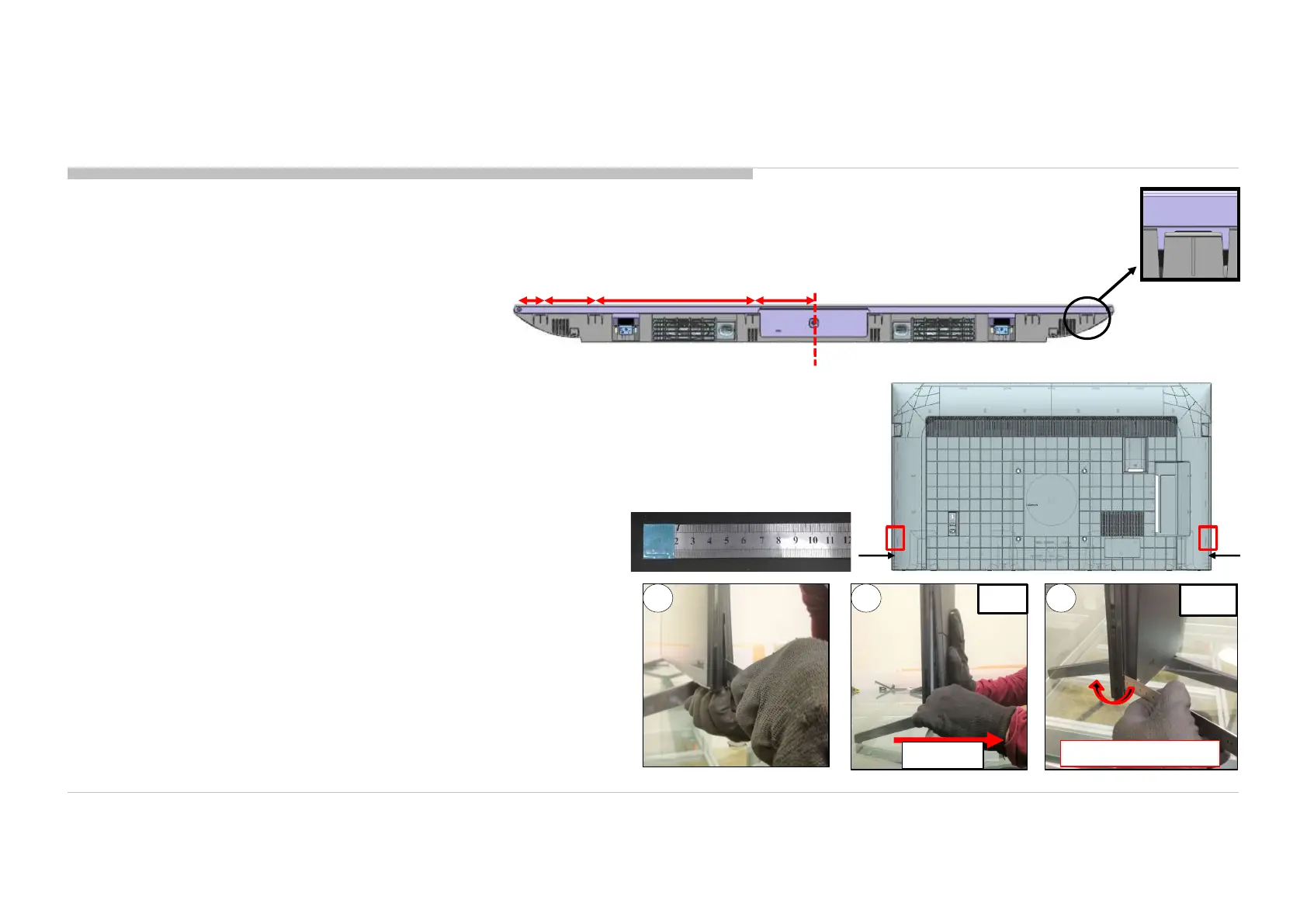

3. Unhook corner hook.
①
Releasing the corner hook by pulling the Rear Cover corner and
insert a jig or ruler.
②
Ensure the jig or ruler is pulled backward.
③
DO NOT pivot on bezel when inserting the jig or ruler.
REAR COVER
Backward
OK
Do NOT pivot on bezel
NG
Bottom Hook Position
321
Ruler or jig to release corner hook
*Wrap ruler with tape to prevent scratch
102mm49mm
293mm
114mm
DISASSEMBLY AND REMOVAL CAUTION 50”
To Next Page
