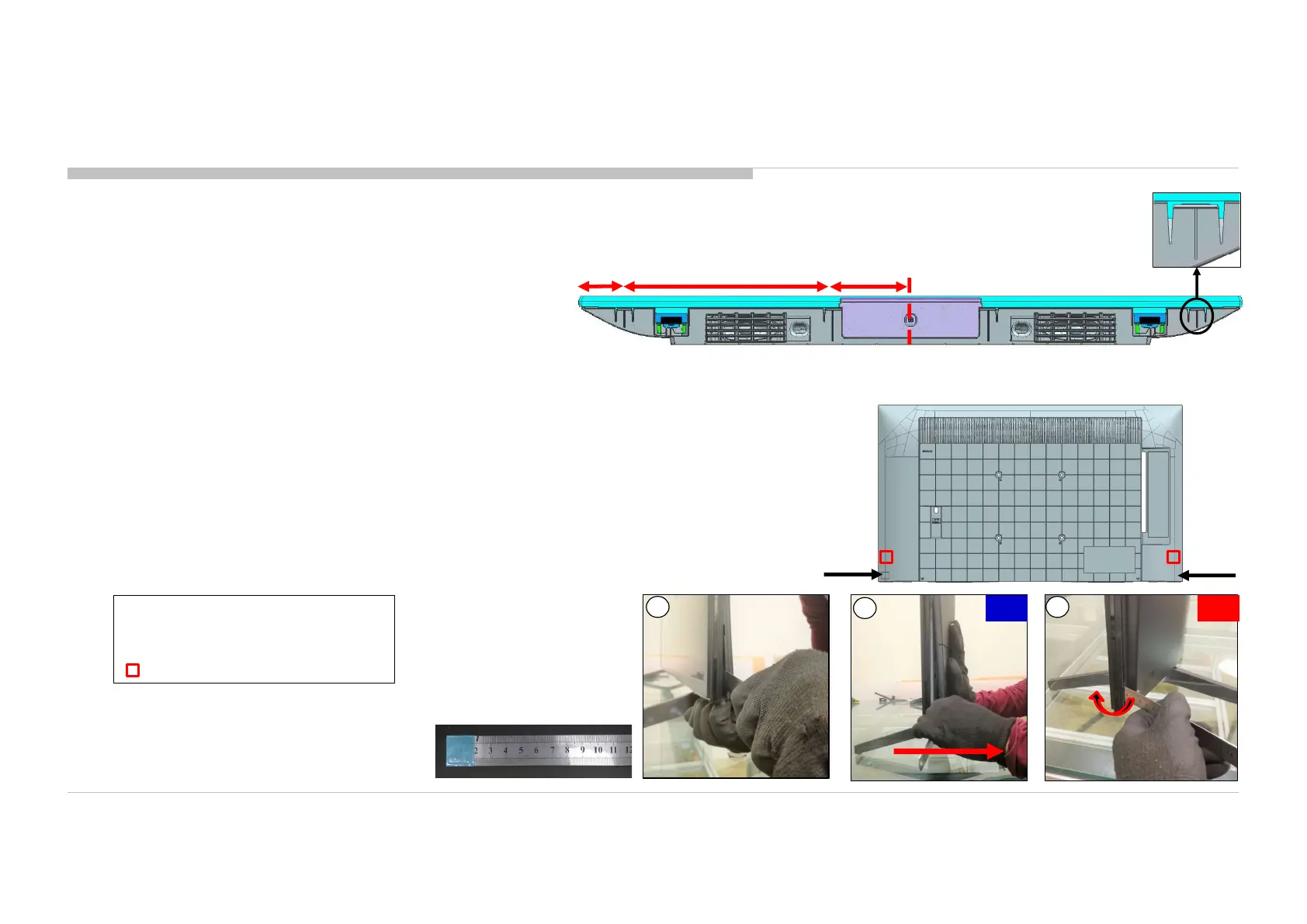

When releasing hook, pull the Rear Cover corner and insert jig.
②
Ensure that the jig is pulled backward.
③
DO NOT pivot on Bezel when inserting jig.
12
REAR COVER
2. Bottom hook position.
66mm
305mm 114mm
1
2
3
3. Release corner hook (Qty: 2)
OKOK NGNG
Note:
1) Ruler or jig to release corner hook.
2) Wrap ruler with tape to prevent scratch
=BC-Rear Cover Hook
EXPLODED VIEW AND PART LIST 43”
