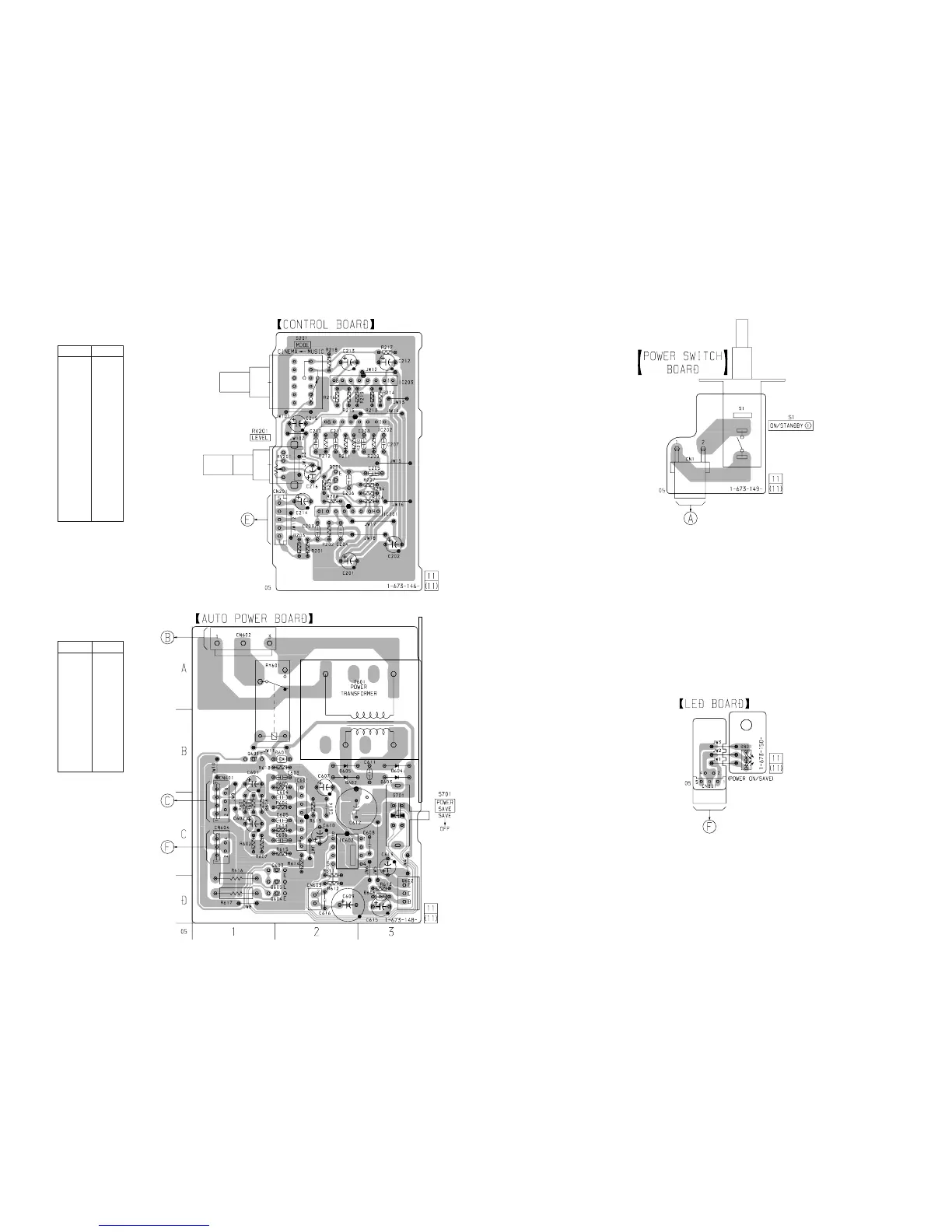

Sony SA-SS-MS5 - Section 2: Component Locations and Board Layouts; Semiconductor Locations; Board Layouts

SA-VE502/VE505/WMS5/SS-MS5
• Semiconductor
Location
– MAIN Board –
Ref. No. Location
D101 B-9
D102 C-9
D103 B-10
D104 B-9
D105 C-9
D106 C-9
D107 D-10
D108 C-10
D303 B-7
D304 B-5
D501 D-4
D503 B-4
D504 A-4
IC101 C-10
IC102 D-10
IC301 A-9
IC302 C-8
IC303 A-6
IC501 A-5
IC502 A-5
D601 B-2
D602 B-2
D603 B-3
D604 B-3
D605 B-2
D606 D-3
IC601 C-2
IC602 C-2
Q601 B-1
Q602 D-3
Q603 C-2
Q604 D-2
Q605 D-2
• Semiconductor
Location
– AUTO POWER Board –
Ref. No. Location
– 7 –
– 8 –
(Page 6)
(Page 5)
(Page 5)
(Page 8)
(Page 5)
(Page 7)
