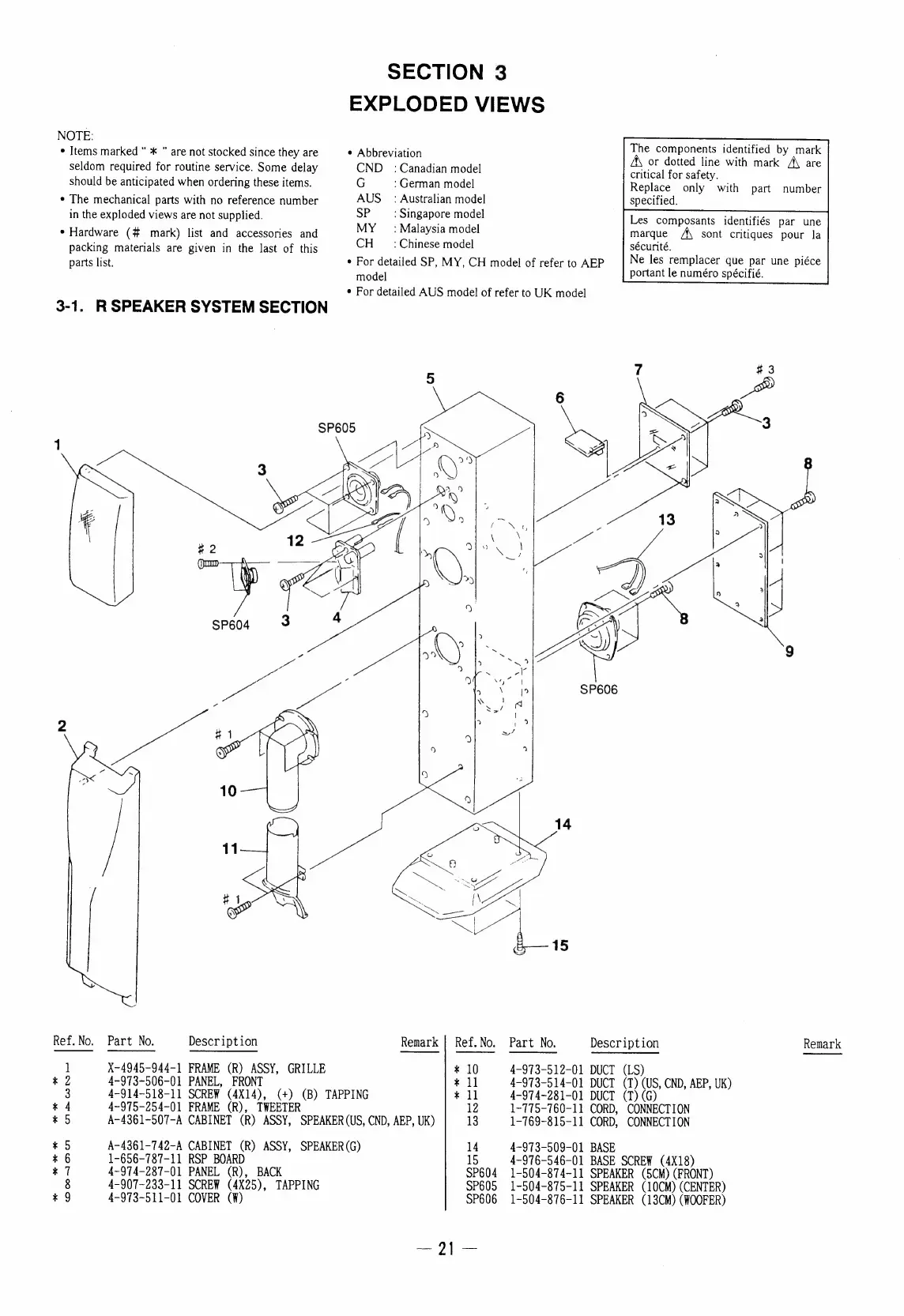

SECTION 3
EXPLODED VIEWS
NOTE:
* Items marked “ * ” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
CND
* The mechanical parts with no reference number AUS
in the exploded views are not supplied. SP
* Hardware (# mark) list and accessories and Na
packing materials are given in the last of this
parts list.
model
e Abbreviation
: Canadian model
: German model
: Australian model
: Singapore model
: Malaysia model
: Chinese model
¢ For detailed SP, MY, CH model of refer to AEP
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque \ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
¢ For detailed AUS model of refer to UK model
3-1. R SPEAKER SYSTEM SECTION
Ref.No. Part No. Description Remark | Ref. No.
1 X-4945-944-1 FRAME (R) ASSY, GRILLE * 10
x 2 4-973-506-01 PANEL, FRONT * il
3 4-914-518-11 SCREW (4X14), (+) (B) TAPPING * ll
x 4 4~975-254-01 FRAME (R), TWEETER 12
#5 A-4361-507-A CABINET (R) ASSY, SPEAKER(US, CND, AEP, UK) 13
"5 A-4361-742-A CABINET (R) ASSY, SPEAKER(G) 14
* 6 1-656-787-11 RSP BOARD 15
* 7 4-974-287-01 PANEL (R), BACK SP604
8 4-907-233-11 SCREW (4X25), TAPPING SP605
* 9 4-973-511-01 COVER (W) SP606
Part No. Remark
Description
4-973-512-01 DUCT (LS)
4-973-514-01 DUCT (T) (US, CND, AEP, UK)
4-974-281-01 DUCT (T)(G)
1-775-760-11 CORD, CONNECTION
1-769-815-11 CORD, CONNECTION
4~-$73-509-01 BASE
4-976-546-01 BASE SCREW (4X18)
1-504-874-11 SPEAKER (5CM) (FRONT)
1-504-875-11 SPEAKER (10CM) (CENTER)
1-504-876-11 SPEAKER (13CM) (WOOFER)
