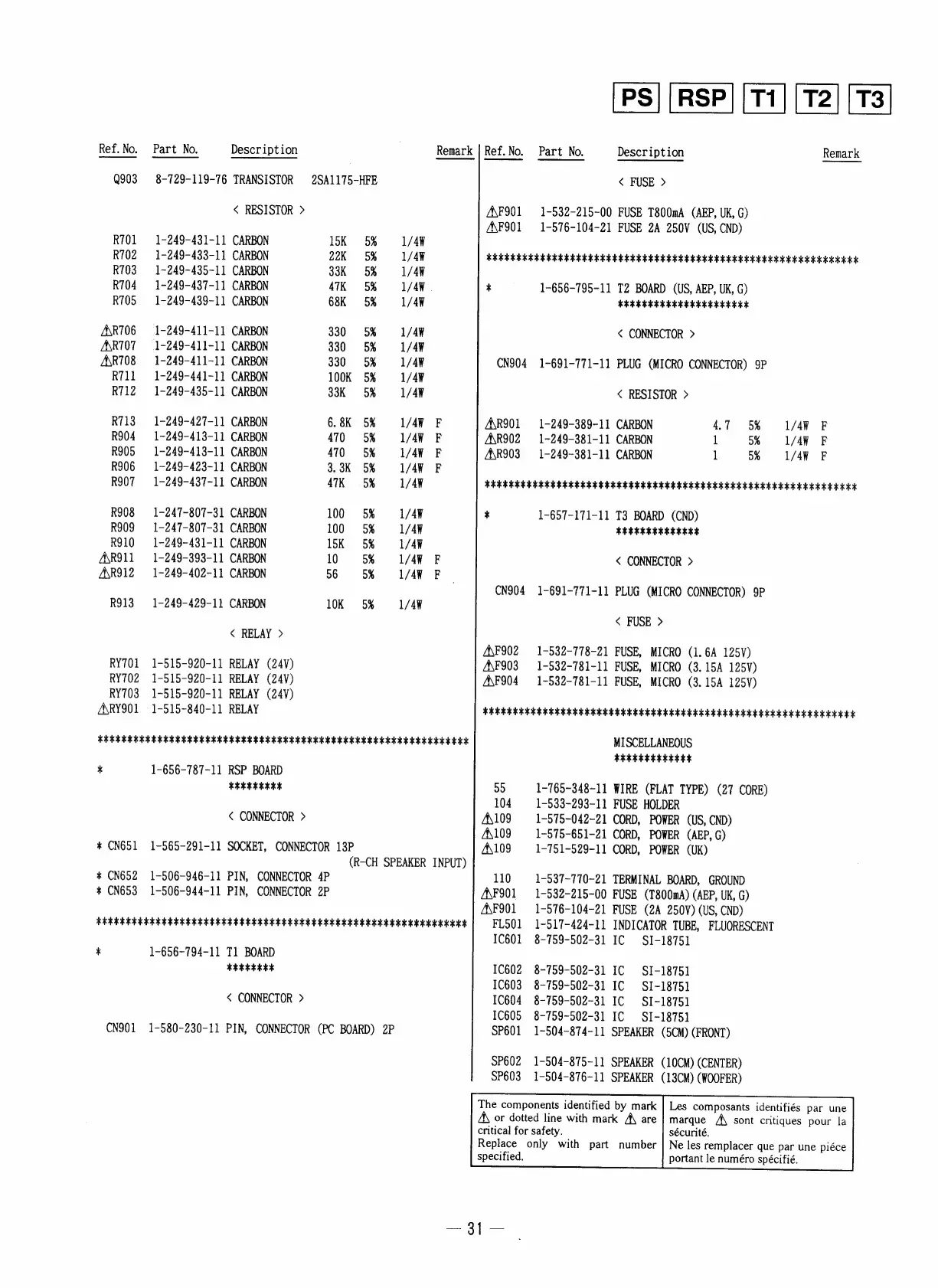

Sony SA-VA15 - Page 20

Ref. No. Part No. Description Remark
Q903 8-729-119-76 TRANSISTOR 2SA1175-HFE
< RESISTOR >
R701 1-249-431-11 CARBON 15K 5% 1/4¥
R702 1-249-433-11 CARBON 22K 5% 1/4¥
R703 1-249-435-11 CARBON 33K 65% 1/4¥
R704 1-249-437-11 CARBON ATK 5% 1/4¥
R705 1-249-439-11 CARBON 68K = 5% 1/4¥
A\R7T06 =: 1-249-411-11 CARBON 330 =5% 1/44
A\RT07 =: 1-249-411-11 CARBON 330 5% 1/44
A\R708 = 1-249-411-11 CARBON 330 35% 1/44
R711 1-249-441-11 CARBON 100K 5% 1/4¥
R712 1-249-435-11 CARBON 33K = 5% 1/4¥
R713 1-249-427-11 CARBON 6.8K 5% 1/4¥ F
R904 1-249-413-11 CARBON 470 = 5% 1/4¥ F
R905 1-249-413-11 CARBON 470 5% 1/4¥ F
R906 1-249-423-11 CARBON 3.3K 5% 1/4¥ F
R907 1-249-437-11 CARBON 47K = 5% 1/4¥
R908 1-247-807-31 CARBON 100 5% 1/4¥
R909 1-247-807-31 CARBON 100 5% 1/4¥
R910 1-249-431-11 CARBON 15K 5% 1/44
A\R911 1-249-393-11 CARBON 10 5% 1/4¥ F
A\R912 1-249-402-11 CARBON 56 5% 1/4¥ F
R913. = 1-249-429-11 CARBON 10K 5% 1/4¥
« RELAY >
RY701 1-515-920-11 RELAY (24V)
RY702 1-515-920-11 RELAY (24V)
RY703 1~515-920-11 RELAY (24V)
A\RY901 = 1-515~840-11 RELAY
KKKKRERKRE EKER ERE AERA ERE AAR EAR EERE REAR EE EERR EKER ERE EAERE
1-656-787-11 RSP BOARD
KEKEKEREE
*
< CONNECTOR >
* CN651 1-565-291-11 SOCKET, CONNECTOR 13P
(R-CH SPEAKER INPUT)
* CN652 1-506-946-11 PIN, CONNECTOR 4P
* CN653 1-506-944-11 PIN, CONNECTOR 2P
HARKER KERR KARA E ERA RERR EE ERARR ERA ERE R ERE RARE EAR ARR RRA AAR ELS
k 1-656-794-11 T1 BOARD
KEKEREK
< CONNECTOR >
CN901 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P
Ref.No. Part No. Description Remark
< FUSE >
A\F901 1-532-215-00 FUSE T800mA (AEP, UK, G)
A\F901 1-576-104-21 FUSE 2A 250V (US, CND)
PEssitiss tests sss tereststs rere sit sstetststtesesesst ees eres see
* 1-656-795-11 T2 BOARD (US, AEP, UK, G)
KEREREREARERERRERERERE
< CONNECTOR >
CN904 1-691-771-11 PLUG (MICRO CONNECTOR) 9P
< RESISTOR >
A\R901 —-1-249-389-11 CARBON 4.7 5% 1/4¥ F
A\R902 —:1-249-381-11 CARBON 1 of 1/4¥ F
A\R903 —-1-249~-381-11 CARBON 1 OM 1/4W F
KERR ERERAAEE RARE RRR ERRARARR REAR RAR EREARR ARERR AAAAARE AKA KER EE
k 1-657-171-11 T3 BOARD (CND)
KKEKEKAEAKEAEE
< CONNECTOR >
CN904 1-691-771-11 PLUG (MICRO CONNECTOR) 9P
< FUSE >
A\F902
—
1-532-778-21
FUSE,
MICRO
(1.6A
125V)
A\F903-1-532-781-11 FUSE, MICRO (3.15A 125V)
A\F904 1-532-781-11 FUSE, MICRO (3. 15A 125V)
ESS
eters
r
eerie
tlt
t
ects
tts
satis
stitiistictssr
sss
stresses
eee
es
ey
MISCELLANEOUS
KEKKEEKAREEES
55 1-765-348-11 WIRE (FLAT TYPE) (27 CORE)
104 1-533-293-11 FUSE HOLDER
A\109 1-575-042-21 CORD, POWER (US, CND)
A\109 1-575-651-21 CORD, POWER (AEP, G)
A\109 1-751-529-11 CORD, POWER (UK)
110 1-537-770-21 TERMINAL BOARD, GROUND
AF901 —1-532-215-00 FUSE (T800mA) (AEP, UK, G)
A\F901 — 1-576-104-21 FUSE (2A 250V) (US, CND)
FL501 1-517-424-11 INDICATOR TUBE, FLUORESCENT
IC601 8-759-502-31 IC SI-18751
IC602 8-759-502-31 IC SI-18751
1C603 8-759-502-31 IC SI-18751
1C604 8-759-502-31 IC SI-18751
IC605 8-759-502-31 IC SI-18751
SP601 1-504-874-11 SPEAKER (5CM) (FRONT)
SP60Z 1-504-875-11 SPEAKER (10CM) (CENTER)
SP603 1-504-876-11 SPEAKER (13CM) (WOOFER)
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
