2-2
SAL50M28 (MACRO 2.8/50) (50mm F2.8 Macro)
2-1. DISASSEMBLY
2-1-1. FRONT LENS BARREL AND MOUNT RIVETING BLOCK
(See Page 2-3.)
A
A

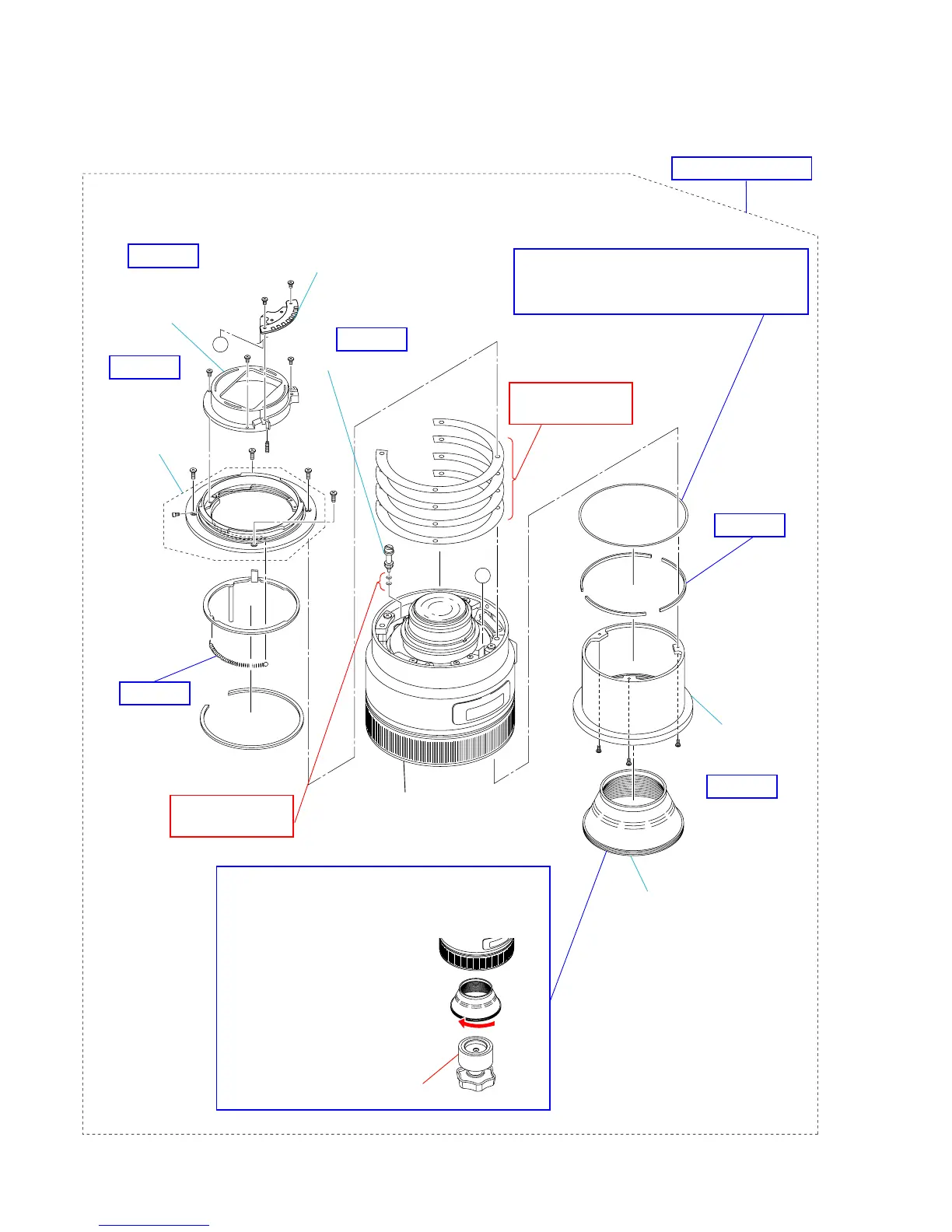

EXPLODED VIEW
3 Main Flexible Block
6 Back Adjustment
Washer
HELP01
HELP04
4 Rear Light
HELP02
7 Coupler
HELP05
5 Mount
Riveting
Block
HELP03
1 Front Light
2 Front Lens
Barrel
Note:
Attach the decollation ring after cleaning the
attaching surface of the middle barrel.
FLANGE BACK
ADJUSTMENT
FLANGE BACK
ADJUSTMENT
Shield Barrel
Shield Barrel
Note:
Remove the front light shield barrel
using the name ring wrench A (49mm).
Name ring wrench A (49mm):
J-6082-586-A
Name ring wrench A (49mm)
HELP38
To Next Page
