Sony SL-5000 - Cassette Loading Assembly (1)

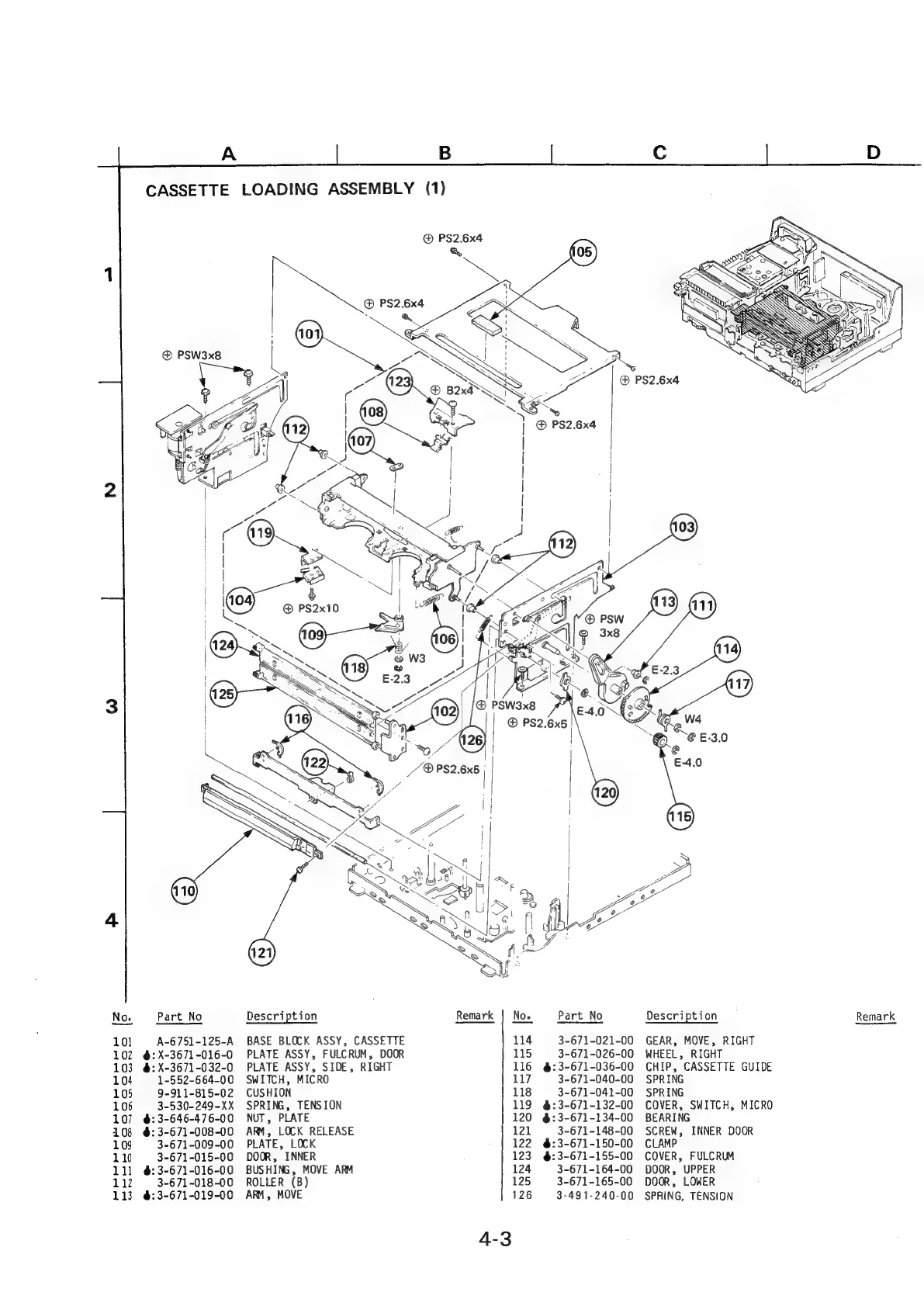

CASSETTE LOADING ASSEMBLY (1)
No. Part No
101 A-6751-125-A
102 $:X-3671-016-0
103 @:X-3671-032-0
104 1-552-664-00
105 9-911-815-02
106 3-530-249-XX
107 $:3-646-476-00
108 #:3-671-008-00
109 3-671-009-00
110 3-671-015-00
111 $6:3-671-016-00
112 3-671-018-00
113 $:3-671-019-00
Description
BASE BLOCK ASSY, CASSETTE
PLATE ASSY, FULCRUM, DOOR
PLATE ASSY, SIDE, RIGHT
SWITCH, MICRO
CUSHION
SPRING, TENSION
NUT, PLATE
ARM, LOCK RELEASE
PLATE, LOCK
DOOR, INNER
BUSHING, MOVE ARM
ROLLER (B)
ARM, MOVE
@® PS2.6x4
PSW.
Remark
3x8
® Ps2.
é:
6:
é:
é:
é:
ba -)
Part No
3-671-021-00
3-671-026-00
3-671 -036-00
3-671-040-00
3-671-041-00
3-671-132-00
3-671-134-00
3-671-148-00
3-671-150-00
3-671-155-00
3-671-164-00
3-671-165-00
3-491-240-00
@® PS2.6x4
Remark
Description
GEAR, MOVE, RIGHT
WHEEL, RIGHT
CHIP, CASSETTE GUIDE
SPRING
SPRING
COVER, SWITCH, MICRO
BEARING
SCREW, INNER DOOR
CLAMP
COVER, FULCRUM
DOOR, UPPER
DOOR, LOWER
SPRING, TENSION
