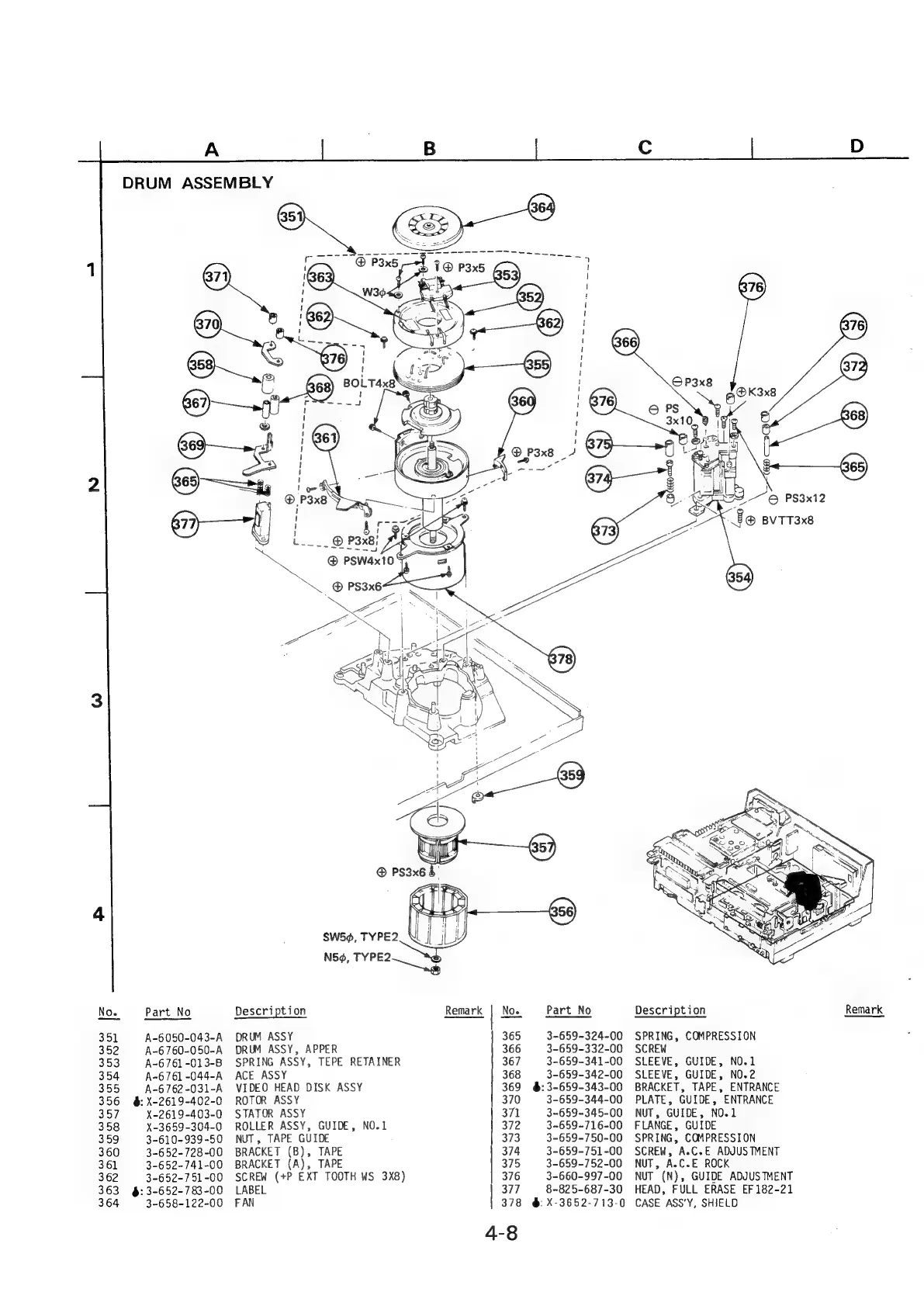

Sony SL-5000 - Drum Assembly

No.
351
352
353
354
355
356
357
358
359
360
361
362
363
364
BOLT4x8SS
Part No
A-6050-043-A
A-6760-050-A
A-6761 -013-B
A-6761 -044-A
A-6762-031-A
6: X-2619-402-0
X-2619-403-0
X-3659-304-0
3-610-939-50
3-652-728-00
3-652-741-00
3-652-751-00
6: 3-652-783-00
3-658-122-00
DRUM ASSEMBLY
als
Are
SW5¢,
TYPE2
lie)
N56, bade ee.
Description
DRUM ASSY
DRUM ASSY, APPER
SPRING ASSY, TEPE RETAINER
ACE ASSY
VIDEO HEAD DISK ASSY
ROTOR ASSY
STATOR ASSY
ROLLER ASSY, GUIDE, NO.1
NUT, TAPE GUIDE
BRACKET (B), TAPE
BRACKET (A), TAPE
SCREW (+P EXT TOOTH WS 3X8)
LABEL
FAN
Remark
Now
365
366
367
368
369
370
371
372
373
374
375
376
377
378
-8
Part No
3-659-324-00
3-659-332-00
3-659-341-00
3-659-342-00
6: 3-659-343-00
3-659-344-00
3-659-345-00
3-659-716-00
3-659-750-00
3-659-751-00
3-659-752-00
3-660-997-00
8-825-687-30
6: X-3652-713-0
Description Remark
SPRING, COMPRESSION
SCREW
SLEEVE, GUIDE, NO.1
SLEEVE, GUIDE, NO.2
BRACKET, TAPE, ENTRANCE
PLATE, GUIDE, ENTRANCE
NUT, GUIDE, NO.1
FLANGE, GUIDE
SPRING, COMPRESSION
SCREW, A.C.E ADJUSTMENT
NUT, A.C.E ROCK
NUT (N), GUIDE ADJUSTMENT
HEAD, FULL ERASE EF 182-21
CASE ASS'Y, SHIELD
