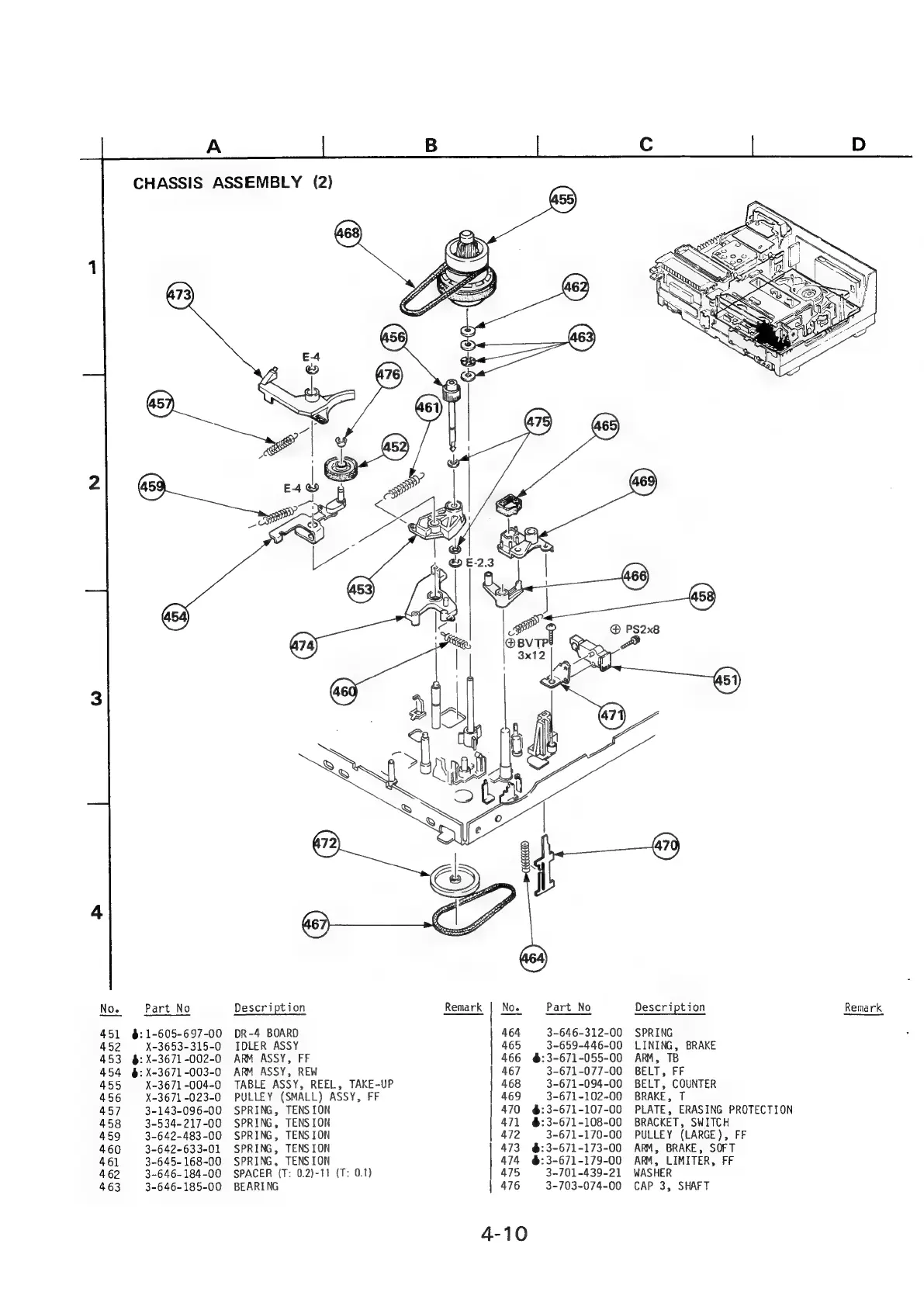

CHASSIS ASSEMBLY (2)
Part No
:1-605-697-00
X-3653-315-0
: X-3671-002-0
: X-3671 -003-0
X-3671 -004-0
X-3671 -023-0
3-143-096-00
3-534- 217-00
3-642-483-00
3-642-633-01
3-645- 168-00
3-646- 184-00
3-646-185-00
Description
DR-4 BOARD
IDLER ASSY
ARM ASSY, FF
ARM ASSY, REW
TABLE ASSY, REEL, TAKE-UP
PULLEY (SMALL) ASSY, FF
SPRING, TENSION
SPRING, TENS ION
SPRING, TENSION
SPRING, TENSION
SPRING, TENSION
SPACER (T: 0.2)-11 (T: 0.1)
BEARING
Remark
Part No
3-646-312-00
3-659-446-00
$:3-671-055-00
3-671-077-00
3-671-094-00
3-671-102-00
$:3-671-107-00
6:3-671-108-00
3-671-170-00
6: 3-671-173-00
6:3-671-179-00
3-701-439-21
3-703-074-00
Remark
Description
SPRING
LINING, BRAKE
ARM, TB
BELT, FF
BELT, COUNTER
BRAKE, T
PLATE, ERASING PROTECTION
BRACKET, SWITCH
PULLEY (LARGE), FF
ARM, BRAKE, SOFT
ARM, LIMITER, FF
WASHER
CAP 3, SHAFT
