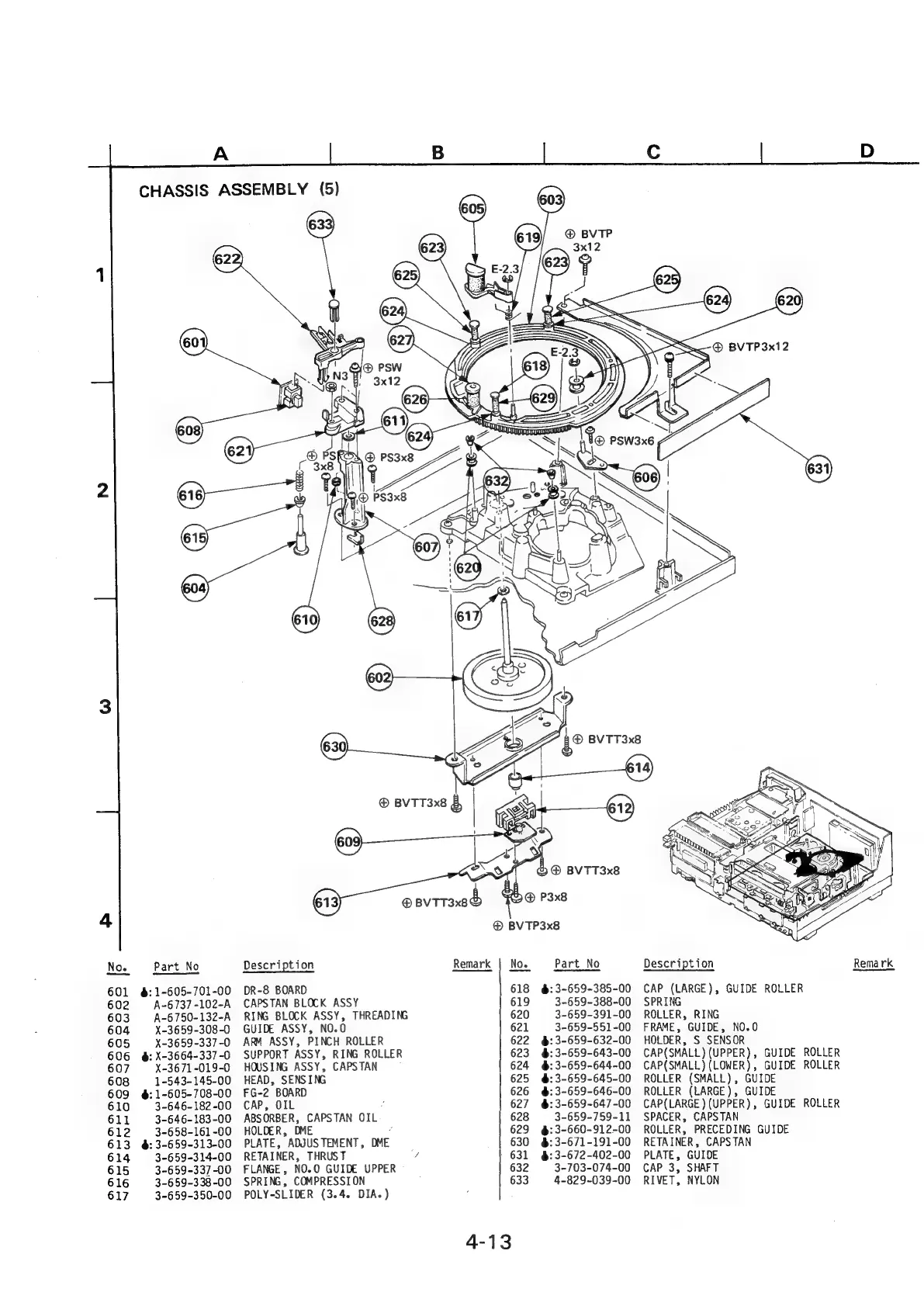

CHASSIS ASSEMBLY (5)
Description
DR-8 BOARD
CAPSTAN BLOCK ASSY
RING BLOCK ASSY, THREADING
GUIDE ASSY, NO.0
ARM ASSY, PINCH ROLLER
SUPPORT ASSY, RING ROLLER
HOUSING ASSY, CAPSTAN ~
HEAD, SENSING
FG-2 BOARD
CAP, OIL
ABSORBER, CAPSTAN OIL
HOLDER, DME
PLATE, ADJUSTEMENT, DME
RETAINER, THRUST
FLANGE, NO.O GUIDE UPPER
SPRING, COMPRESSION
POLY-SLIDER (3.4. DIA.)
4-13
® BVTP3x8
Remark | No. Part No
618 :3-659-385-00
619 3-659-388-00
620 3-659-391-00
621 3-659-551-00
622 :3-659-632-00
623 $:3-659-643-00
624 :3-659-644-00
625 6:3-659-645-00
626 :3-659-646-00
627 6:3-659-647-00
628 3-659-759-11
629 :3-660-912-00
630 §:3-671-191-00
| 631 $:3-672-402-00
632 3-703-074-00
633 4-829-039-00
= @® BVTP3x12
Description Remark
CAP (LARGE), GUIDE ROLLER
SPRING
ROLLER, RING
FRAME, GUIDE, NO.0
HOLDER, S SENSOR
CAP(SMALL) (UPPER), GUIDE ROLLER
CAP(SMALL) (LOWER), GUIDE ROLLER
ROLLER (SMALL), GUIDE
ROLLER (LARGE), GUIDE
CAP(LARGE ) (UPPER), GUIDE ROLLER
SPACER, CAPSTAN
ROLLER, PRECEDING GUIDE
RETAINER, CAPSTAN
PLATE, GUIDE
CAP 3, SHAFT
RIVET, NYLON
