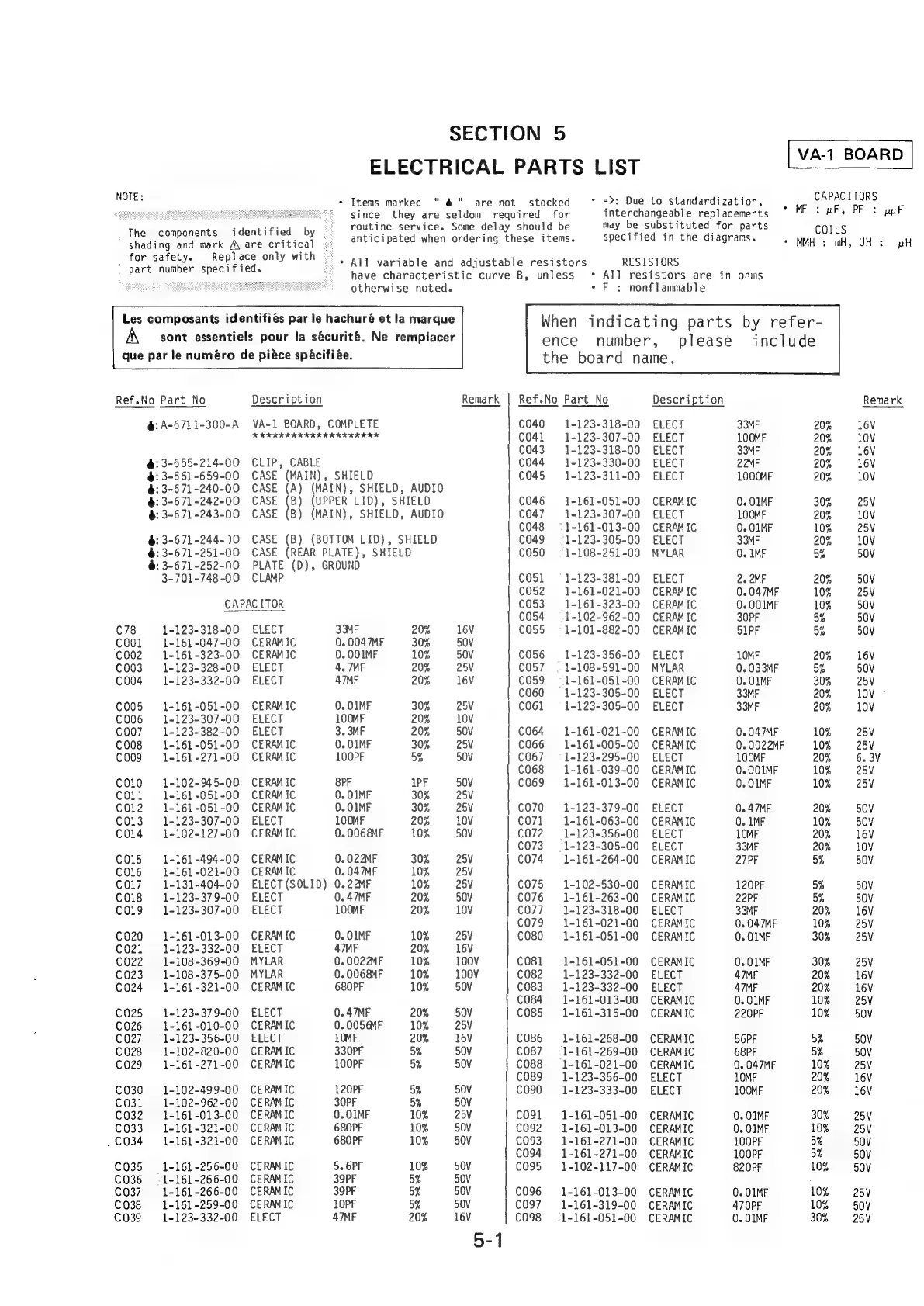

SECTION 5
ELECTRICAL PARTS LIST
NOTE: + Items marked “@" are not stocked * =>: Due to standardization, , ME napa F
: ee ae 2S since they are seldom required for iibcechangest = replacements edited + BH
. + es routine service. Some delay should be may be substituted for parts COILS
The
components
identified
by
anticipated
when
ordering
these
items.
specified
in
the
diagrams.
“MMH
:
mH,
UH:
pH
shading and mark A are critical
for safety. Replace only aien * All variable and adjustable resistors RESISTORS
part number specif ted. have characteristic curve B, unless °* All resistors are in ohins
; nee otherwise noted. * F : nonflainmable
Les composants identifiés par le hachuré et la marque When indicating parts by refer-
sont essentiels pour la sécurité. Ne remplacer ence number, please include
que par le numéro de piéce spécifiée. the board name.
Ref.No Part No Description Remark | Ref.No Part No Description Remark
6:A-6711-300-A VA-1 BOARD, COMPLETE c040 1-123-318-00 ELECT 33MF 20% 16V
RREAEREREES EARRER ERY | C041 1-123-307-00 ELECT 100MF 20% 10V
| C043 1-123-318-00 ELECT 33MF 20% 16V
@:3-655-214-00 CLIP, CABLE c044 1-123-330-00 ELECT 22MF 20% 16V
6: 3-661-659-00 CASE (MAIN), SHIELD C045 = 1-123-311-00 ELECT 1000MF 20% 10V
6:3-671-240-00 CASE (A) (MAIN), SHIELD, AUDIO
6: 3-671-242-00 CASE (B) (UPPER LID), SHIELD C046 1-161-051-00 CERAMIC 0. O1MF 30% 25V
6: 3-671-243-00 CASE (B) (MAIN), SHIELD, AUDIO | C047 1-123-307-00 ELECT 1OOMF 20% 10V
C048 =: 1-161-013-00 CERAMIC 0. O1MF 10% 25V
6: 3-671-244-)0 CASE (B) (BOTTOM LID), SHIELD | C049 =: 1-123-305-00 ELECT 33MF 20% 10V
@:3-671-251-00 CASE (REAR PLATE), SHIELD C050 = 1-108-251-00 MYLAR 0. MF 5% 50V
6: 3-671-252-00 PLATE (D), GROUND
3-701-748-00 CLAMP C051 = 1-123-381-00 ELECT 2. 2MF 20% 50V
C052. = 1-161-021-00 CERAMIC 0. 047MF 10% 25V
CAPACITOR C053: 1-161-323-00 CERAMIC 0. OO1MF 10% 50V
C054 =: 1-102-962-00 CERAMIC 30PF 5% 50V
C78 1-123-318-00 ELECT 3MF 20% 16V C055 = 1-101-882-00 CERAMIC 51PF 5% 50V
C001 = 1-161-047-00 CERAMIC 0. 004 7MF 30% 50V
c002 1-161-323-00 CERAMIC 0. OO1MF 10% 50V C056 1-123-356-00 ELECT 1OMF 20% 16V
C003 =1-123-328-00 ELECT 4. MF 20% 25V C057 =: 1-108-591-00 MYLAR 0. 033MF 5% 50V
C004 =1-123-332-00 ELECT 47MF 20% 16V C059 =: 1-161-051-00 CERAMIC 0. O1MF 30% 25V
| C060 1-123-305-00 ELECT 33MF 20% 10V
C005 = 1-161-051-00 CERAMIC 0. O1MF 30% 25V C061 = 1-123-305-00 ELECT 33MF 20% 10V
C006 = 1-123-307-00 ELECT 100MF 20% 10V
C007 = 1-123-382-00 ELECT 3. 3MF 20% 50V C064 =1-161-021-00 CERAMIC 0. 047MF 10% 25V
C008 1-161-051-00 CERAMIC 0. O1MF 30% 25V C066 = 1-161-005-00 CERAMIC 0. 0022MF 10% 25V
C009 =1-161-271-00 CERAMIC 100PF 5% 50V C067 = 1-123-295-00 ELECT 100MF 20% 6. 3V
C068 1-161-039-00 CERAMIC 0. OO1MF 10% 25V
C010 1-102-945-00 CERAMIC 8PF 1PF 50V C069 =1-161-013-00 CERAMIC 0. O1MF 10% 25V
coll 1-161-051-00 CERAMIC 0. O1MF 30% 25V |
C012 1-161-051-00 CERAMIC 0. O1MF 30% 25V C070 1-123-379-00 ELECT 0. 47MF 20% 50V
C013 1-123-307-00 ELECT LOOMF 20% 10V co71 1-161-063-00 CERAMIC 0. IMF 10% 50V
co14 1-102-127-00 CERAMIC 0. OO68MF 10% 50V | c072 1-123-356-00 ELECT 10MF 20% 16V
C073 =: 1-123-305-00 ELECT 33MF 20% 10V
C015 1-161-494-00 CERAMIC 0. O22MF 30% 25V C074 1-161-264-00 CERAMIC 27PF 5% 50V
C016 1-161-021-00 CERAMIC 0.047MF 10% 25V |
C017 1-131-404-00 ELECT(SOLID) 0.22MF 10% 25V C075 1-102-530-00 CERAMIC 120PF 5% 50V
C018 1-123-379-00 ELECT 0. 4 7MF 20% 50V C076 1-161-263-00 CERAMIC 22PF ‘fo 50V
C019 1-123-307-00 ELECT 100MF 20% 10V C077 1-123-318-00 ELECT 33MF 20% 16V
| €079 1-161-021-00 CERAMIC 0.04 7MF 10% 25V
c020 1-161-013-00 CERAMIC 0. O1MF 10% 25V C080 1-161-051-00 CERAMIC 0. O1MF 30% 25V
C021 1-123-332-00 ELECT 47MF 20% 16V
C022 1-108-369-00 MYLAR 0. 0022MF 10% 100V C081 1-161-051-00 CERAMIC 0. O1MF 30% 25V
C023 1-108-375-00 MYLAR 0. OO68MF 10% 100V | C082 1-123-332-00 ELECT 47MF 20% 16V
c024 1-161-321-00 CERAMIC 680PF 10% 50V C083 1-123-332-00 ELECT 47MF 20% 16V
| C084 1-161-013-00 CERAMIC 0. O1MF 10% 25V
C025 1-123-379-00 ELECT 0. 47MF 20% 50V c085 1-161-315-00 CERAMIC 220PF 10% 50V
C026 1-161-010-00 CERAMIC 0. OOS@MF 10% 25V
C027 = 1-123-356-00 ELECT 10MF 20% 16V C086 =1-161-268-00 CERAMIC 56PF 5% 50V
C028 1-102-820-00 CERAMIC 330PF 5% 50V C087 =: 1-161-269-00 CERAMIC 68PF 5% 50V
€029 1-161-271-00 CERAMIC 100PF 5% 50V C088 1-161-021-00 CERAMIC 0. 047MF 10% 25V
C089 1-123-356-00 ELECT 1OMF 20% 16V
C030 1-102-499-00 CERAMIC 120PF 5% 50V | c090 1-123-333-00 ELECT 100MF 20% 16V
C031 1-102-962-00 CERAMIC 30PF 5% 50V
C032 1-161-013-00 CERAMIC 0. OIMF 10% 25V c091 1-161-051-00 CERAMIC 0. O1MF 30% 25V
C033 1-161-321-00 CERAMIC 680PF 10% 50V €092 1-161-013-00 CERAMIC 0. O1MF 10% 25V
_ €034 1-161-321-00 CERAMIC 680PF 10% 50V C093 1-161-271-00 CERAMIC 100PF 5% 50V
c094 1-161-271-00 CERAMIC 100PF 5% 50V
C035 1-161-256-00 CERAMIC 5. 6PF 10% 50V c095 1-102-117-00 CERAMIC 820PF 10% 50V
C036 =: 1-161-266-00 CERAMIC 39PF 5% 50V
C037 1-161-266-00 CERAMIC 39PF 5% 50V C096 1-161-013-00 CERAMIC 0. O1MF 10% 25V
C038 1-161-259-00 CERAMIC 10PF 5% 50V C097 1-161-319-00 CERAMIC 470PF 10% 50V
C039 1-123-332-00 ELECT 47MF 20% 16V C098 =: 1-161-051-00 CERAMIC 0. O1MF 30% 25V
5-1
