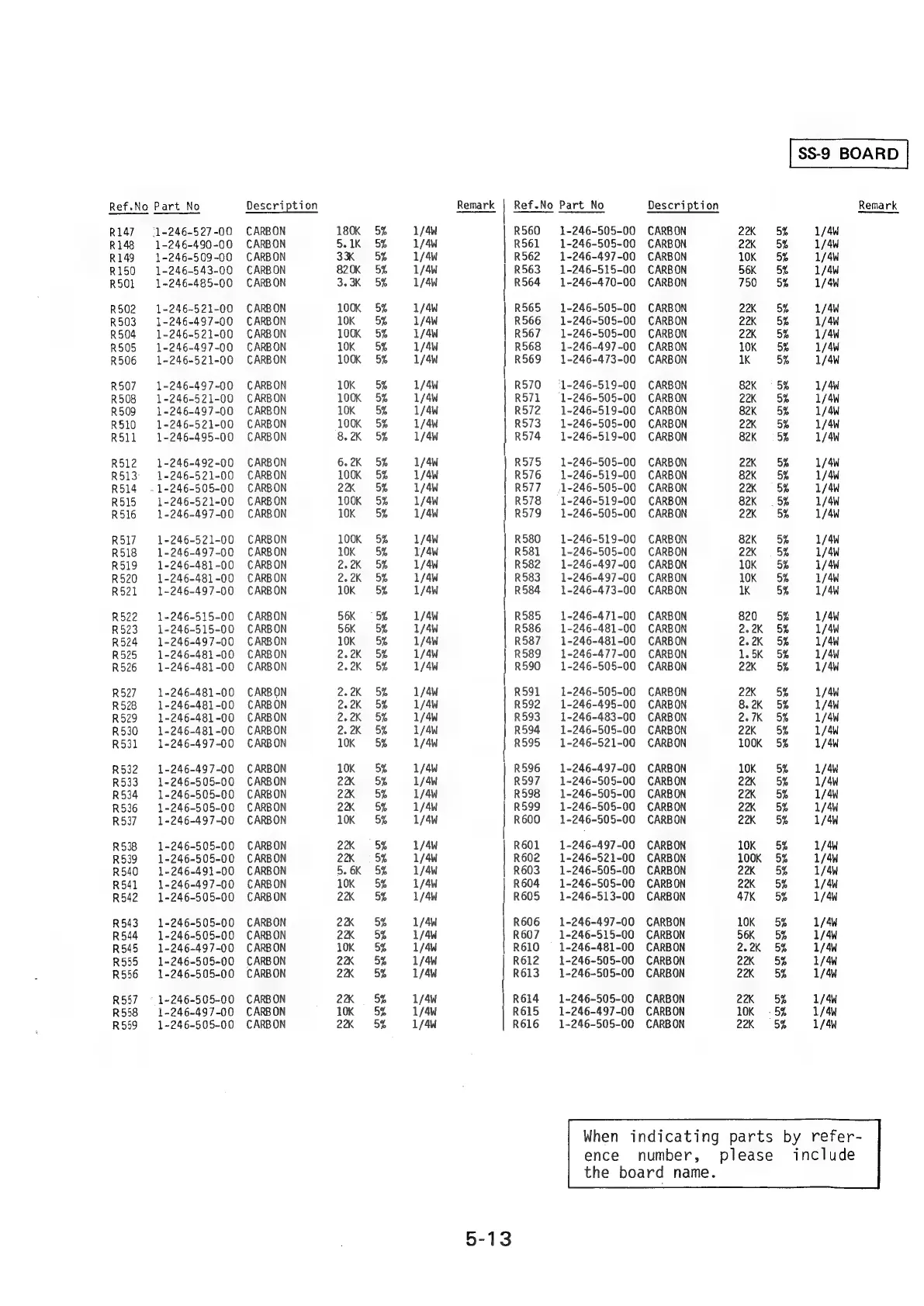

Sony SL-5000 - SS-9 Board Component List (Resistors - Final)

SS-9 BOARD
Ref.No Part No Description Remark | Ref.No Part No Description Remark
R147 =: 1-246-527-00 CARBON 180K 5% 1/4W R560 1-246-505-00 CARBON 22K 5% 1/4W
R148 1-246-490-00 CARBON 5.1K 5% 1/4W R561 1-246-505-00 CARBON 22k 5% 1/4W
R149 1-246-509-00 CARBON 3K 5% 1/4W R562 = 1-246-497-00 CARBON 10K 5% 1/4W
R150 1-246-543-00 CARBON 820K 5% 1/4W | R563 1-246-515-00 CARBON 56K = 5% 1/4W
R501 1-246-485-00 CARBON 3.3K 5% 1/4W R564 1-246-470-00 CARBON 750 5% 1/4W
R502 1-246-521-00 CARBON 100K 5% 1/4W R565 1-246-505-00 CARBON 22k 5% 1/4W
R503 1-246-497-00 CARBON 10K 5% 1/4W R566 1-246-505-00 CARBON 22k 5% 1/4W
R504 1-246-521-00 CARBON 100K 5% 1/4W R567 1-246-505-00 CARBON 22K 5% 1/4W
R505 1-246-497-00 CARBON 10K 5% 1/4W R568 1-246-497-00 CARBON 10K 5% 1/4W
R506 1-246-521-00 CARBON 100K 5% 1/4W R569 1-246-473-00 CARBON 1K 5% 1/4W
R507. 1-246-497-00 CARBON 10K 5% 1/4W R570 =: 1-246-519-00 CARBON 82K = 5% 1/4W
R508 1-246-521-00 CARBON 100K 5% 1/4W R571 1-246-505-00 CARBON 22K 55% 1/4W
R509 1-246-497-00 CARBON 10K 5% 1/4W R572 1-246-519-00 CARBON 82K 5% 1/4W
R510 1-246-521-00 CARBON 100K 5% 1/4W | R573 =1-246-505-00 CARBON 22k 5% 1/4W
R511 1-246-495-00 CARBON 8.2K 5% 1/4W R574 1-246-519-00 CARBON 82K = 5% 1/4
R512 1-246-492-00 CARBON 6.2K 5% 1/4W R575 1-246-505-00 CARBON 22K 5% 1/4W
R513 1-246-521-00 CARBON 100K 5% 1/4W R576 1-246-519-00 CARBON 82K = 5% 1/4W
R514 = 1-246-505-00 CARBON 2K = 5% 1/4W R577 —s- 1-246-505-00 CARBON 22K 5% 1/4W
R515 1-246-521-00 CARBON 100K 5% 1/4W | R578 1-246-519-00 CARBON 82K = 5% 1/4W
R516 1-246-497-00 CARBON 10K 5% 1/4W R579 =1-246-505-00 CARBON 22K 5% 1/4W
R517 1-246-521-00 CARBON 100K 5% 1/4W R580 1-246-519-00 CARBON 82K 65% 1/4W
R518 1-246-497-00 CARBON 10K 5% 1/4W R581 = 1-246-505-00 CARBON 22k = 5% 1/4W
R519 = 1-246-481-00 CARBON 2.2K 5% 1/4W R582 1-246-497-00 CARBON 10K = 5% 1/4W
R520 1-246-481-00 CARBON 2.2K 5% 1/4W R583: 1-246-497-00 CARBON 10K = 5% 1/4W
R521 1-246-497-00 CARBON 10K 5% 1/4W R584 =1-246-473-00 CARBON 1K 5% 1/4W
R522 1-246-515-00 CARBON 56K = 5% 1/4W R585 1-246-471-00 CARBON 820 5% 1/4W
R523 1-246-515-00 CARBON 56K 5% 1/4W R586 1-246-481-00 CARBON 2.2K 5% 1/4W
R524 1-246-497-00 CARBON 10K 5% 1/4W R587 = 1-246-481-00 CARBON 2.2K 5% 1/4W
R525 1-246-481-00 CARBON 2.2K 5% 1/4W R589 1-246-477-00 CARBON 1.5K 5% 1/4W
R526 1-246-481-00 CARBON 2.2K 5% 1/4W R590 1-246-505-00 CARBON 22K = 5% 1/4W
R527: 1-246-481-00 CARBON 2.2K 5% 1/4W R591 1-246-505-00 CARBON 22K 5% 1/4W
R528 1-246-481-00 CARBON 2.2K 5% 1/4W R592 =—1-246-495-00 CARBON 8.2K 5% 1/4W
R529 1-246-481-00 CARBON 2.2K 5% 1/4W R593: 1-246-483-00 CARBON 2.7K 5% 1/4W
R530 1-246-481-00 CARBON 2.2K 5% 1/4W R594 =-:1-246-505-00 CARBON 22K 1/4W
R531 1-246-497-00 CARBON 10K 5% 1/4W R595 1-246-521-00 CARBON 100K 5% 1/4W
R532 1-246-497-00 CARBON 10K 5% 1/4W R596 =1-246-497-00 CARBON 10K 5% 1/4W
R533: 1-246-505-00 CARBON 2K 5% 1/4W R597 =1-246-505-00 CARBON 22K 5% 1/4W
R534 =-1-246-505-00 CARBON 2K 85% 1/4W R598 1-246-505-00 CARBON 22K 5% 1/4W
R536 1-246-505-00 CARBON 2K 85% 1/4W R599 = 1-246-505-00 CARBON 22k 5% 1/4W
R537: 1-246-497-00 CARBON 10K 5% 1/4W R600 1-246-505-00 CARBON 22k 5% 1/4W
R538 1-246-505-00 CARBON 22 = 5% 1/4W R601 1-246-497-00 CARBON 10K 85% 1/4W
R539 1-246-505-00 CARBON 22k = 5% 1/4W R602 1-246-521-00 CARBON 100K 5% 1/4W
R540 1-246-491-00 CARBON 5.6K 5% 1/4W R603 1-246-505-00 CARBON 22K 5% 1/4w
R541 1-246-497-00 CARBON 10K 5% 1/4W R604 1-246-505-00 CARBON 22K 5% 1/4W
R542 =1-246-505-00 CARBON 22% =—5% 1/4W R605 1-246-513-00 CARBON 47K = 5% 1/4W
R543: 1-246-505-00 CARBON 2x 5% 1/4W R606 1-246-497-00 CARBON 10K = 5% 1/4W
R544 1-246-505-00 CARBON 22% 5% 1/4W R607 = 1-246-515-00 CARBON 56K 5% 1/4W
R545 1-246-497-00 CARBON 10K 5% 1/4W R610 =1-246-481-00 CARBON 2.2K 5% 1/4W
R555 1-246-505-00 CARBON 2K 85% 1/4W R612 =1-246-505-00 CARBON 22K 5% 1/4u
R556 1-246-505-00 CARBON 2K 5% 1/4W R613 = =1-246-505-00 CARBON 22K 5% 1/4
R557 = 1-246-505-00 CARBON 2x 5% 1/4W R614 = 1-246-505-00 CARBON 22K = 5% 1/4W
R558 1-246-497-00 CARBON 10K 5% 1/4W R615 1-246-497-00 CARBON 10K = 5% 1/4W
R559 1-246-505-00 CARBON 2K 85% 1/4W R616 =1-246-505-00 CARBON 220 = 5% 1/4wW
When indicating parts by refer-
ence number, please include
the board name.
