SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC

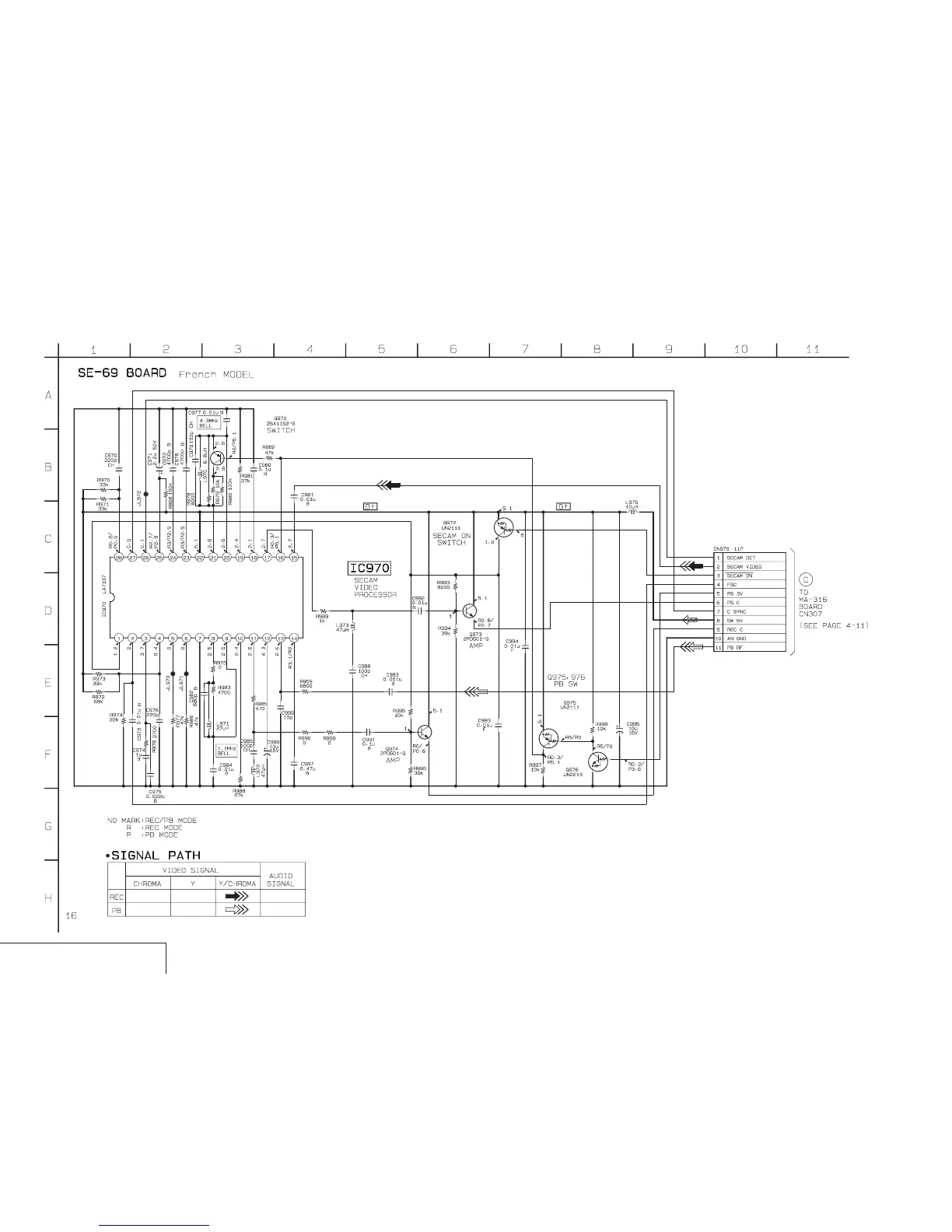

SE-69 (SECAM VIDEO SIGNAL PROCESS) SCHEMATIC DIAGRAM
— Ref. No.: SE-69 Board; 2,000 Series —
4-33 4-34
SECAM VIDEO SIGNAL PROCESS
SE-69
MODE VREF1 IREF1 REC-OUT
REC-IN
REG PB-IN
PB-OUT
LIN EXC
IREF4
VREF4
PB-H
CLK IN GND
Vcc
S/H C1 S/H C2
SYNC-IN
DET C
AFC FILTER
SECAM-DET OUT
SYNC GATE TIMING
AGC FILTER
BGP TIMING
4.3MHz BELL
4.3MHz OFFSET
1.1MHz OFFSET 1.1MHz BELL
