Sony SLV-E880EG - Page 4

SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC

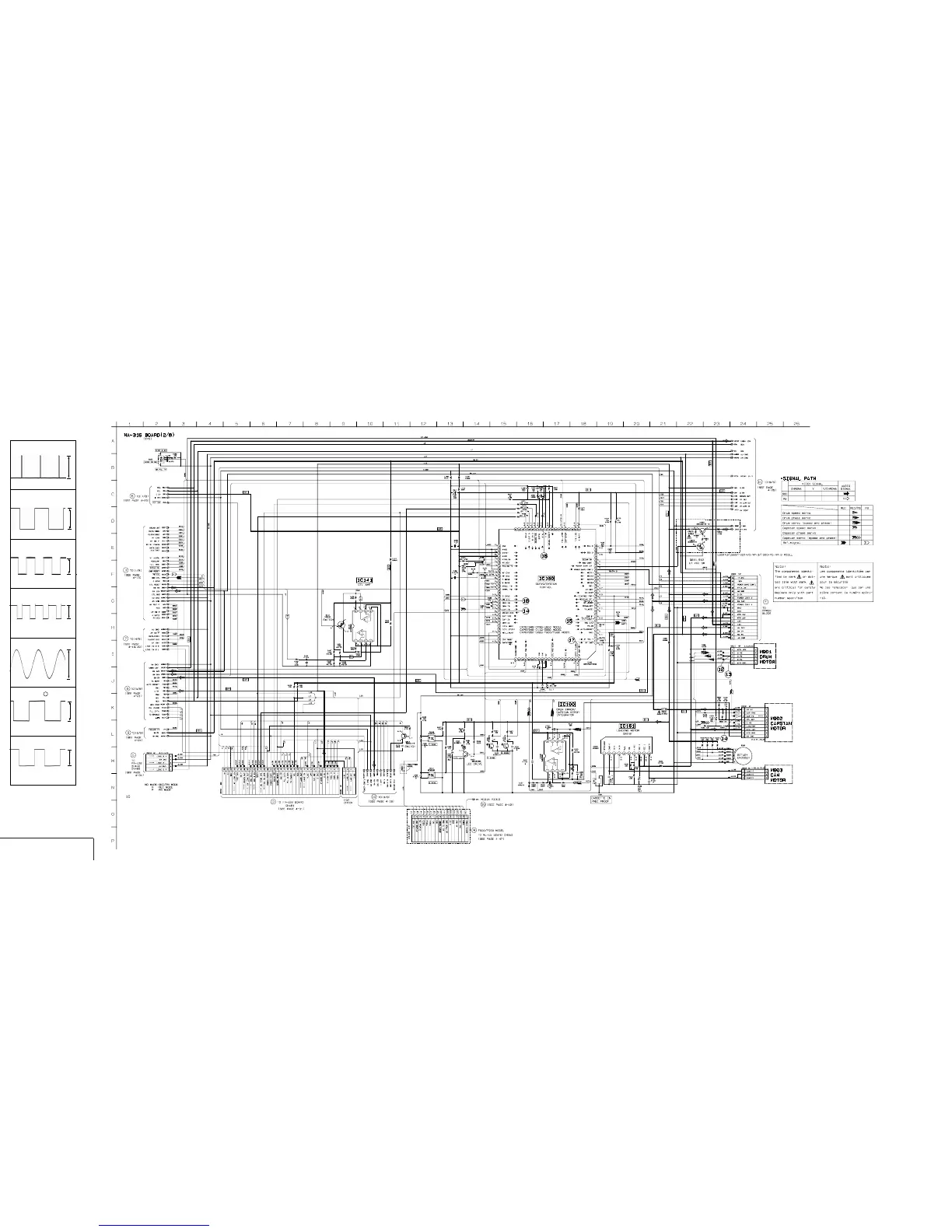

• See page 4-9 for MA-316 BOARD printed wiring board.MA-316 (SERVO/SYSTEM CONTROL) SCHEMATIC DIAGRAM
— Ref. No.: MA-316 Board; 2,000 Series —
4-14 4-15 4-16
SERVO/SYSTEM CONTROL
MA-316 (2/8)
MA-316 BOARD (2/3)
!™ CN101 3 REC/PB
!£ CN101 4 REC/PB
!¢ CN102 3, IC160 &º
REC/PB
5Vp-p
758Hz
!∞ IC160 7 REC/PB
4Vp-p
25Hz
!§ IC160 $™ REC/PB
4Vp-p
5Vp-p
25Hz
16MHz
!¶ IC160 1, REC/PB
!• IC160 ^¶ REC/PB
5Vp-p
300Hz
100
5Vp-p
25Hz
5Vp-p
25Hz
