SLV-E850B/E850UX/E880EG/F900B/F900NP/F900UX/F900VC/F990B/F990NP/F990UX/F990VC

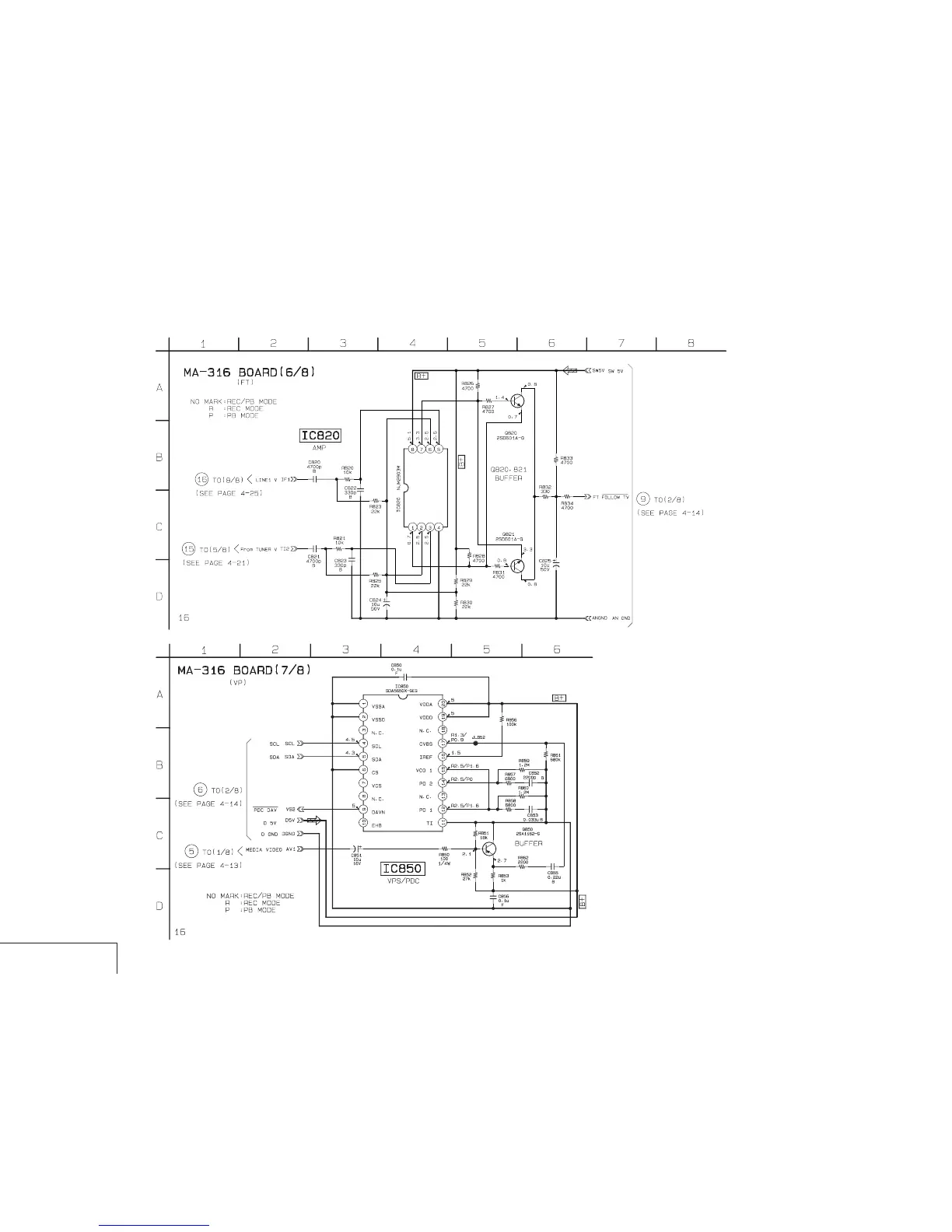

MA-316 (FOLLOW TV, PDC, VPS) SCHEMATIC DIAGRAM
— Ref. No.: MA-316 Board; 2,000 Series —
• See page 4-9 for MA-316 BOARD printed wiring board.
4-23 4-24
FOLLOW TV, PDC, VPS
MA-316 (6/8), (7/8)
A OUTPUT A– INPUT A+ INPUT
B OUTPUT
B– INPUT B+ INPUT
GND
V
