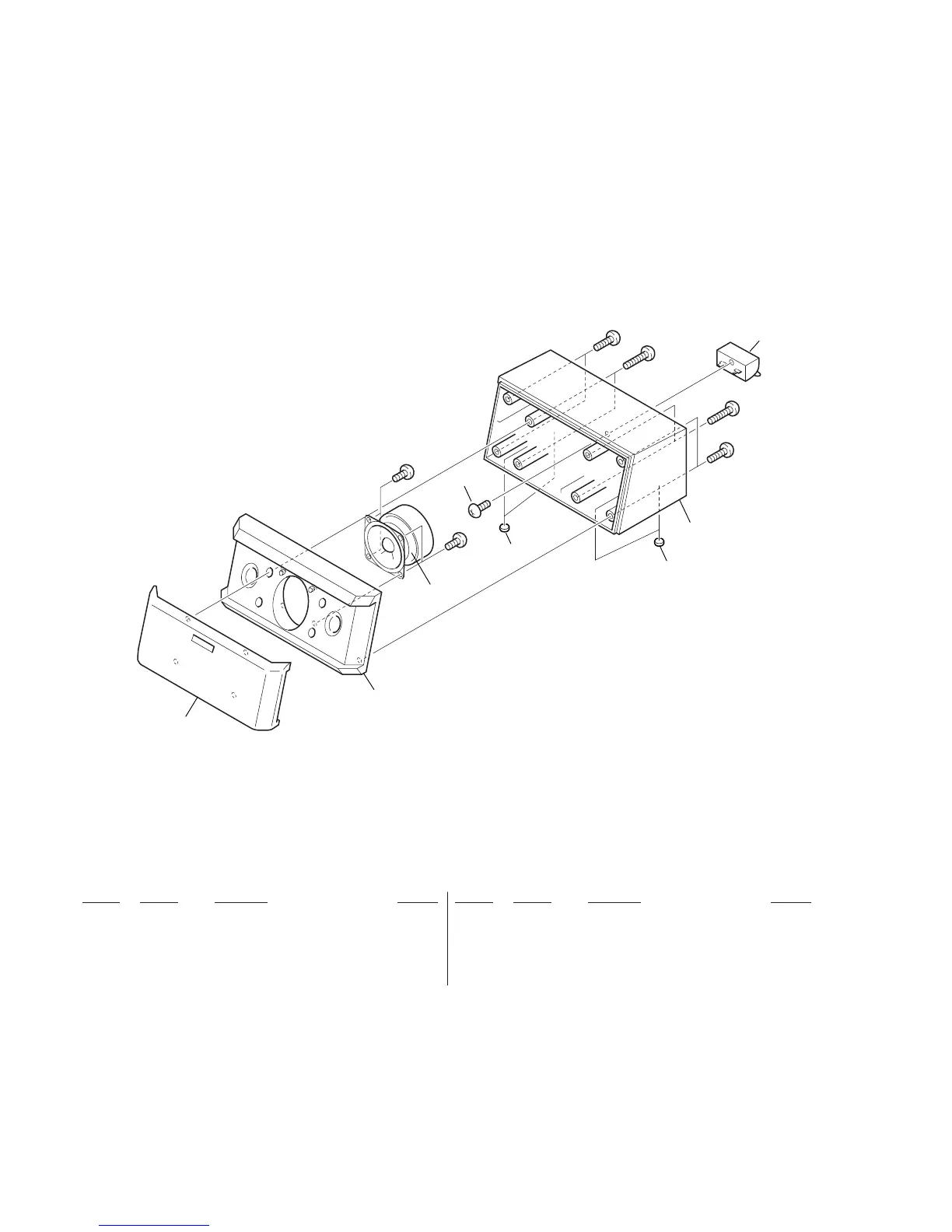

EXPLODED VIEW AND PARTS LIST
NOTE:
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
(1) SS-CT170
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
2
6
5
3
4
1
SP1
#1
#2
#1
#2
#3
#3
4
1 X-4952-724-2 FRAME(CN) ASSY, GRILLE
2 4-227-264-01 PANEL(CN), FRONT
3 1-537-775-12 TERMINAL BOARD
4 4-982-339-21 FOOT
5 4-224-542-01 SCREW(4X14)
6 4-227-265-02 CABINET (CN)
SP1 1-529-623-11 SPEAKER (8cm)
#1 7-685-663-79 SCREW +P4X16 TYPE2 NON-SLIT
#2 7-685-165-11 SCREW +P4X25 TYPE2 NON-SLIT
#3 7-685-661-79 SCREW +P4X12 TYPE2 NON-SLIT
