SS-CT6/SC6/TS6/TS7/WS6
2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SS-CT6

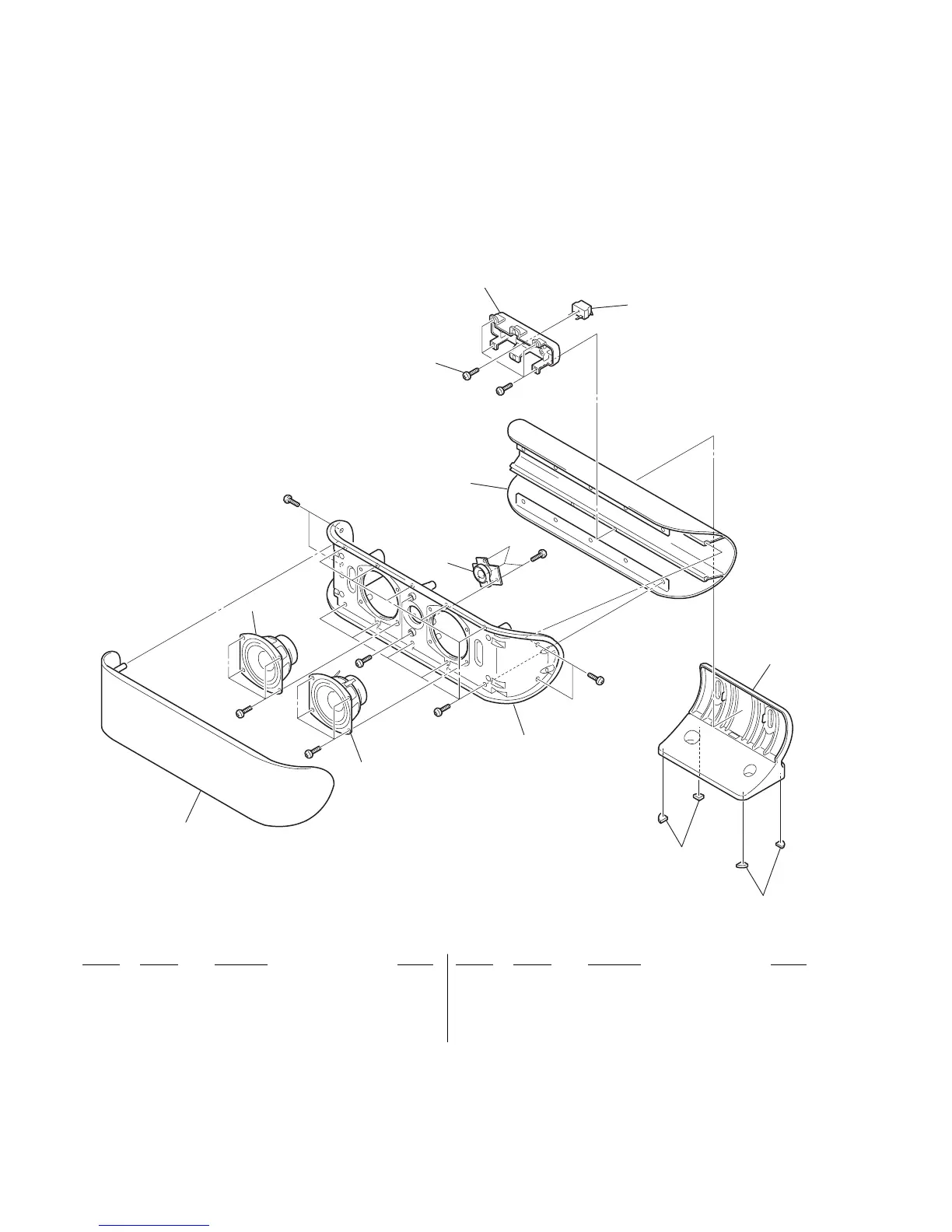

EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference number
in the exploded views are not supplied.
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
1 X-4955-909-1 FRAME ASSY, GRILLE
2 4-249-787-01 BUFFLE PANEL(CENTER)
3 4-249-784-01 SPEAKER CABINET (CT)
4 1-694-836-11 TERMINAL, SPEAKER
5 4-249-793-01 STAND (CT)
6 4-246-659-01 FOOT (STAND)
SP1 1-825-592-11 SPEAKER (7cm)
SP2 1-825-591-11 SPEAKER (1.5cm)
#1 7-685-547-14 SCREW +BTP 3X10 TYPE2 N-S
1
#1
#1
#1
#1
#1
#1
#1
#1
SP1
SP2
SP1
2
3
4
not supplied
not supplied
5
6
6
To Next Page
