Sony SS-GN800 - EXPLODED VIEWS; SPEAKER (20 cm) (GN800); SPEAKER (8 cm) (GN800); SPEAKER (8 cm) (GN88 D)

2
SS-GN800/GN88D
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––

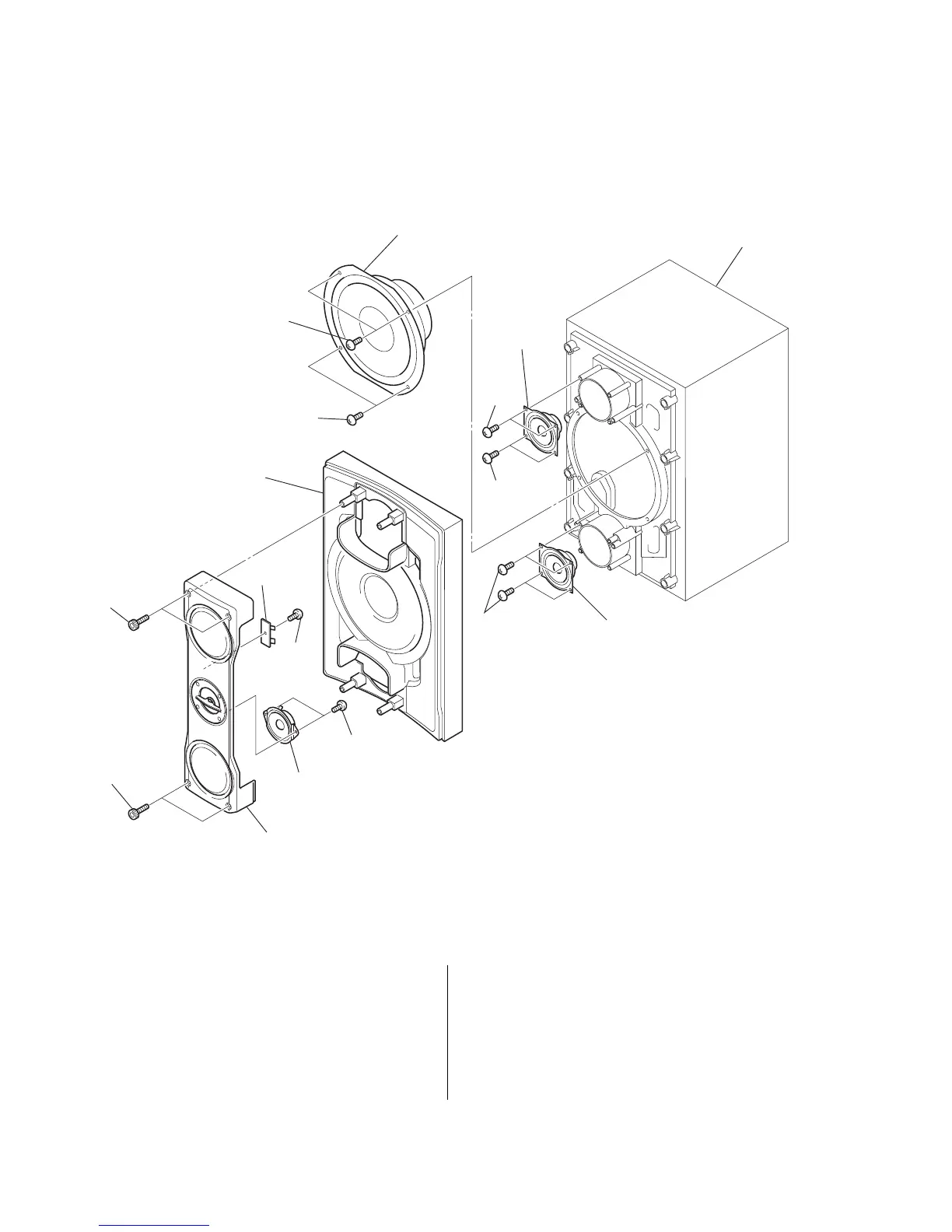

EXPLODED VIEWS
3
3
3
3
3
4
4
SP3
SP4
SP1
SP2
not supplied
not supplied
2
2
5
1
NOTE :
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “ * ”are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remark
––––––– ––––––– ––––––––– ––––––
1 A-4736-148-A SUB PANEL ASSY
2 4-984-567-01 HEXAGON SCREW (M4X20)
3 4-874-614-21 SCREW (1) (3.5X14), TAPPING
4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
5 A-4736-152-A FRONT PANEL ASSY
SP1 1-825-268-11 SPEAKER (20cm) (GN800)
SP1 1-825-269-11 SPEAKER (20cm) (GN88D)
SP2 1-825-266-11 SPEAKER (8cm) (GN800)
SP2 1-825-267-11 SPEAKER (8cm) (GN88D)
SP3 1-825-266-11 SPEAKER (8cm) (GN800)
SP3 1-825-267-11 SPEAKER (8cm) (GN88D)
SP4 1-529-907-11 SPEAKER (5cm)
