SS-GN880
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks

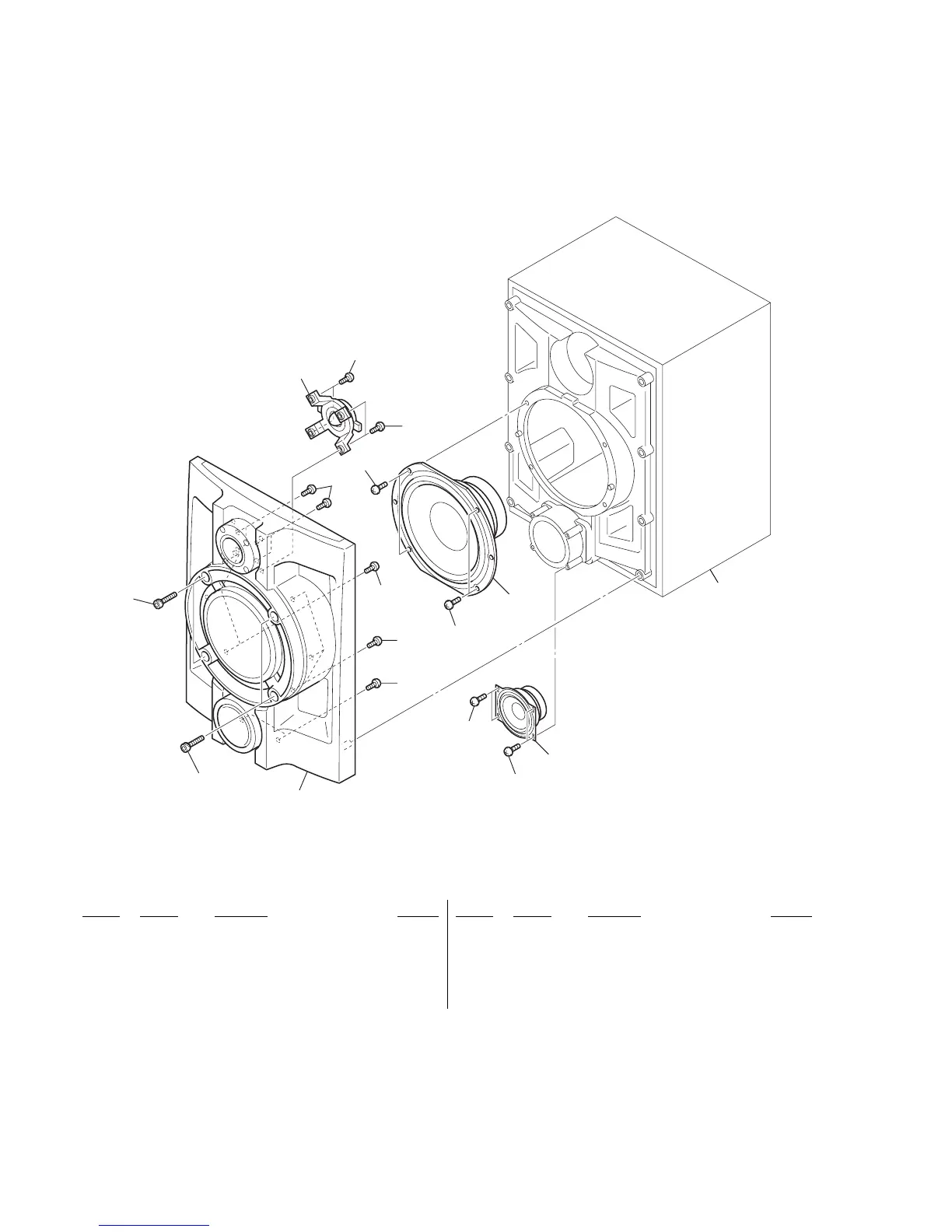

EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
1
1
2
3
3
3
3
4
5
5
6
6
6
6
7
8
not supplie
d
• The mechanical parts with no reference number in
the exploded views are not supplied.
1 4-984-567-01 SCREW (4X20), TAPPING
2 A-4713-704-A FRONT PANEL ASSY
3 4-951-620-01 SCREW (2.6X8), +BVTP
4 1-825-765-11 SPEAKER (2.5cm)
5 4-874-614-71 SCREW
6 4-874-614-21 SCREW (1) (3.5X14), TAPPING
7 1-825-763-11 SPEAKER (20cm)
8 1-825-764-11 SPEAKER (8cm)
